Device Description
2.3.1 Adjustable coils
Adjustable coils adapt themselves in diameter and length to suit the relevant tool and chuck.
Elements made of a magnetically conductive material (ferrite) can be opened and closed like a
camera iris.
The coil itself comprises a fixed and a moveable part. The distance between the two parts of the
coil depends on the length of the clamping area of the chuck. This ensures that only the clamping
region of the chuck is heated. Heating and cooling are significantly faster than with rigid coils.

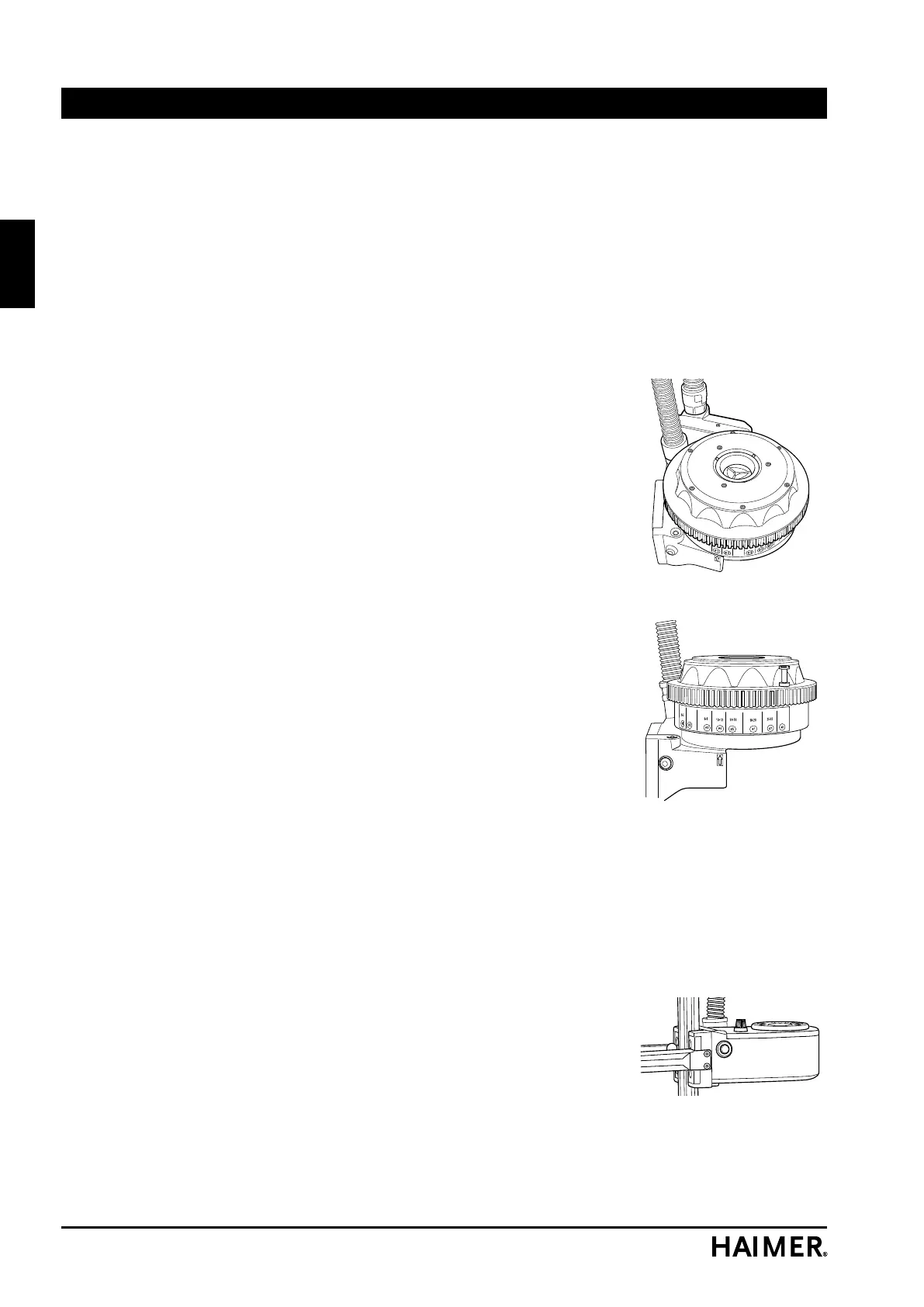

2.3.1.1 VS 32 M
The VS 32 M coil is the top product in induction technology. It adapts
itself fully automatically to the size of the chuck.
The ferrite elements are arranged at an angle, like a collar. They lie on
the chuck and are brought as close as possible to the tool.
The adjustment is done with the aid of two servo-motors, one for the
aperture diameter and the other for the coil clearance.
The coil can be used from the Power Clamp Economic type onwards.
2.3.1.2 VS 32 H
The VS 32 H functions in just the same way as the VS 32 M. However,
it is adjusted manually by means of a rotary disk.
For special chucks (such as those with a large diameter but a short
length) the aperture diameter and coil length can also be selected
independently.
The coil can be used from the Power Clamp Economic type onwards.
2.3.2 Coils with stop disks
In this variation there is only one coil winding. It is adapted to suit
different shrink fit chucks by using stop disks that can be quickly and
easily inserted into the coil.
The stop disks bring the coil and the shrink fit chuck together to the
correct position and guide the magnetic field into the chuck.
2.3.2.1 V 2008
The induktor has five stop disks that can be swapped over easily by
means of a bayonet-type connector.
The stop disks are provided with an additional gripper ring.
V 2008
