HAIMER Basic - Power Clamp Economic, Economic Plus

Operating Manual
15
POWER CLAMP
English
Quality Wins.
© 2021/09 Haimer POWER CLAMP

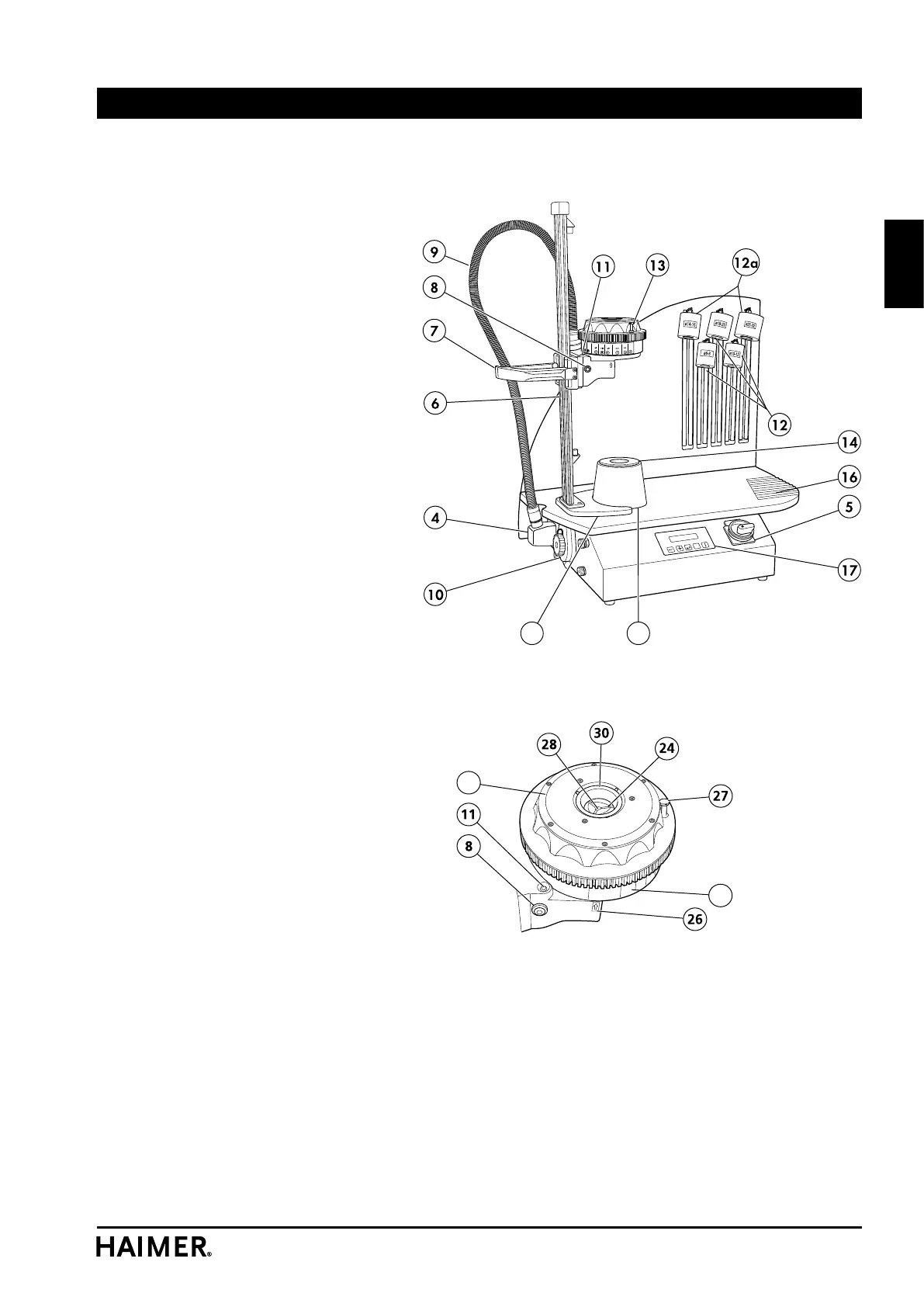

Device Description
4 Plug connector coil
Ø 3 - 32 mm
5 Mains switch
POWER CLAMP
6 Linear guide
7 Handle with brake
8 Start key
9 Inductor energy cable
10 Spring tensioner
11 Operational display lamp
12 Cooling body
12a Cooling body with
quick-change connector
13 Inductor
14 Tool holder
16 Tool deposit
17 Operation and display field
23 Rotary disk
24 Adjusting segments
25 Adjustment scale
26 Reference arrow
27 Locking pin
28 Height stop
30 Ferrite ring
31 Cooling body LED display
42 Chuck holder
43 Stop clamp
