HAIMER Basic - Optional Equipment; Keypad and Display

Operating Manual
17
POWER CLAMP
English
Quality Wins.
© 2021/09 Haimer POWER CLAMP
Device Description

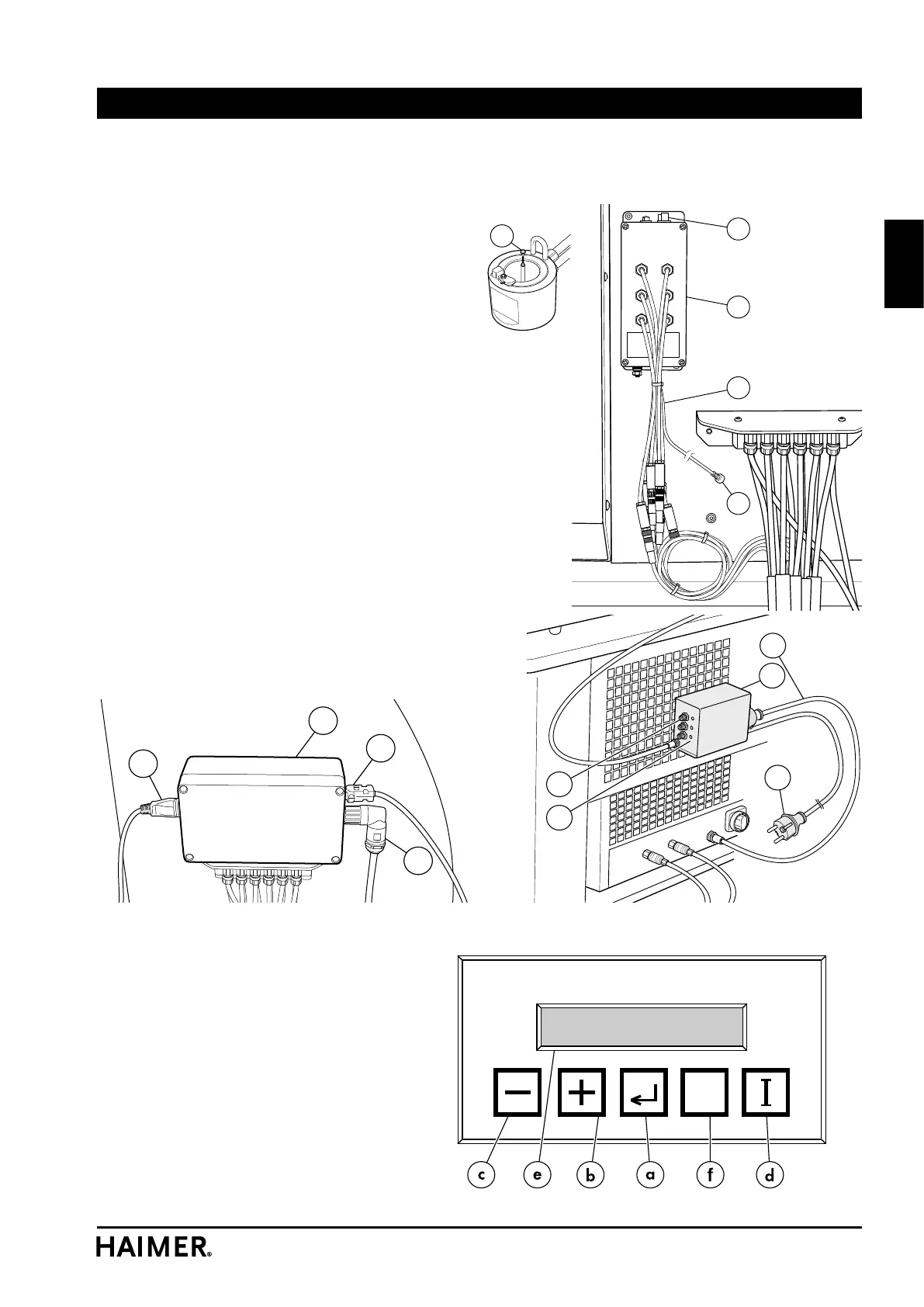

2.5.5 Optional equipment
for Power Clamp Economic, Economic Plus, Comfort, Profi Plus and PRESET
31 Cooling body LED display
32 Motor connection
33 Motor controller for automatic
coil VS 32 M
34 Controller for cooling body with
temperature display
35 Connecting cable for cooling body with
temperature display
36 Interface RS 232
37 Controller power supply
38 Interface to motor controller for coil VS
32 M (re item 67)
54 Cooling manager Premium
56 SPEED COOLER power cable
57 Cooling manager power cable
58 Controllers power supply
59 Status LED
67 Interface to motor controller for coil VS
32 M (re item 38)
68 Mains connection motor controller
2.5.6 Keypad and Display
a Enter / Confirm key
b Plus key
to increase the tool diameter
c Minus key
to reduce the tool diameter
d Start key
e LCD display
f ESC key
ESC
32
33
67
68
54
56
57
58
59
X4 X5 X6 X1 X2 X3
35
36
34
37
31
