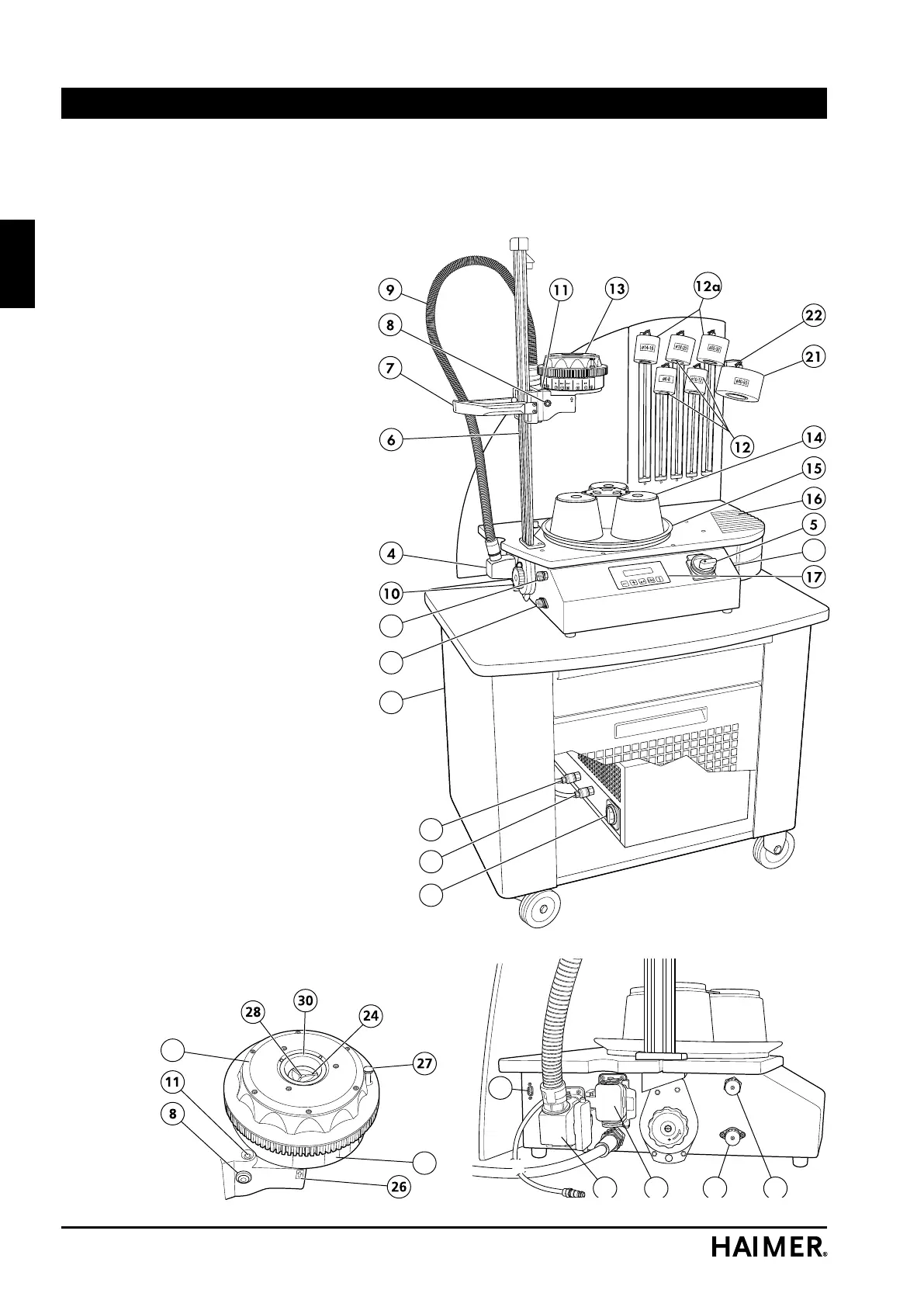

2.5 Device overview
2.5.1 Power Clamp Comfort and Profi Plus
Device Description
25
23
38
4029420
1 Mains switch SPEED COOLER
2 Circulation line return
3 Circulation line advance
4 Plug coil Ø 3 - 32 mm
5 Mains switch POWER CLAMP
6 Linear guide
7 Handle with brake
8 Start key
9 Inductor energy cable
10 Spring tensioner
11 Operational display lamp
12 Cooling body
12a Cooling body with quickchange
connector
13 Inductor
14 Tool holder
15 Turntable
16 Tool deposit
17 Operation and display field
18 Trolley (optional)
20 Plug coil Ø 40 - 50 mm
(only POWER CLAMP Profi Plus)
21 Cooling body Ø 40 - 50 mm HD
22 Bracket for additional cooling body
(option)
23 Rotary disk
24 Adjusting segments
25 Adjustment scale
26 Reference arrow
27 Locking pin
28 Height stop
29 Sleeve cooling manager
30 Ferrite ring
31 Cooling body LED display
40 USB interface
3
2
1
41
40
29
18
