4.2.4 Retrofit cooling body Ø 40 - 50 HD
(option)

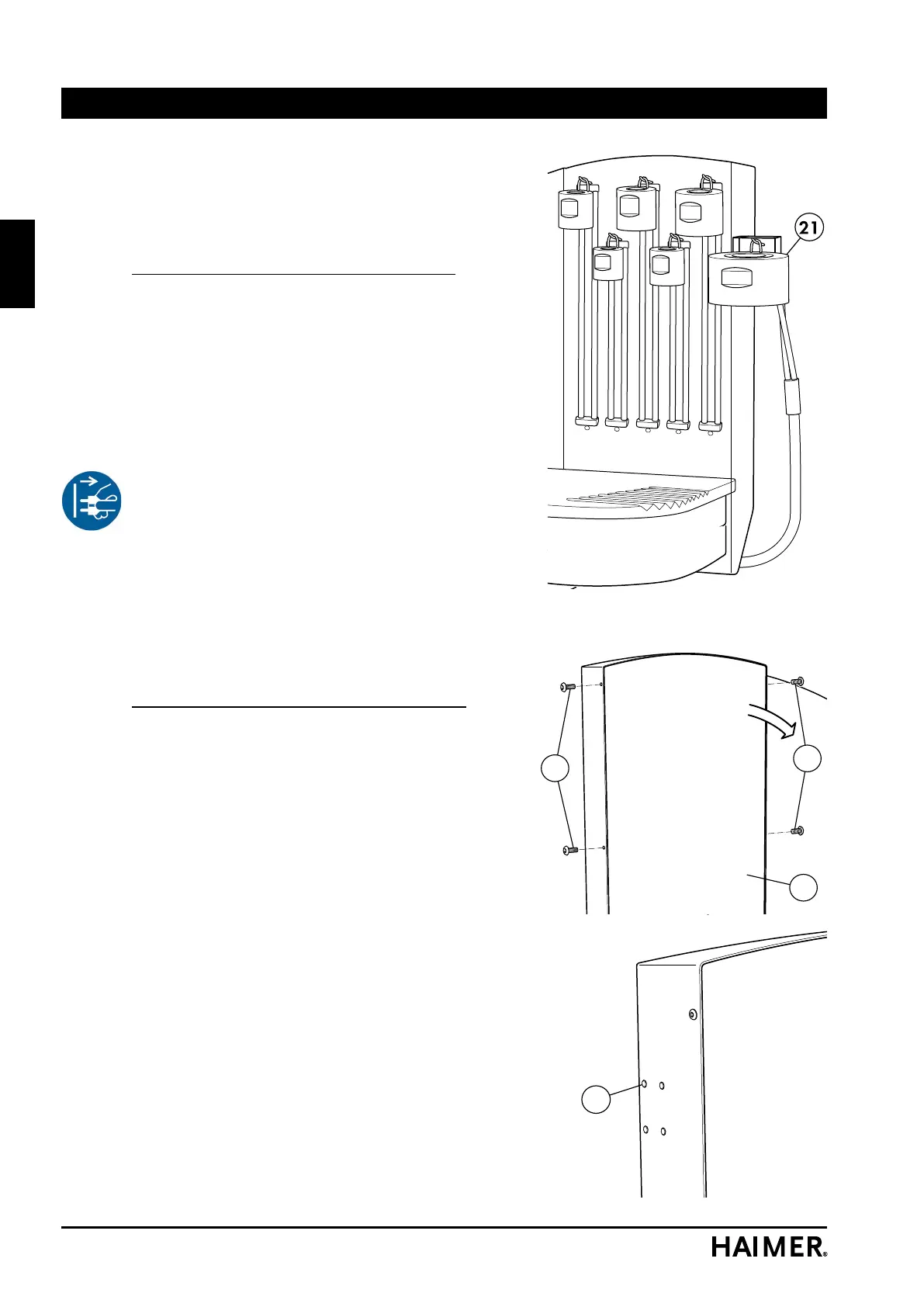

The cooling body Ø 40 - 50 HD (21) can be retrofitted
as an option.
The mounting kit contains the following parts:
1x Length of hose with pre-assembled screw fittings
1x Mounting bracket T-piece, with fastening material
1x Plug-on bracket with hook
1x Cooling body Ø 40 - 50 HD
1x Drilling jig, stainless steel sheet
1x Cable tie
Important! Before starting assembly work, make
sure that cooler and shrink fit machine are both
switched off, or are disconnected from power supply.
Mount the bracket as shown, at the right side of the hose
cabinet on the shrink fit machine.
Mounting instructions
Assemble bracket for additional cooling body:
• On the hose cabinet, remove the four upper screws
(71) that keep the rear panel in place.
Important! From year of manufacture 2015 on-
ward, no drilling is required! Each hose cabinet
has holes that are closed with plastic plugs (72).
ø6-8
ø14-18
ø10-12
ø18-20
ø25-32
ø40-50 HD
70
71
71
72
