Start-up
4.1.2 SPEED COOLER

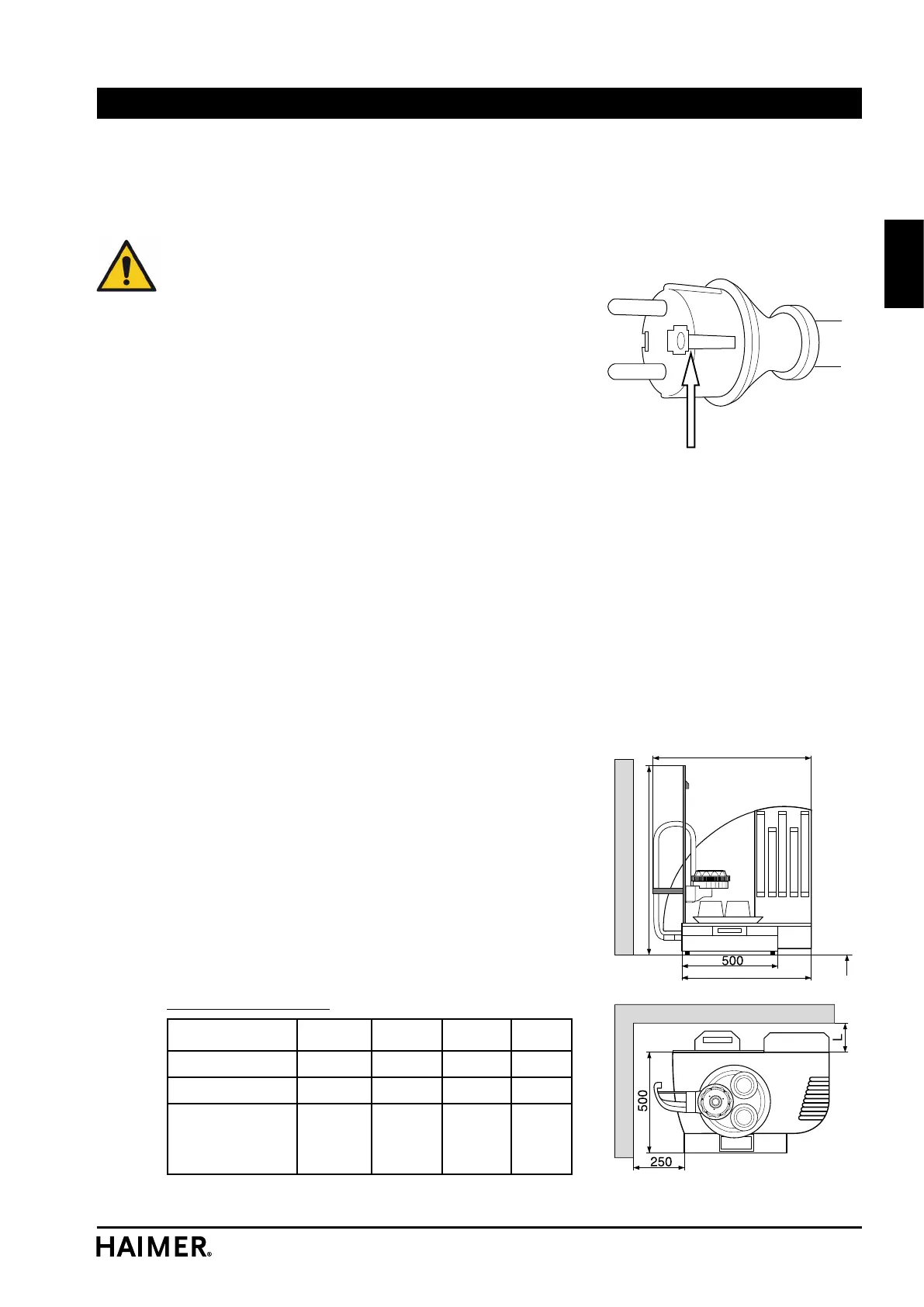

The power connection must be made as a 3-pole connec-
tion. The phase, neutral and protective earth conductor
are to be connected.
Please note the following:
• Ensure that the power supply voltage corresponds with
that specified on the rating plate.
• The power connection (wall socket) provided by the
customer must have the protective earth contact con-
nected properly.
• When using adapter plugs, check carefully to ensure
that the protective earth conductor connection goes
all the way through to the socket. Often the protective
earth conductor is not connected in adapter plugs.
• If the plug is replaced, the green/yellow core is to be
connected to the protective earth conductor.
• Fuses to be provided by the customer: 15 - 16 Amps
• If making the connection via a transformer, ensure that
the protective earth conductor connection continues
all the way through from the machine plug up to the
power supply outlet provided by the customer.
4.2 Setup and assembly
The POWER CLAMP and the SPEED COOLER must be set
up on a suitably stable substrate that is horizontal.
In particular if the unit is mounted on a roller cabinet or
other mobile chassis, care must be taken that the roller unit
is adequately secured against rolling away. The brakes
on the rollers must always be applied except when the
roller unit is being moved.
The roller unit may be moved only on level ground.
During operation, the devices are not to stand at an angle,
be tipped or subjected to vibration.
4.2.1 POWER CLAMP
Space required in mm:
Type B
1
B
2
H
1
L
Basic 670 500 890 0
Economic 870 700 1000 0
Economic Plus
Comfort, Profi
Plus, Preset
870 700 1000 150
Optimum table height, all versions: H
2
= approx. 800 mm
