Operation
5.3.6 Heating the shrink fit chuck
Safety notes:
The inner wall of the coil is made of a heat-resistant plastic.
However, heat radiation and direct contact with the heated
chuck can damage the plastic. In an extreme case the coil
winding could be exposed as a result.
For that reason note the following:
• The inductor must be lifted from the hot shrink fit chuck
immediately after completing the shrinking process.
Otherwise the inner wall of the coil could melt due to
the radiated heat.
• Under no circumstances allow the hot shrink fit chuck
to touch the inner wall of the coil.
• Check each time before use that the inner wall of the
coil is still undamaged. if necessary, send the coil back
to the manufacturer.
The shrink fit chuck will naturally become very hot in
places. There is a risk of burns if you touch those hot
points. Do not touch the hot shrink fit chuck. Always
leave it in the holder until it has cooled down again.

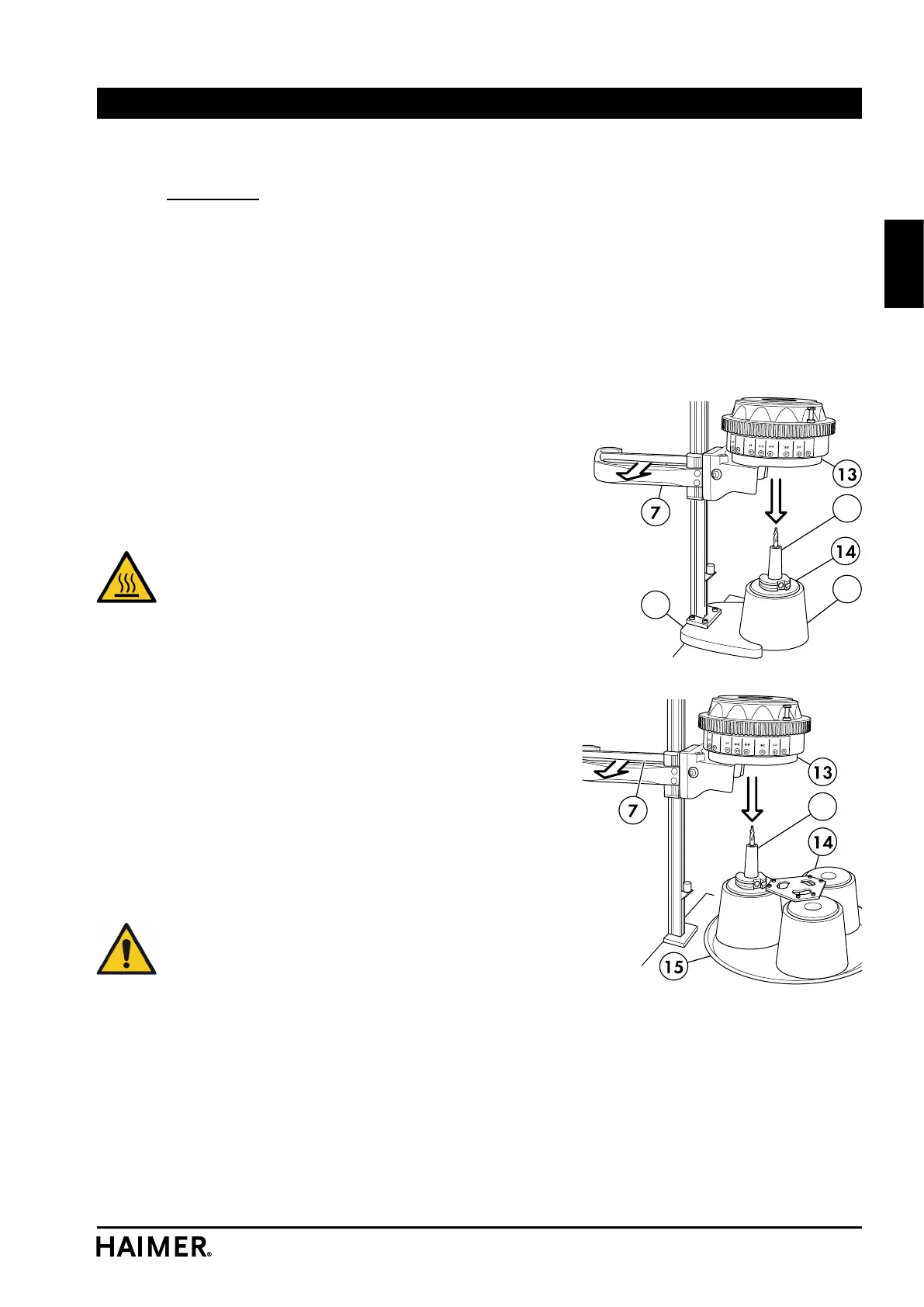

• Place the shrink fit chuck (52) in the chuck holder (14).
• Push the chuck support (42) with the shrink fit chuck
into the stop clamp (43) underneath the coil (13).
Comfort version:
Turn the shrink fit chuck (52) with the turntable (15)
underneath the coil (13). Make sure that the turntable
(15) is locked in position.
• Check that the inner side of the coil is not damaged
(see the Safety notes above).
• Release the brake of the coil slide by pulling the
handle (7) forward and slowly lower the coil (13)
onto the shrink fit chuck until it lies in place properly.
Caution: Parts of the coil are made of brittle material.
Set the coil down gently onto the chuck. Otherwise
the coil could be damaged.
If the stop elements of the coil do not come up to the
stop on the chuck, check whether it is an ultra-short
chuck.
52
43
42
