Device Description

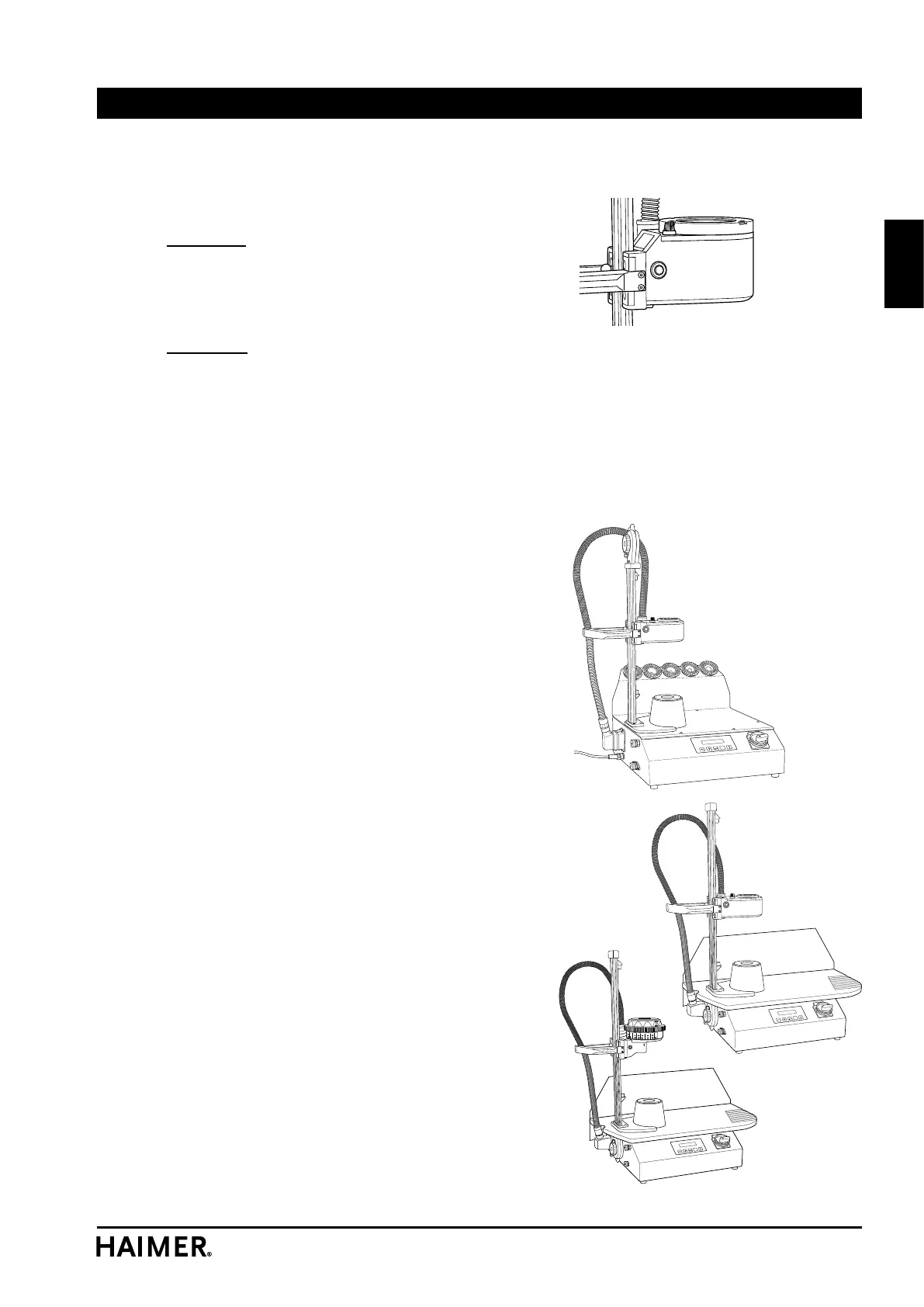

2.3.2.2 Coil 13 kW HD and 20 kW HD
These coils are used to shrink on and unshrink
large tools of up to Ø 50 mm with HD chucks.
13 kW HD
Standard performance coil for shrink fit machines
POWER CLAMP Economic Plus NG and POWER
CLAMP Comfort NG.
20 kW HD
Large tools of up to ø 50 mm can be shrunk on
and unshrunk with this coil. A shrink fit unit with an
extremely high power rating (20 kW) is required
to ensure secure operation with this coil, the Power
Clamp Profi Plus.
The coil can heat up under very heavy loads. For
that reason it has an additional supply line for
cooling air that can be connected up as required.
2.4 Unit variations
POWER CLAMP Clamp Basic
(coil V 2008)
The full range of tools can be shrunk using the
POWER CLAMP Basic: HM and HSS from 3 to 32
mm. Cooling can be done with the AIR COOLER
(option). No further configuration of the unit is
possible.
POWER CLAMP Economic
(coil V 2008),
POWER CLAMP Economic NG
(coil VS 32 H or VS 32 M)
The POWER CLAMP Economic is the entry-level
version with the adjustable coil feature. It has
powerful electronics and easy to use software for
carbide and HSS tools up to 32 mm in diameter.
A shrinking station is provided, but no cooling.
The Economic version can be upgraded to the
Economic Plus by means of an add-on set.
13 kW
20 kW
