Operation

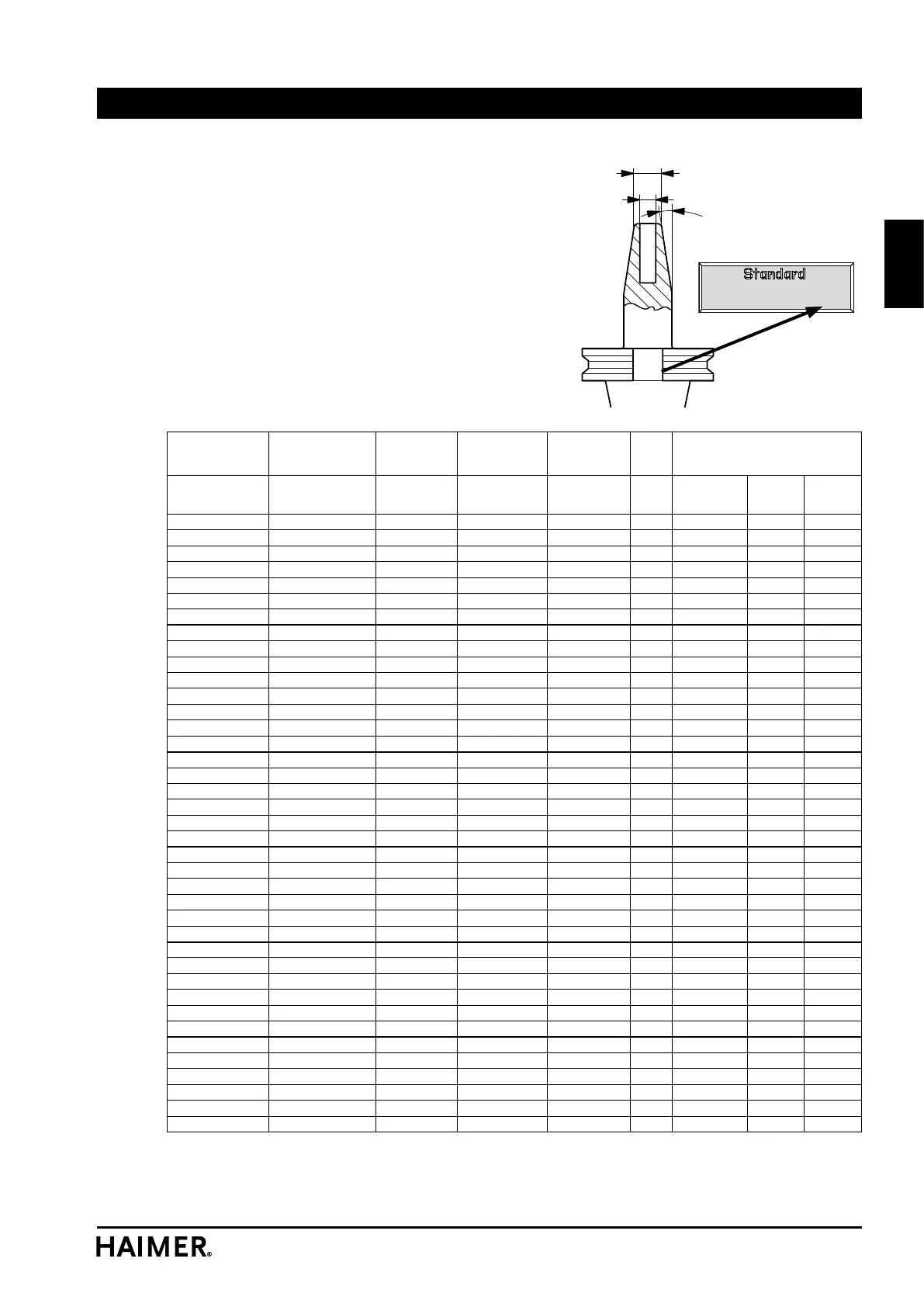

5.3.3 Selecting the size at the display.
The performance parameters of the shrink fit machine
must be adapted to the geometry of the shrink fit chuck
(esp. the hole and outside diameter). This is easiest with
HAIMER shrink fit chucks via a code, which is visible
both on the chuck and on the display. The parameters
can also be found quickly by selecting the groups,
followed by the sizes on the display.
Only part of the parameters are available depending
on the device features (performance class, connected
coil).
Group Size
Shrink-
code
Ø D
1
Ø D
2
α
suitable
Coil types
VS32-H
VS32-M
V2008
13/20
kW
Standard Ø3-5
A1
Ø3-5 Ø10 4,5° X X
Standard Ø6-8
A2
Ø6-8 Ø21 4,5° X X
Standard Ø10-12
A3
Ø10-12 Ø24 4,5° X X
Standard Ø14-16
A4
Ø14-16 Ø27 4,5° X X
Standard Ø18-20
A5
Ø18-20 Ø33 4,5° X X
Standard Ø25-32
A6
Ø25-32 Ø44 4,5° X X X
Standard Ø40-50
A7
Ø40-50 Ø78 4,5°
Extension ØA12-16
B1
Ø3-6 Ø12-16 4,5° X X
Extension ØA20
B2
Ø5-8 Ø20 4,5° X X
Extension ØA25ØI 8-12
B3
Ø8-12 Ø25 4,5° X X
Extension ØA25ØI14-16
B4
Ø14-16 Ø25 4,5° X X
Extension ØA32ØI10-12
B5
Ø10-12 Ø32 4,5° X X
Extension ØA32ØI14-16
B6
Ø14-16 Ø32 4,5° X X
Extension ØA32ØI18-20
B7
Ø18-20 Ø32 4,5° X X
Extension ØA50ØI25-32
B8
Ø25-32 Ø50 4,5° X X
S-chuck Ø10S-12S
C1
Ø10-12 Ø27 4,5° X X
S-chuck Ø14S-16S
C2
Ø14-16 Ø33 4,5° X X
S-chuck Ø18S-20S
C3
Ø18-20 Ø44 4,5° X X
S-chuck Ø25S
C4
Ø25 Ø51 4,5°
S-chuck Ø32S
C5
Ø32 Ø58 4,5°
S-chuck Ø40-50
C6
Ø40-50 Ø78 4,5°
Heavy duty Ø16-20
D1
Ø16-20 Ø46 4,5° X X
Heavy duty Ø16
D2
Ø16 Ø51 4,5°
Heavy duty Ø20
D2
Ø20 Ø58 4,5°
Heavy duty Ø25
D2
Ø25 Ø63 4,5°
Heavy duty Ø32
D2
Ø32 Ø70 4,5°
Heavy duty Ø40-50
D3
Ø40-50 Ø82 4,5°
Ultra-short Ø3-5
E1
Ø3-5 Ø10 4,5° X X
Ultra-short Ø6-8
E2
Ø6-8 Ø22-23 4,5° X X
Ultra-short Ø10-12
E3
Ø10-12 Ø26,5-27 4,5° X X
Ultra-short Ø14-16
E4
Ø14-16 Ø29,5-30 4,5° X X
Ultra-short Ø18-20
E5
Ø18-20 Ø35,5 4,5° X X
Ultra-short Ø25-32
E6
Ø25-32 Ø45-45,5 4,5° X X
Mini-Shrink / \ Ø3-4 > < 1,5
F1
Ø3-4 MS sleeve 3° X X X
Mini-Shrink / \ Ø3-4 > < 3
F2
Ø3-4 MS sleeve 3° X X X
Mini-Shrink / \ Ø5 > < 1,5
F3
Ø5 MS sleeve 3° X X
Mini-Shrink / \ Ø5 > < 3
F4
Ø5 MS sleeve 3° X X X
Mini-Shrink / \ Ø6-16 > < 1,5
F5
Ø6-16 MS sleeve 3° X X X
Mini-Shrink / \ Ø6-16 > < 3
F6
Ø6-16 MS sleeve 3° X X X
Key:
/ \ = with additional shrink fit cooling sleeve for Mini Shrink
> < = wall thickness of the chuck for Mini Shrink
D
1
D
2
α
HAIMER
A 2
40.440.06
Ø 6 x 80
Standard
Ø 6-8
A2
