Start-up

Attention! Avoid direct contact with anti-freeze. Sur-

plus anti-freeze or water/anti-freeze mixtures must

be disposed of properly. They must not be placed in

domestic rubbish or released into the drains.

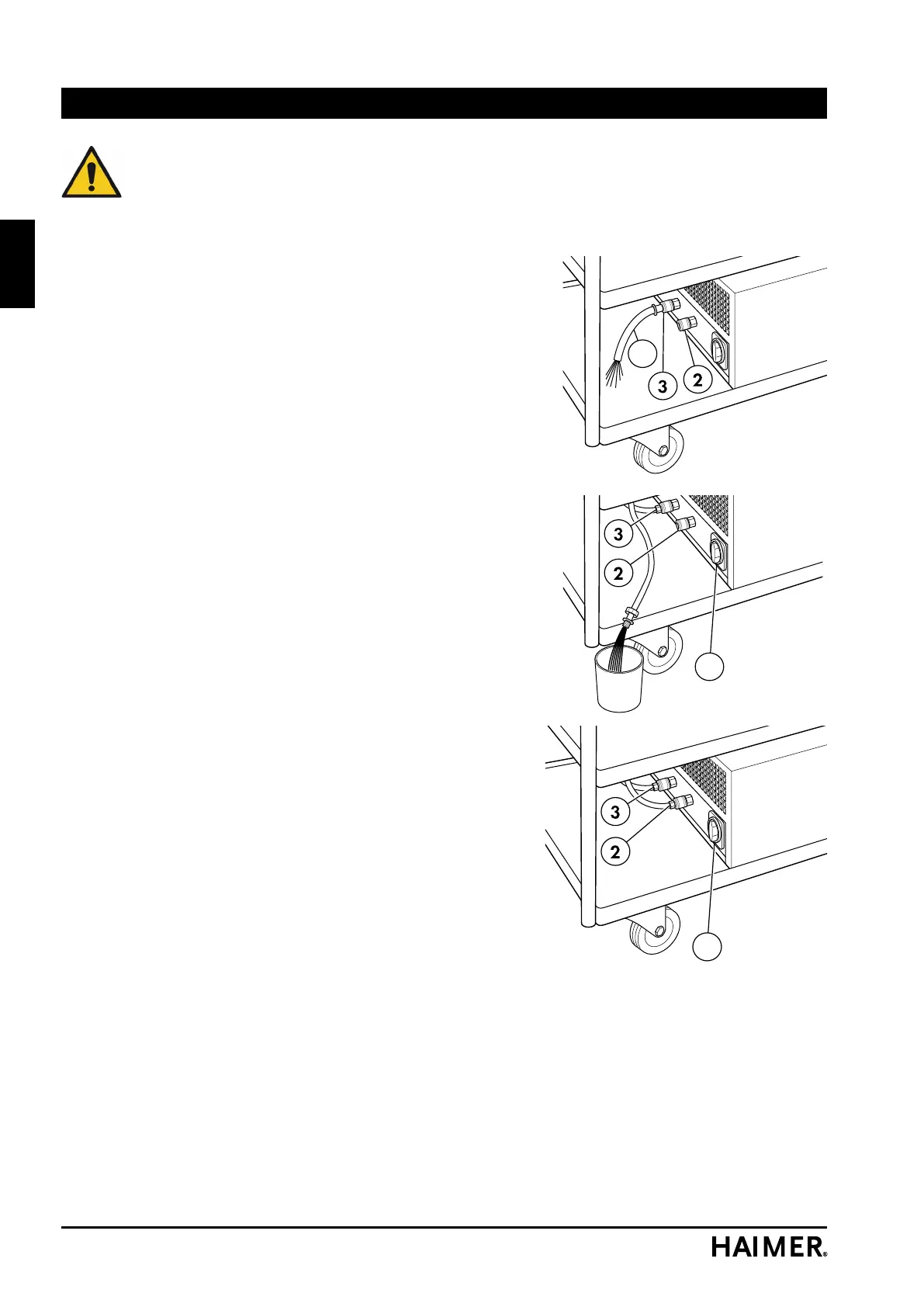

• Bleeding the SPEED COOLER:

Close the nipple with the hose section (53) (pro-

vided as standard) at the inlet (3) of the SPEED

COOLER. Do not switch the SPEED COOLER on.

The pump could be damaged if it runs dry.

Water runs from the hose after a short time.

Remove the nipple with the hose section.

• Bleeding the air from the cooling circuit:

Connect one of the two circulation lines of the POWER

CLAMP to the inlet (3) of the SPEED COOLER. The

connection is made by quick-connectors.

• Connect the power cable of the SPEED COOLER. En-

sure that the mains voltage matches the one speciﬁed

on the rating plate of the SPEED COOLER.

• Switch on the SPEED COOLER at the mains switch (1).

Water is now pumped into the cooling system. The lines

and the cooling body are thus bled.

• Wait until water comes out of the open line. Then

connect the line to the return line (2) of the SPEED

COOLER.

• Switch the SPEED COOLER off.

• Fill up the tap water in the SPEED COOLER. The cool-

ing coil in the water tank must be completely covered.

Note: The ﬁns of the air cooled condenser must be kept

clean to allow the return cooling unit to function properly.

The condenser ﬁns get more dirty and more quickly if the

ambient air contains oil in connection with dust. It is neces

sary to carry out regular cleaning as described in the section

"Service and maintenance".

As an option we offer a trolley that is optimally suitable

for setting up the two devices (see Device overview).
