POWER CLAMP Economic / Economic Plus /
Preset

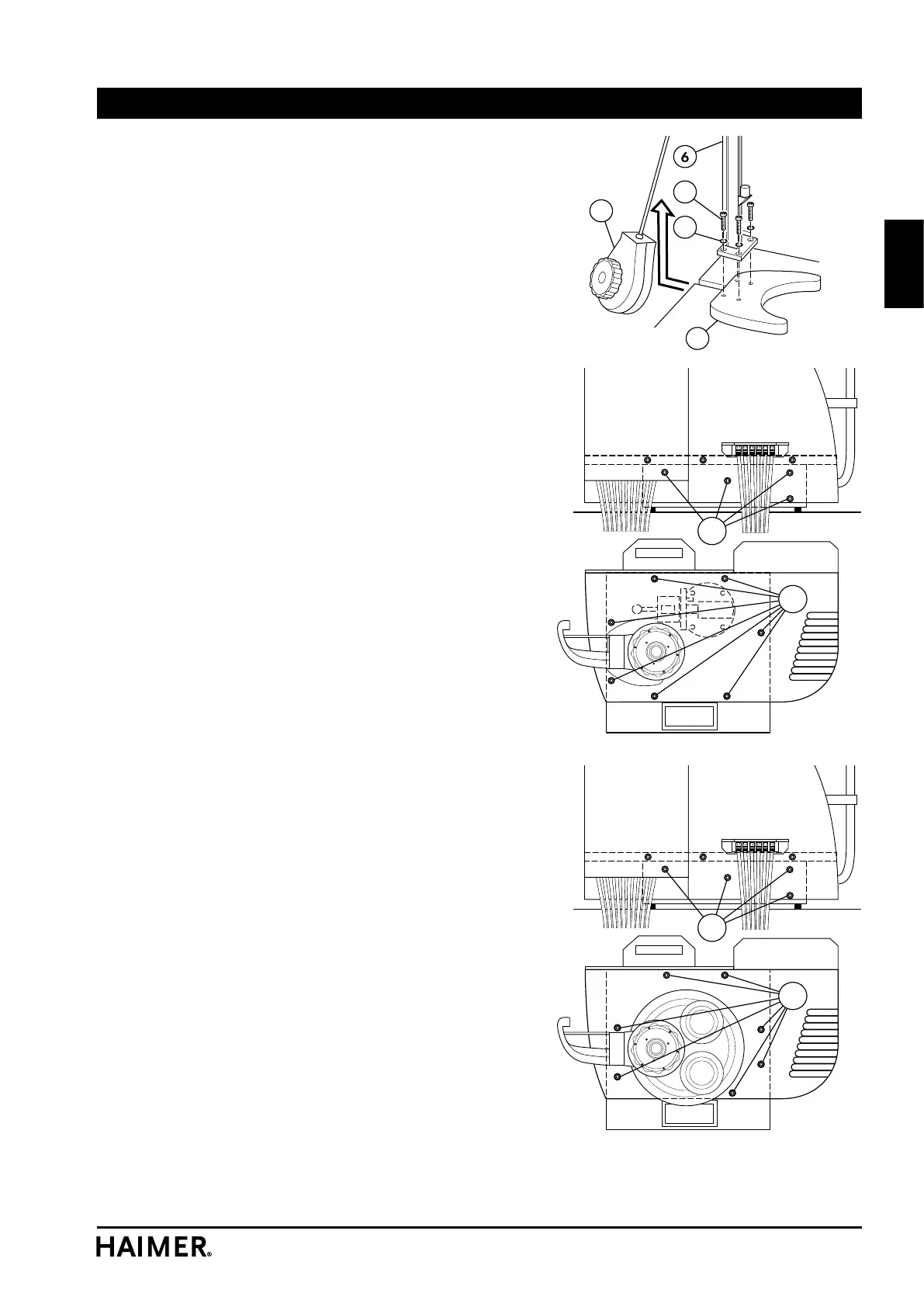

• Unplug all the electrical cables on the left-hand
side of the unit
• Detach the spring tensioner (10).
• Undo the screws (50).
• Remove the linear guide (6) and the stop clamp
(43).
• Remove the screws (70) at the back as shown.
• Remove the screws (69) of the baseplate.
The basic unit is now free and can be sent for repair
or replaced.
POWER CLAMP Comfort / Profi Plus
• Unplug all the electrical cables on the left-hand
side of the unit
• Remove the screws (70) at the back as shown.
• Remove the screws (69) of the baseplate.
The basic unit is now free and can be sent for repair
or replaced.
70
69
69
70
50
51
43
10
