Operating Manual
POWER CLAMP
English
Quality Wins.
© 2021/09 Haimer POWER CLAMP
6.01
13 kW
6.02
20 kW
6.01-6.06

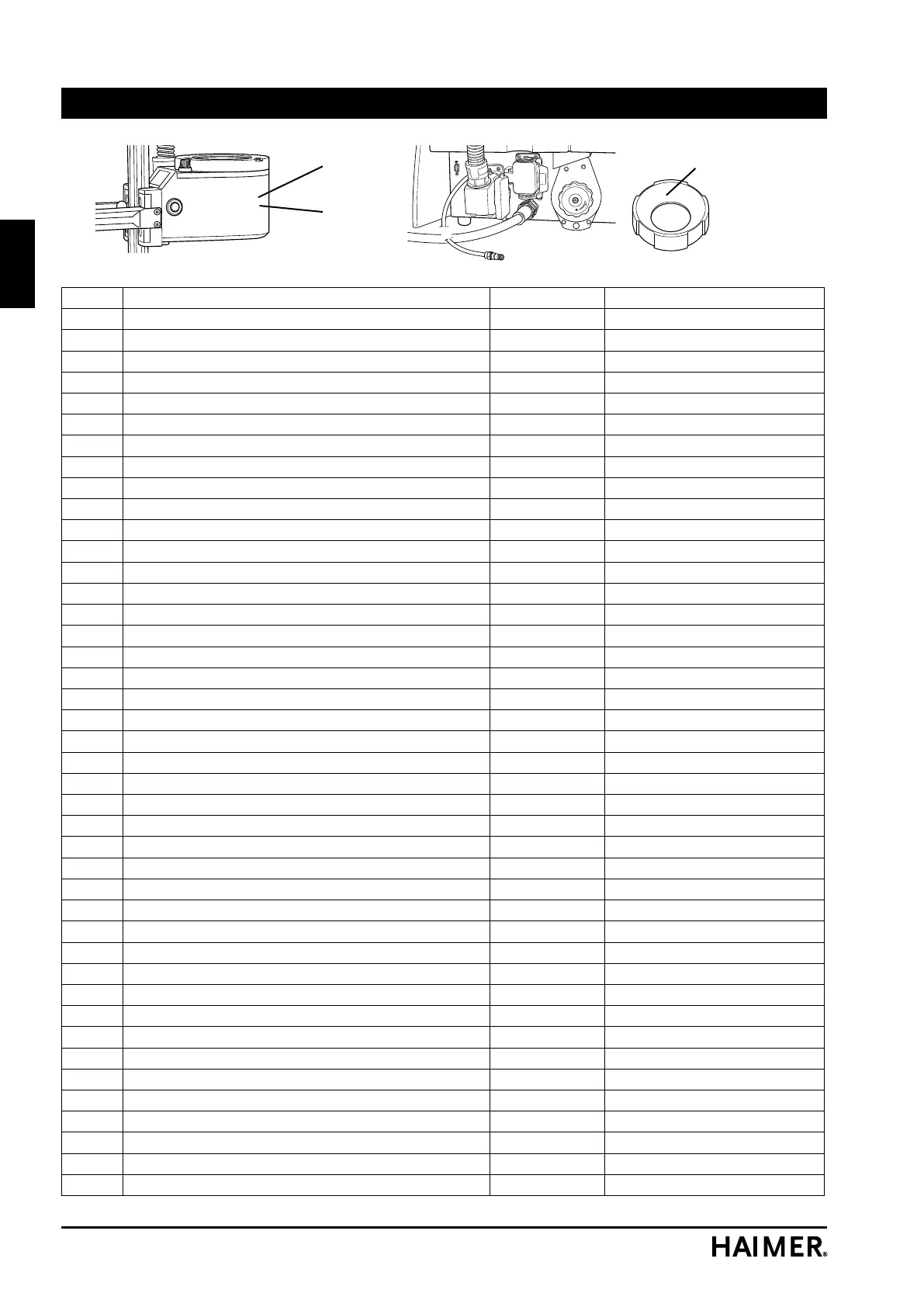

Spare Parts and Accessories
6.1 Coil 13 kW, with stop disks 80.151.30
6.2 Coil 20 kW, with stop disks 80.151.40 only for Profi Plus
6.01 Stop disk Ø 16-20 80.151.10.42 for 13 and 20 kW HD coil
6.02 Stop disk Ø 16-20 split 80.151.10.42.1 for 13 and 20 kW HD coil
6.03 Stop disk Ø 20-32 80.151.10.41 for 13 and 20 kW HD coil
6.04 Stop disk Ø 20-32 split 80.151.10.41.1 for 13 and 20 kW HD coil
6.05 Stop disk Ø 40-50 80.151.40.40 for 13 and 20 kW HD coil
6.06 Stop disk Ø 40-50 split 80.151.40.40.1 for 13 and 20 kW HD coil
7 Base unit 13 kW 80.197.01.V
8 Base unit 20 kW 80.197.20.V only for Profi Plus
9 Chuck support for Comfort, complete
9.01 SK/BT/CAT 30 80.102.30
9.02 SK/BT/CAT 40 80.102.40
9.03 SK/BT/CAT 50 80.102.50
9.04 HSK-A/C/E/T 25, HSK-B/D/F 32 80.103.25
9.05 HSK-A/C/E/T 32, HSK-B/D/F 40 80.103.32
9.06 HSK-A/C/E/T 40, HSK-B/D/F 50 80.103.40
9.07 HSK-A/C/E/T 50, HSK-B/D/F 63 80.103.50
9.08 HSK-A/C/E/T 63, HSK-B/D/F 80 80.103.63
9.09 HSK-A/C/E/T 80, HSK-B/D/F 100 80.103.80
9.10 HSK-A/C/E/T 100, HSK-B/D/F 125 80.103.10
10 Cooling bodies without temperature display
10.01 Ø 6-8 80.105.12
10.02 Ø 10-12 80.105.13
10.03 Ø 14-16 80.105.14.1
10.04 Ø 18-20 80.105.15
10.05 Ø 25-32 80.105.16.1
10.06 Ø 40-50 HD 80.105.18.1
11 Cooling bodies with temperature display
11. 01 Ø 6-8 80.105.12.3
11.02 Ø 10-12 80.105.13.3
11.03 Ø 14-16 80.105.14.3
11. 0 4 Ø 18-20 80.105.15.3
11.05 Ø 25-32 80.105.16.3
11.06 Ø 40-50 HD 80.105.18.3
12.1 Cooling manger 80.127.21 230 V
12.2 Cooling manger USA 80.127.31 110 V
12.3 Cooling manager Premium 80.127.20 230 V
12.4 Cooling manager Premium USA 80.127.30 110 V
13 Guide unit complete with spring tensioner 113912-0008
14 Spring tensioner 907003-0101
15.1 Cable package 113904-0002 for 5 cooling bodies
15.2 Cable package 113904-0030 for 6 cooling bodies
