1.2 Front Panel

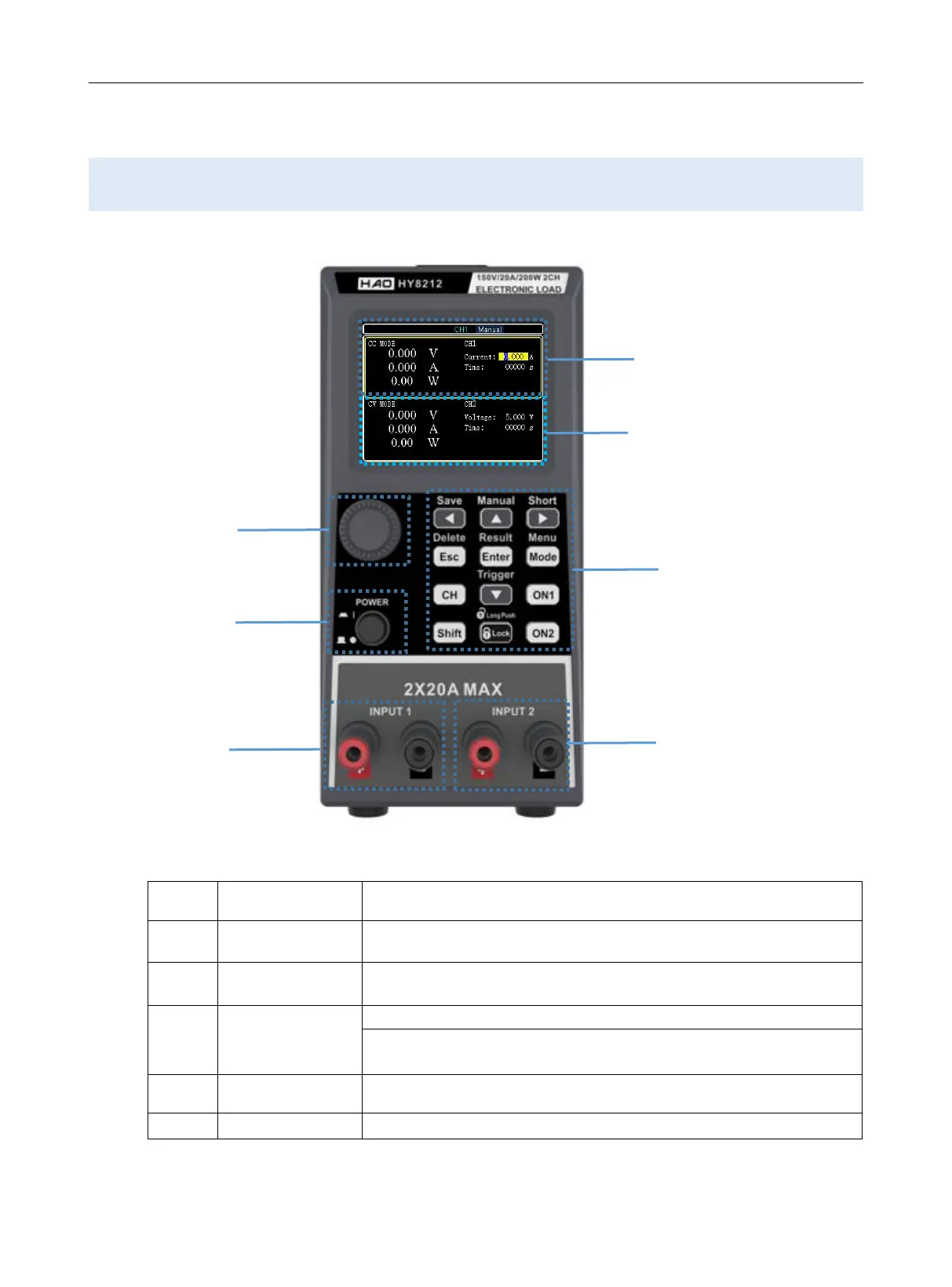

Figure 1-2 HY8212 Front Panel(Dual Channel)
NO.
Item
Description
①
LCD display
Channel 1
It is used to display the operating status, measurement
parameters and mode of channel 1.
②
LCD display
Channel 2
It is used to display the operating status, measurement
parameters and mode of channel 2.
③
Buttons
They are used to select test modes (CC, CV, CR, CP and more);
In other interfaces, follow the on-screen instructions to perform
specific operating functions
④
Rotary knob
Adjusting the size of parameter or adjusting the cursor poistion in
the menu
⑤
Power Switch
Turn on/off electronic load
①
②
③
④
⑤
⑥
⑦
