HY8200 User’s Manual
23

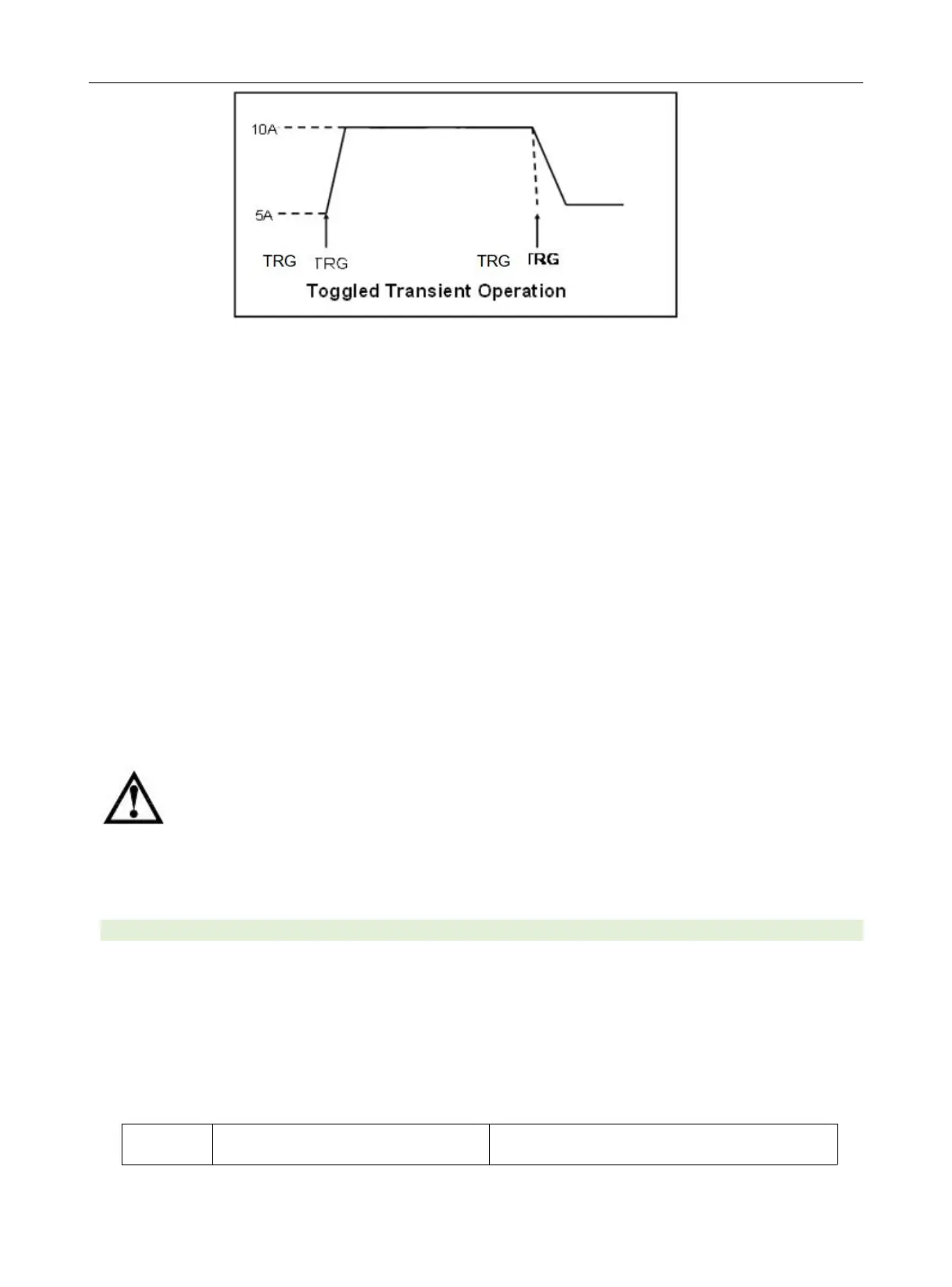

Figure 4-1-5-3 Dynamic Reverse Test Mode
Operation steps:
1. After the instrument is boot-up, press CH key to select the channel, yellow wireframe area is the
selected channel and it will display the prompt of CH1 or CH2 at top of the screen
(HY8211/HY8213 single channel don’t need to choose.)
2. Press Mode key to enter the selection interface, use rotary knob or direction key to select dynamic
mode and then press Enter key to enter test interface.
3. Rotate the rotary knob to select the parameter to adjust, press Enter key to change and press it
again to save the setting.
4. After the parameter is set, press ON key to enter dynamic test interface (press ON1 to enter CH1,
press ON2 to enter CH2).
5. Press ON key to operating, press ON key again to stop the operation.
Note: If the voltage position/current position is set to the low position, when the
voltage/current value exceeds the range of the low position during load operation, the error
information will be displayed. The users should return to the parameter setting interface, and
refer to chapter 5.2 to adjust the voltage/current position.
4.1.6 List Test
List test can switch different mode in rotation according to the set parameter. For power supply
products and charger device, etc., the multi-parameter mixed test can provide a more comprehensive
and in-depth understanding of the comprehensive working characteristics of the tested products in
practical applications.
