The electronic load will automatically switch the two setting high/low scale until it reaches to the
repeat times and the test is over. Continous transient operation as shown in the following figure.

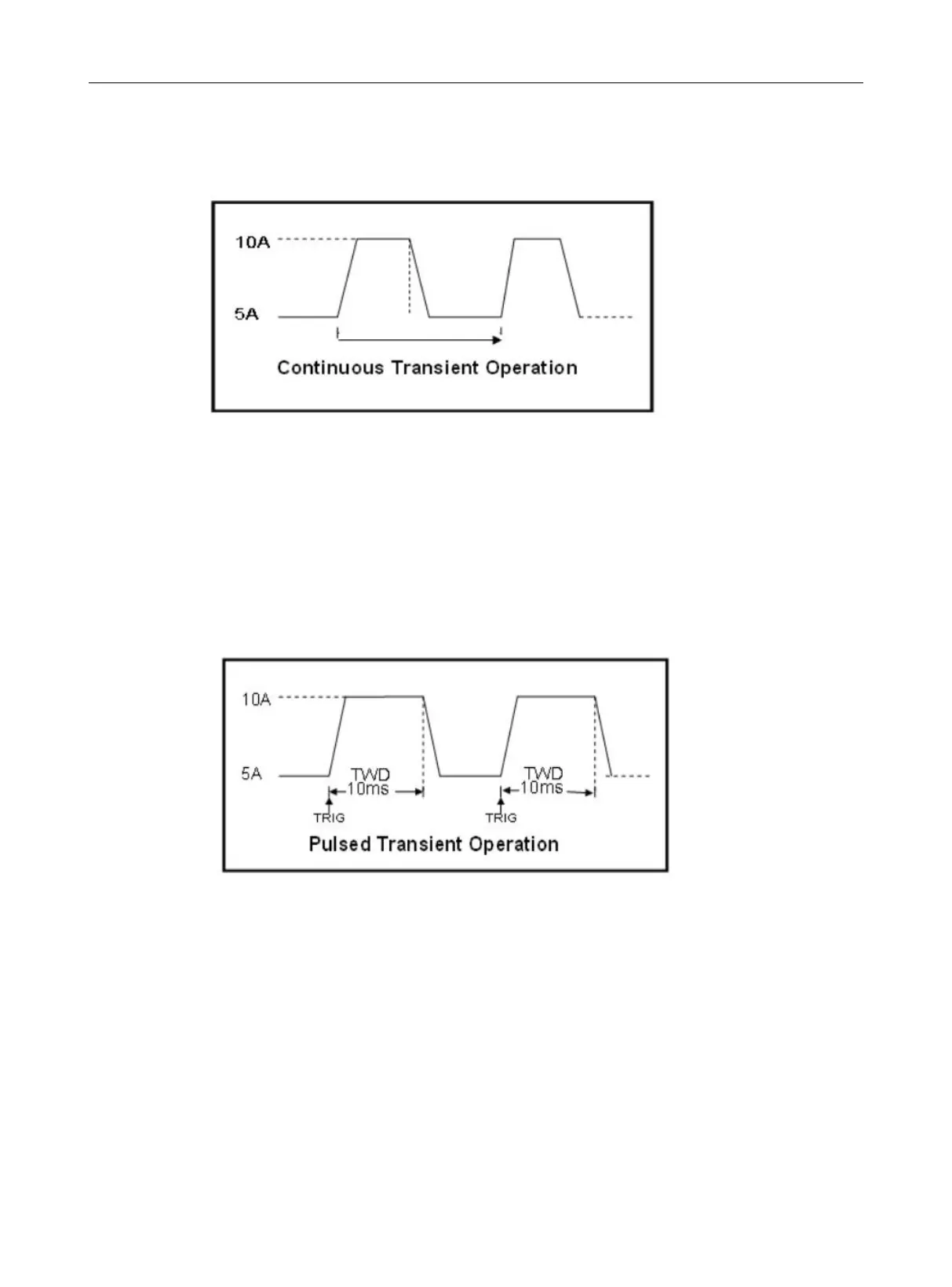

Figure 4-1-5-1 Dynamic Continues Test Mode
2. Pulse Mode
The electronic load will running with the low value, and then the electronic load switches to the high
value when it receives a trigger signal for each time. After maintaining the set time, the electronic
load switches to the low value. The electronic load will only reverse one time when it receives a
trigger signal for each time and don’t need to set the timing of low value. Pulsed transient operation
as shown in the following figure.
Figure 4-1-5-2 Dynamic Pulse Test Mode
3. Reversal Mode
The electronic load will switch between the high and low values once for each trigger. At this time,
there is no need to set the timing for both high and low. And it will only switch to the other state after
each trigger is performed. Toggled transient operation as shown in the following figure.
