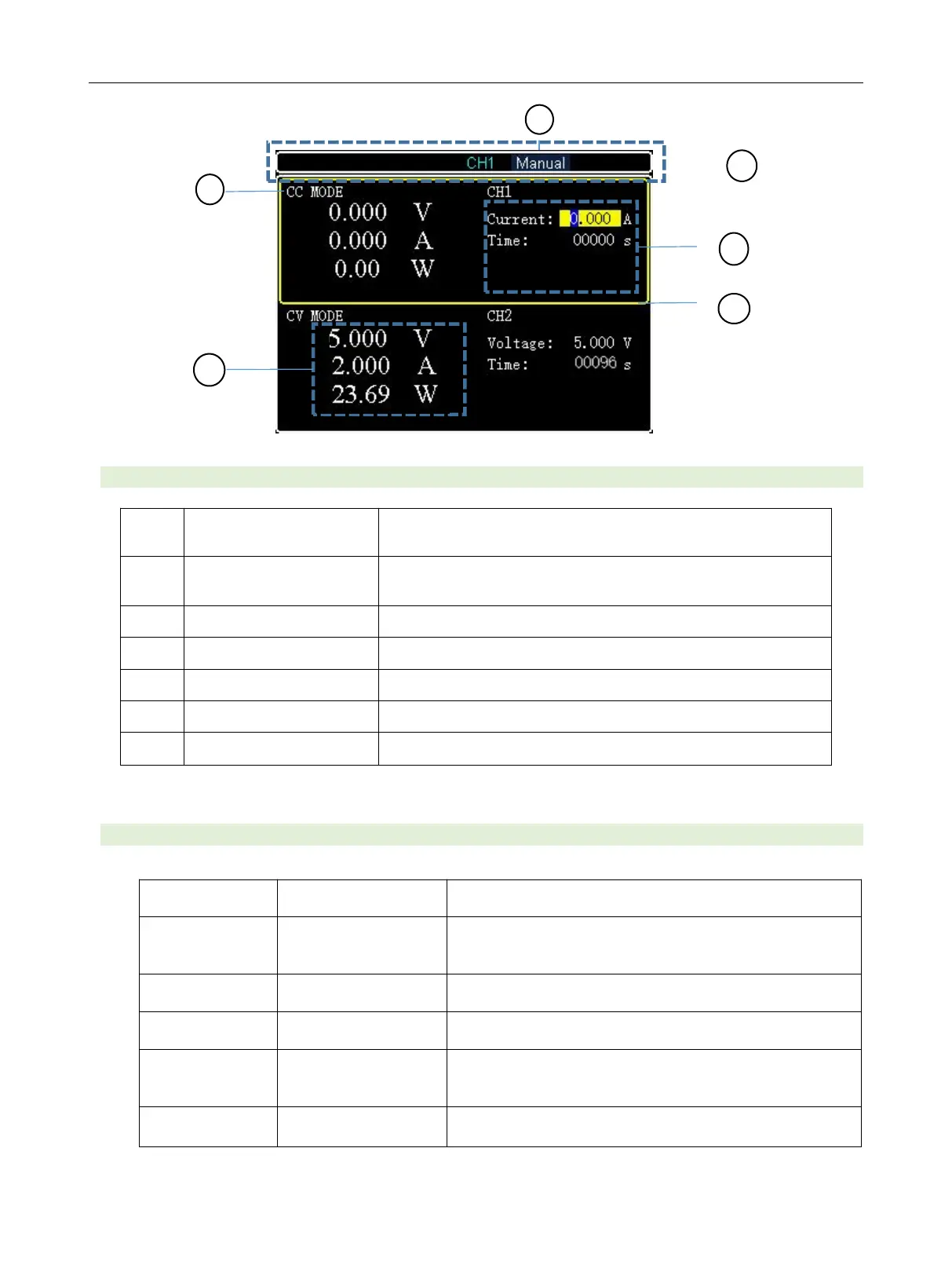

example, as shown in Figure 3-2-1.
3.2.2 Measurement Interface
3.2.3 Status Information
Display the current measurement state or
operation mode
Current operating mode: Local/Remote
Current trigger mode: Manual/External
The current mode is waiting for trigger, the mark
will disappear when it generated
The load is in short circuit state
Display the current state of on-load channel, remote control,
short circuit test and trigger function
Display mode setting information
Display real-time voltage, current and power
Display the status of short circuit test, trigger function, etc.
Display the selected channel (HY8212 only)
