HY8200 User’s Manual
26
In battery test, select discharge mode and set the load parameter and cut-off voltage for the mode.
The electronic load will automatically stop when the battery discharges to the cut-off voltage.

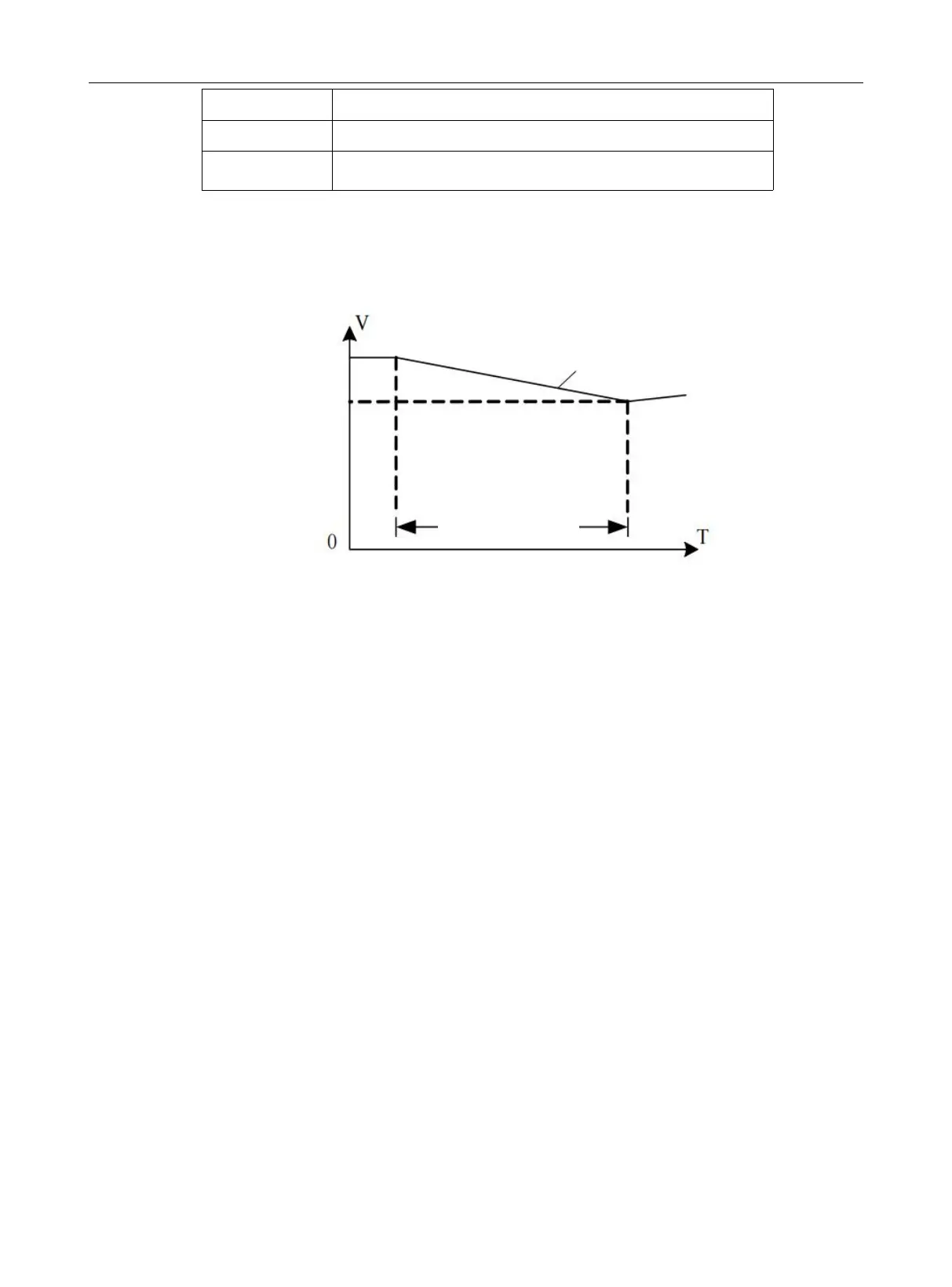

Figure 4-1-7 Battery Mode
Battery Test Mode
During the actual test, user can view the battery voltage, discharge current and discharged capacity
at any time.
Operation steps:
1. After the instrument is boot-up, press CH key to select the channel, yellow wireframe area is the
selected channel and it will display the prompt of CH1 or CH2 at top of the screen (HY8211/HY8213
single channel don’t need to choose.)
2. Press Mode key to enter the selection interface, use rotary knob or direction key to select battery
mode and then press Enter key to enter the set interface.
3. Rotate the rotary knob to select the parameter to adjust, press Enter key to change and press it
again to save the setting.
4. After the parameter is set, press ON key to enter list test interface (press ON1 to enter CH1, press
ON2 to enter CH2).
5. Press ON key to operating, press ON key again to stop the operation.
Set discharge mode to CC/CR/CP
Set the lower limit for cut-off discharge
CC Battery Discharge Mode
To Next Page
