3 - Description
3.4
Sy
stem description

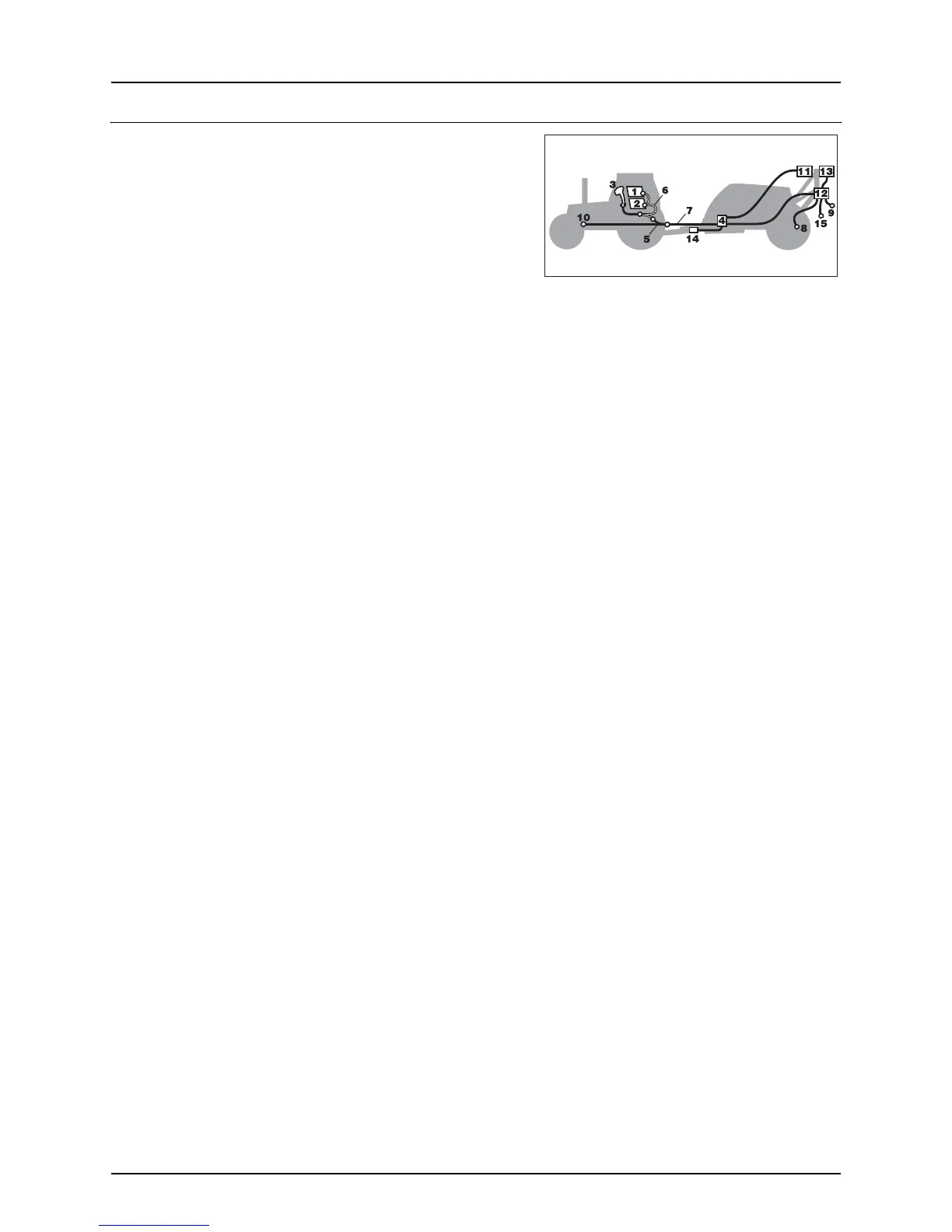

Overall description
1.
HC 6500 Terminal.
2.
HC 6400 SetBox.
3.
HC 6300 Grip.
4.
HC 6100 Jobcom junc
tion box.
5.
Harness for the tractor.
6.
Harness for the cabin.
7.
Harness for the sprayer.
8.
Speed sensor & pulse ring.
9.
Flow sensor.
10.
Power supply to sprayer.
11.
Hydraulics block.
12.
EFC junction box
13.
Electric Fluid Contr
ol unit.
14.
LookAhead pressure control.
15.
LookAhead boom positio
n sensor.
15
17
