3 - Description
3.8
Display symbols

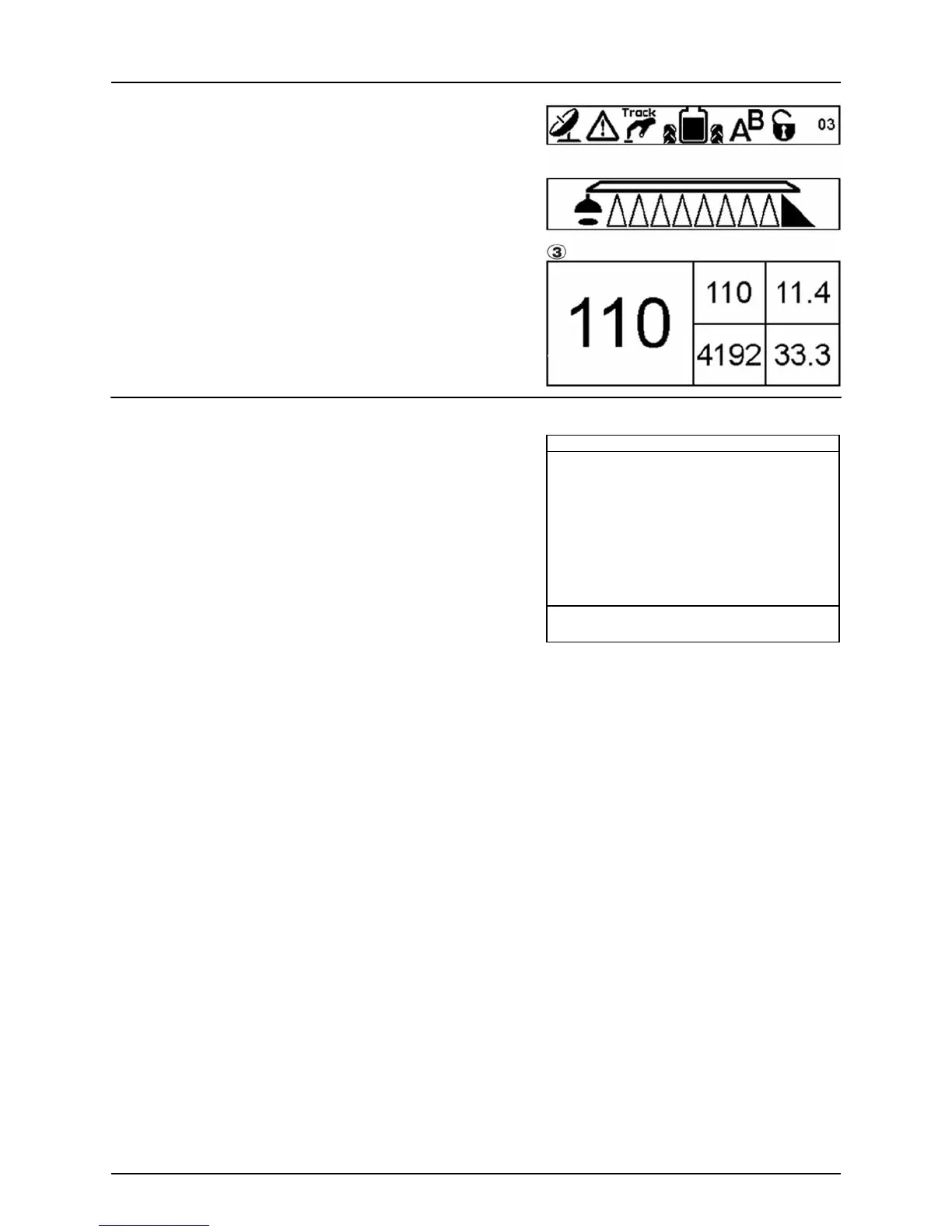

1. The 1st Line is for status and register number.
2. The 2nd Line is for boom, foam marker and end nozzles
3. The bottom half can be set-up to show 1 or 2 and up to 5 boxes
with information.
Soft keys: When activated 4 rows appear beside the buttons F1 - F4.
Alarm and warning error number will be shown in the upper right
corner of the display. The number has an exclamation sign in front of it,
as this is also used for register number indication.
General keystrokes, daily settings
Press # to enter the menu system.
Note that the menu numbers are unique to each line or page.
When adjustments are made in settings, the display will be as shown.
The two markings > > show the actual menu where you are located. It
is now possible to go up and down by using the ¿ and ª keys, or by
pressing the menus last digit at the numeric keypad; e.g. pressing “6” for
menu [4.6 Speed simulation].
The last value which was used, is marked with this symbol ‰. In the
bottom of the display there will be help text for each menu. Where you
see the two > > you will see the help text for that menu only.
This display setup will be shown every time adjustments have to be
made in the menu.
4 TOOLBOX
>> 4.1 Measure
4.2 Service interval: Hours until
4.3 Stop-watch
4.4 Alarm clock
4.5 Test
4.6 Speed simulation
4.7 Emergency track Align
4.8 Computer CAN status
To measure distance and area.
Setup working width
To Next Page
