Harman Kardon AVR 70 Quick Start Guide

Introduction, Placement and ConnectionAVR 700, AVR 70, AVR 70C
2
Introduction
Thank you for choosing a Harman Kardon
®
product!
This quick-start guide contains all the information you need to connect and set up your
new Harman Kardon
®
audio/video receiver.
To conserve our natural resources, your AVR does not include a printed owner's manual.
An owner’s manual containing complete information about operating all of your new
AVR's features is available at our Web site. Go to www.harmankardon.com and download
the AVR 700/AVR 70/AVR 70C Owner’s Manual.
Place the AVR
• Place the AVR on a rm and level surface. Be certain that the surface and any mounting
hardware can support the AVR's weight.
• Provide proper space above and below the AVR for ventilation. Recommended clearance
distances are 30cm above the unit, 10cm behind the unit and 20cm on each side of the unit.
• If you install the AVR in a cabinet or other enclosed area, provide cooling air within the cabinet.
Under some circumstances, a fan may be required.
• Do not obstruct the ventilation slots on the top of the AVR or place objects directly over them.
• Do not place the AVR directly on a carpeted surface.
• Do not place the AVR in moist or humid locations, in extremely hot or cold locations, in areas
near heaters or heat registers, or in direct sunlight.
Connections
CAUTION: Before making any connections to the audio/video receiver, ensure that
the AVR’s AC cord is unplugged from the AVR and the AC outlet. Making connections
with the AVR plugged in and turned on could damage the speakers.

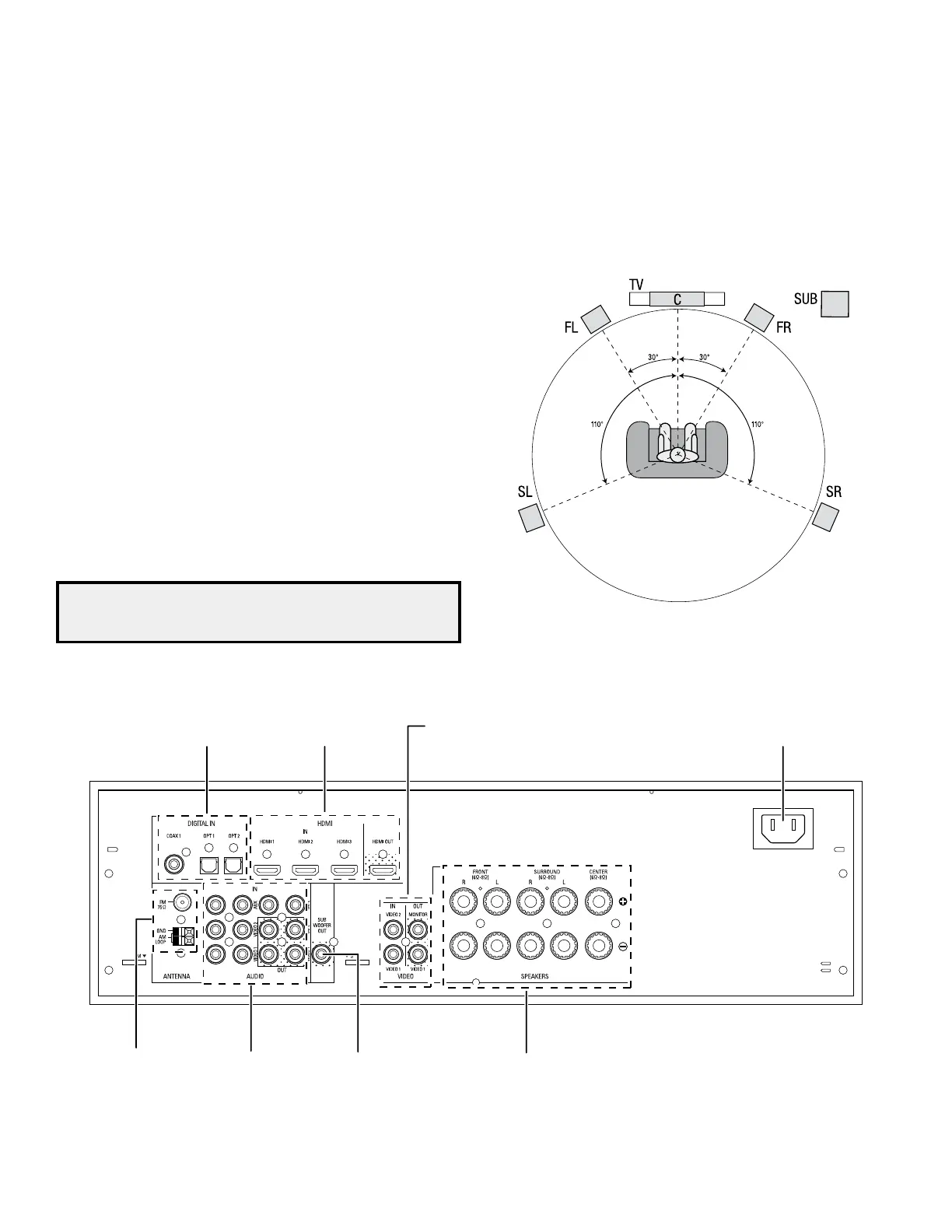

Place Your Speakers
Determine the locations for your system’s speakers according to their manufacturer’s
directions and the layout of your listening room. Use the illustration below as a guide.
For more detailed speaker placement information, download the complete AVR 700/
AVR 70/AVR 70C Owner’s Manual from www.harmankardon.com.
AVR 700/AVR 70/AVR 70C Rear-Panel Connections
Digital Audio
Connectors
HDMI
Connectors
Composite Video
Connectors
AC Input
Connector
Radio Antenna
Connectors
Analog Audio
Connectors
Subwoofer
Connector
Speaker
Connectors

Harman Kardon AVR 70 Specifications

General

Impedance	75 Ω
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	95 dB
Total Harmonic Distortion (THD)	0.1 %
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	3
Line-in	Yes
Audio (L/R) in	1
Digital audio optical in	2
Connectivity technology	Wired
Speakers connectivity type	-
Ethernet LAN	No
AM band range	520 - 1720 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Volume control	Digital
Apple docking compatibility	Not supported
AC input voltage	220 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	280 W
Cables included	AC

Weight and Dimensions

Depth	330 mm
Width	440 mm
Height	125 mm
Weight	9100 g
