Harman Kardon AVR 70 Quick Start Guide

Connections and Setup

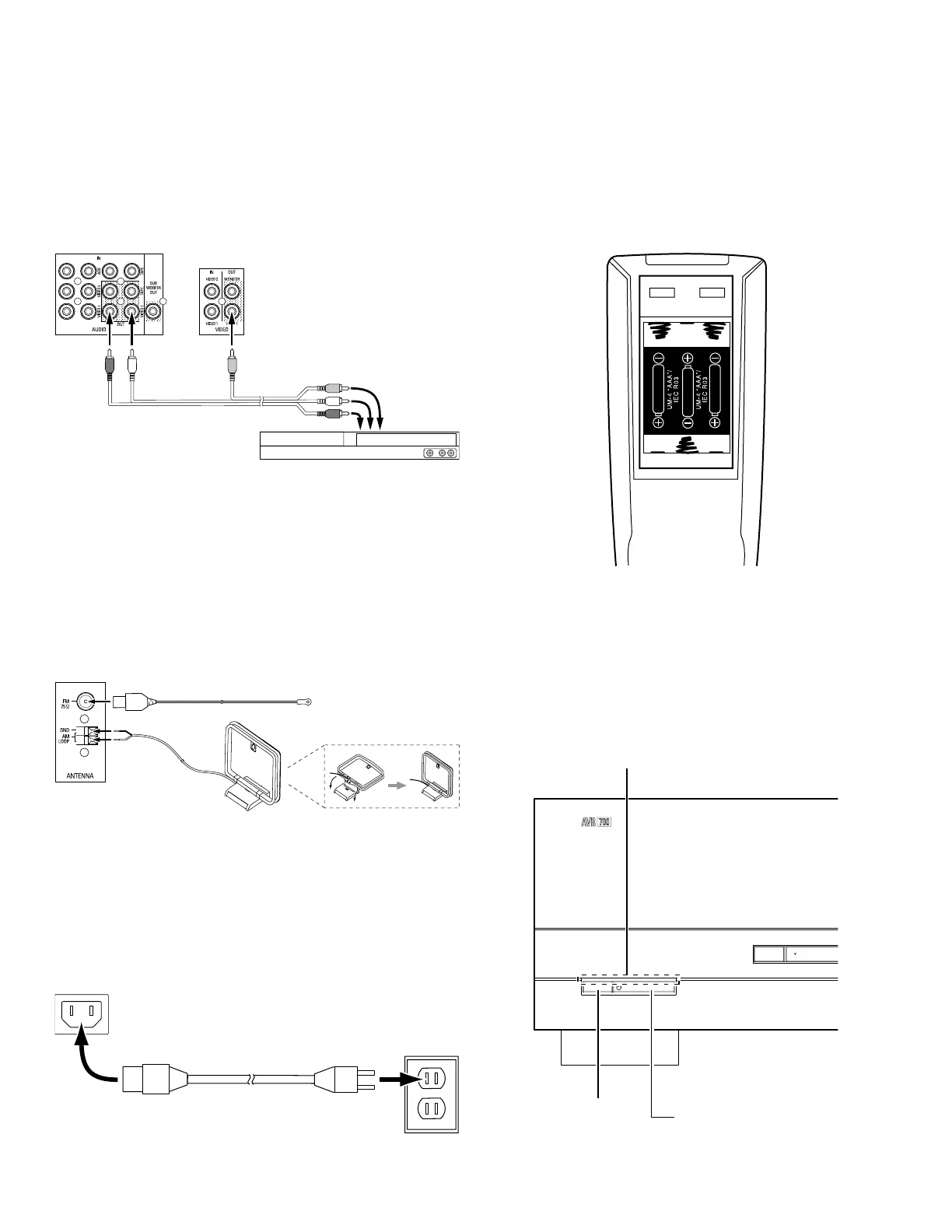

Video Recorders
Connect an analog video recorder’s video input connector to the AVR’s Video 1 Out
composite video connector and its audio input connectors to the AVR’s Video 1 Out
analog audio connectors. You can record the Video 2 composite video input signal.
To Analog
Audio/Video
Record Inputs
AVR Analog
Audio Connectors
Analog Video
Recording Device
Analog Audio/Video
Cable (not supplied)
AVR Composite
Video Connectors
Connect the Radio Antennas
• Connect the supplied FM antenna to the AVR’s FM 75Ω antenna connector. For the best
reception, extend the FM antenna as far as possible.
• Bend and fold the base of the supplied AM antenna as shown and connect the antenna
wires to the AVR’s AM and Gnd connectors. Rotate the antenna as necessary to minimize
background noise.
AM Antenna
(supplied)
Bend and fold base
AVR
Antenna
Connectors
FM Antenna
(supplied)
Connect to AC Power
Connect the AC power cord to the AVR’s AC Input connector and then to a working AC power
outlet. IMPORTANT: Before connecting the AC power cord, make sure that the AC voltage listed
on the AVR’s back panel matches the AC voltage used in your country.
AC Power
Outlet
AVR
AC Input
Connector
Power Cord
(supplied)
Install the Batteries in the Remote Control
Remove the remote control’s battery cover, insert the three supplied AAA batteries as
shown in the illustration, and replace the battery cover.
NOTE: Remove the protective plastic from the AVR’s front panel to keep it from reducing
the remote control’s effectiveness.
Turn On the AVR
1. Set the AVR’s Main Power switch to “On.” (The Standby indicator will glow amber.)
2. Press the front-panel On/Standby button.
Stereo
Power
Surr.Select
Main Power
Switch
Standby
Indicator
On/Standby
Button
6
AVR 700, AVR 70, AVR 70C

Harman Kardon AVR 70 Specifications

General

Impedance	75 Ω
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	95 dB
Total Harmonic Distortion (THD)	0.1 %
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	3
Line-in	Yes
Audio (L/R) in	1
Digital audio optical in	2
Connectivity technology	Wired
Speakers connectivity type	-
Ethernet LAN	No
AM band range	520 - 1720 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Volume control	Digital
Apple docking compatibility	Not supported
AC input voltage	220 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	280 W
Cables included	AC

Weight and Dimensions

Depth	330 mm
Width	440 mm
Height	125 mm
Weight	9100 g
