MM-013994-001, Rev. J
24
9 OPENSKY OPERATION
Once an OpenSky system has been selected from the available systems on your P7300 series portable
radio, the characteristics described in the following sections will govern operation.
9.1 CONTROLS
The P7300 portable radios feature two rotary control knobs, an emergency button, and a dual-position
A/B switch located on the top of the radio (Figure 9-1). The Push-To-Talk (PTT) button and two option
buttons are located on the side (Figure 9-2) of the radio. The front mounted keypad of the P7370
“System” model has 15 buttons and the P7350 “Scan” model has six buttons. Refer to Figure 9-3 and
Figure 9-4, respectively.

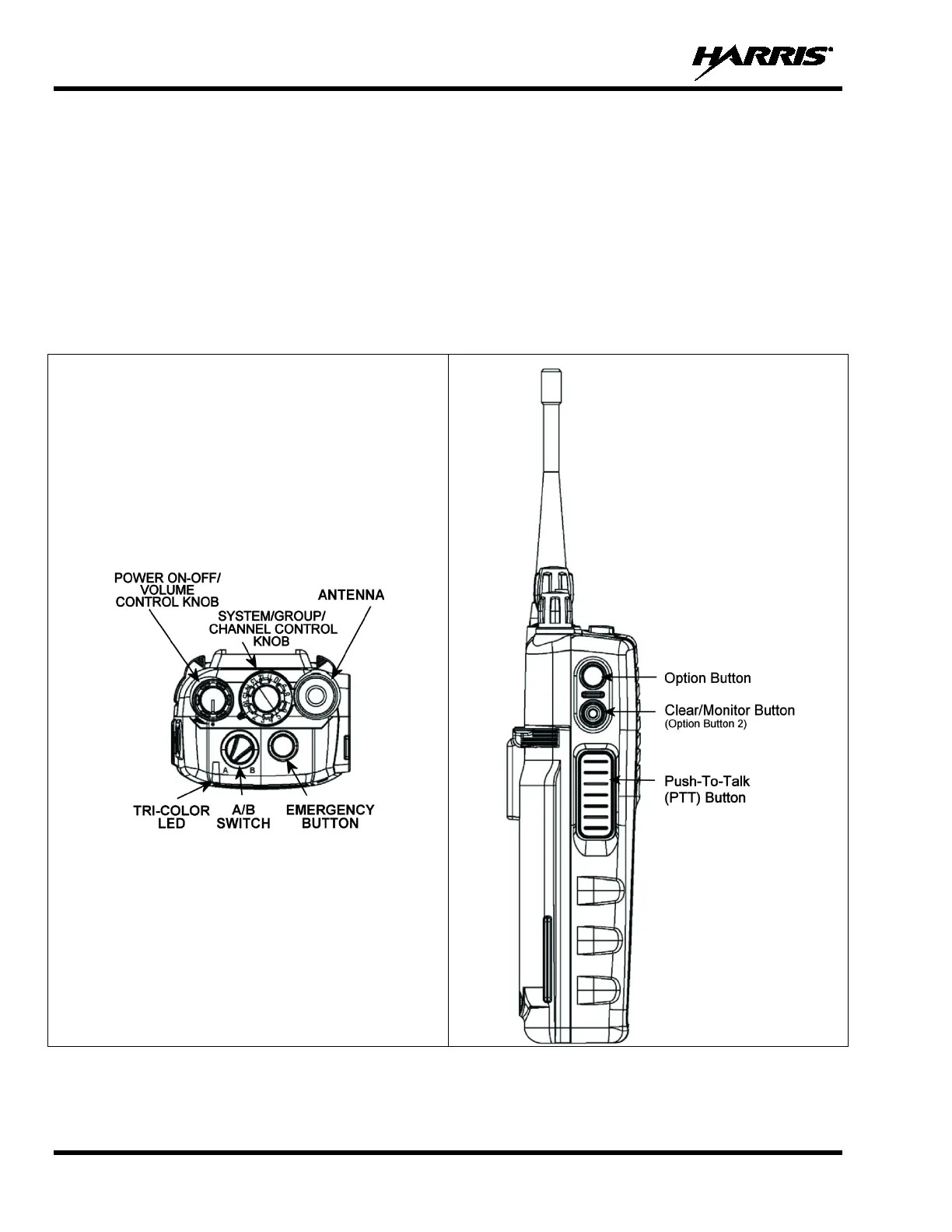

Figure 9-1: Top View Figure 9-2: Side View
