MM-013994-001, Rev. J
63
10.3 DISPLAY
The radio display is made up of three (3) lines (see Figure 10-5). Lines 1 and 2 contain eight
alphanumeric character blocks and are used primarily to display system and group names. Line 1 also
displays radio status messages. The 3rd line is used primarily to display radio status icons. All three lines
are used to display menu options when in the menu mode. If programmed, the display backlighting will
illuminate upon power-up or when radio controls are operated.

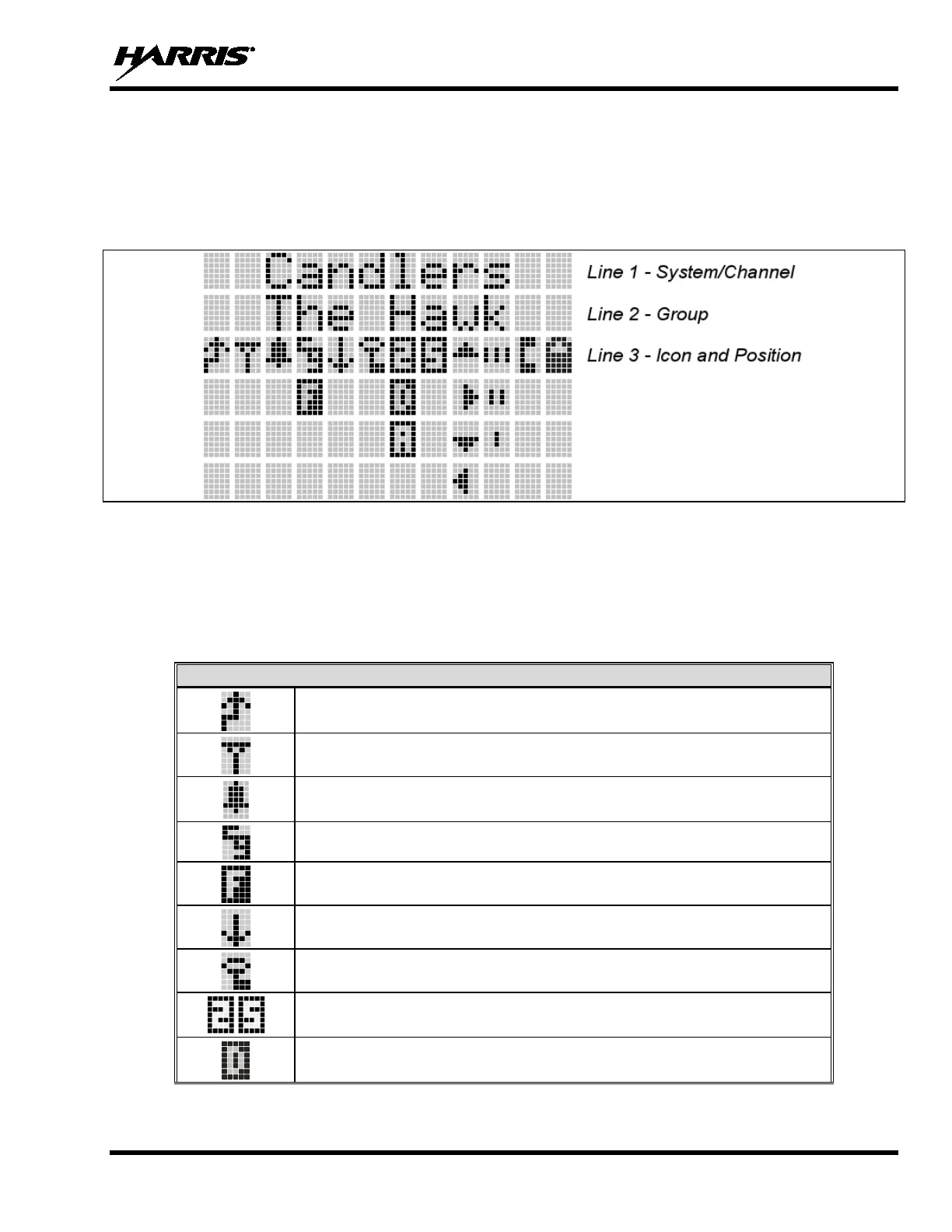

Figure 10-5: P7300 Radio Display
10.4 RADIO STATUS ICONS
Status icons indicate the various operating characteristics of the radio. The icons show operating modes
and conditions and appear on the third line of the display (see Table 10-4).
Table 10-4: Status Icon Descriptions
Steady – During all radio transmissions. Appears in the 1
st
position of the display.
Steady – “Busy” transmitting or receiving, call queued. Appears in the 2
nd
position of the
display.
Steady – T99 mode enabled. Appears in the 3
rd
position of the display.
Steady – Channel Guard enabled. Appears in the 4
th
position of the display.
Steady – Trunked system in Failsoft
™
mode. Appears in the 4
th
position of the display.
Steady – Transmit at low power. Appears in the 5
th
position of the display.
If icon is not visible – transmit at high power.
Steady – Transmit in encrypt mode. Appears in the 6
th
position of the display.
Flashing – Receiving an encrypted call.
Steady – Indicates the current channel is set up as a Project 25 (P25) channel. Appears in
the 7
th
and 8
th
positions of the display.
Steady – Indicates the current channel is set up as a ProVoice channel. Appears in the 7
th
position of the display.
