Harsco MARK IV - Jupiter System Network

PAGE 2.2 - 8 OPERATION MARK IV HD J2 TAMPER
REVISED 10 -2020 JUPITER II BULLETIN 5082505
2.2
2.2.1 Jupiter II Control System
2.2.1.6 Jupiter System Network - See Figures 2.2-1 and 2.2-2
1. The Jupiter Control System is used to control most operating functions on the machine.
The main computer (host) is the Jupiter Application Master (JAM). The machine is
equipped with a G5-JAM. The JAM and J42 Board are located behind the Engine Control
Panel door inside of the cab. The JAM is labeled address #J1 and is connected to the J42
Board labeled J42 which provides the physical connection between the JAM and Jupiter
Network Modules on the machine.

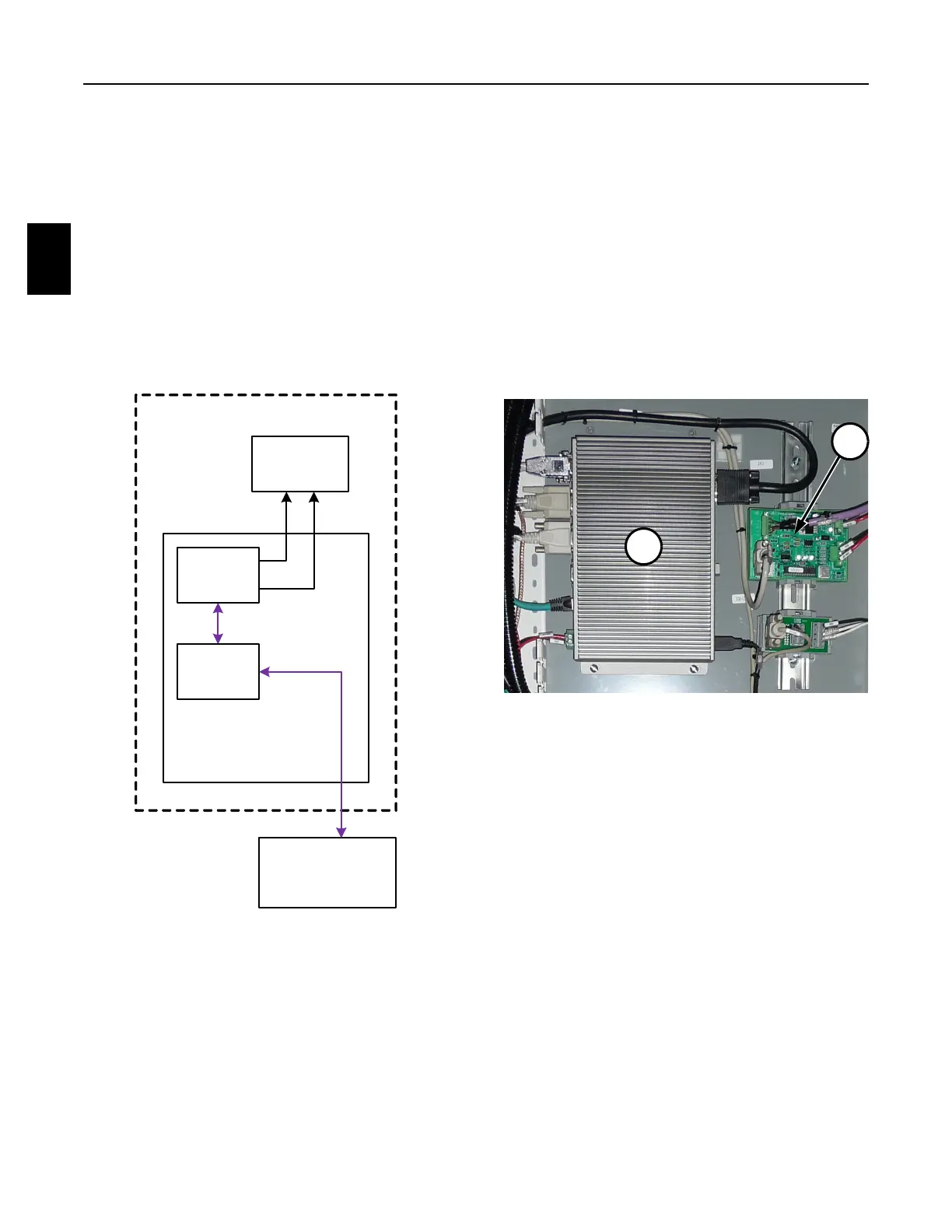

FIGURE 2.2-1 FIGURE 2.2-2
JUPITER SYSTEM NETWORK JUPITER JAM / J42 BOARD
1
2
INSIDE OF
LEFT CONTROL
PANEL DOOR
TO 1st JUPITER
MODULE ON
MACHINE
J42
BOARD
CAB
JUPITER
MONITOR
JUPITER
JAM J1
