PAGE 2.1 - 24 OPERATION MARK IV HD J2 TAMPER
REVISED 10 - 2020 CONTROLS BULLETIN 5082505
2.1
2.1.2 Controls - Exterior
(40) Removable Vise Option - See Figure 2.1-22
The Removable Vise Option is located on the left front corner of the machine or on the rear of
the machine. The vise and mounting bracket can be installed and secured to the machine frame
or removed from the machine frame using the lock pin (A).
(41) Rear Platform Storage Compartments Option - See Figure 2.1-23
The Rear Platform Tow Bar Compartments Option is located underneath both the left and right
rear cab access steps. The compartments are lockable and can be used to sore tools, repair
parts, etc.
(42) Lining Bar / Oil Storage Option - See Figure 2.1-24
The Lining Bar / Oil Storage Option is located on the rear of the machine frame and on the left
and right front sides of the cab. Lining bars (A) can be stored on the rear of the frame. 5 gallon
(18.9 liter) oil buckets (B) can be stored on the rear of the machine and on both the left and right
front sides of the cab.

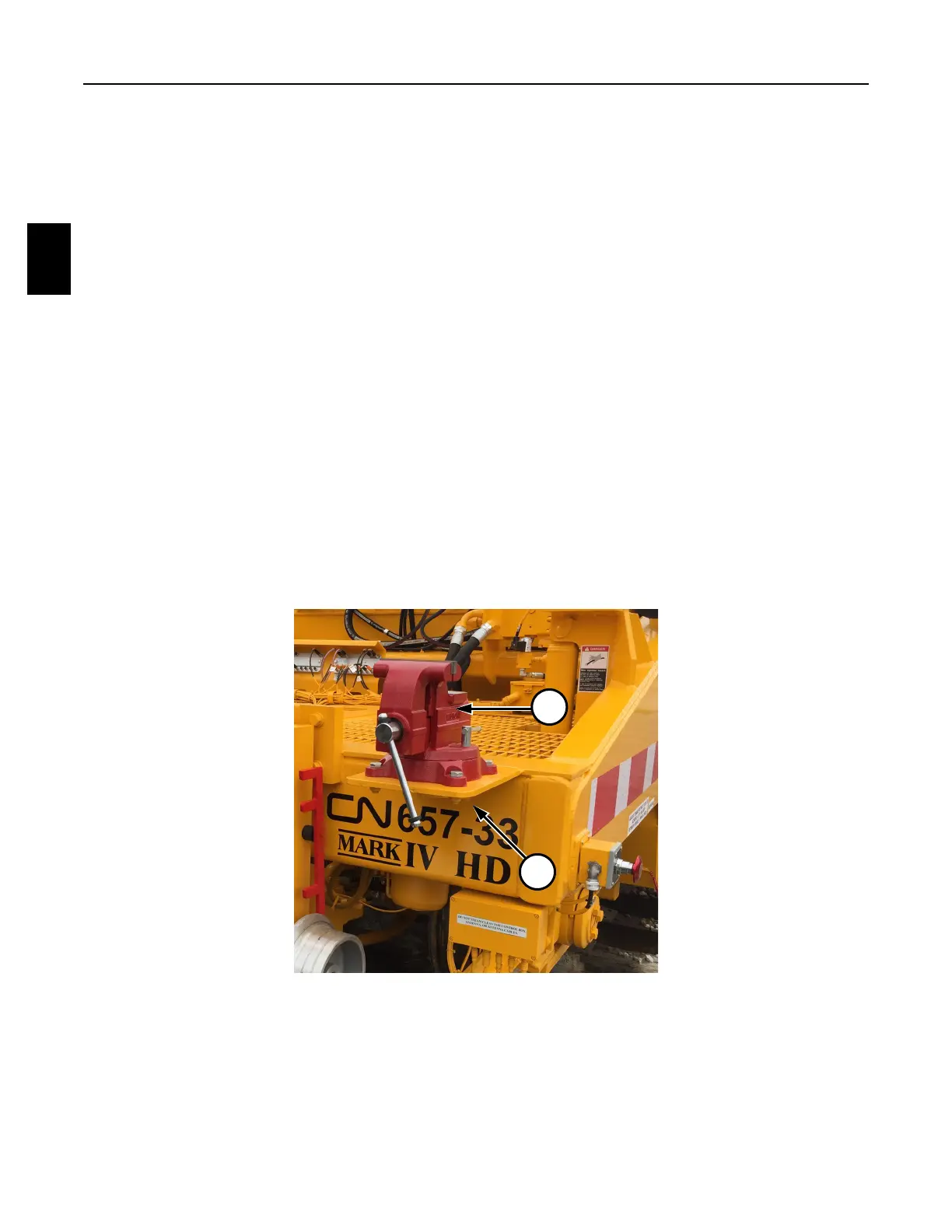

FIGURE 2.1-22
REMOVABLE VISE OPTION
40
A
