Harsco MARK IV - Fuel Tank Gauge; Hydraulic Reservoir Fill Pump Option; Hydraulic Reservoir Fill Pump Switch Option

MARK IV HD J2 TAMPER OPERATION PAGE 2.1 - 15
BULLETIN 5082505 CONTROLS REVISED 10 - 2020
2.1
2.1.2 Controls - Exterior

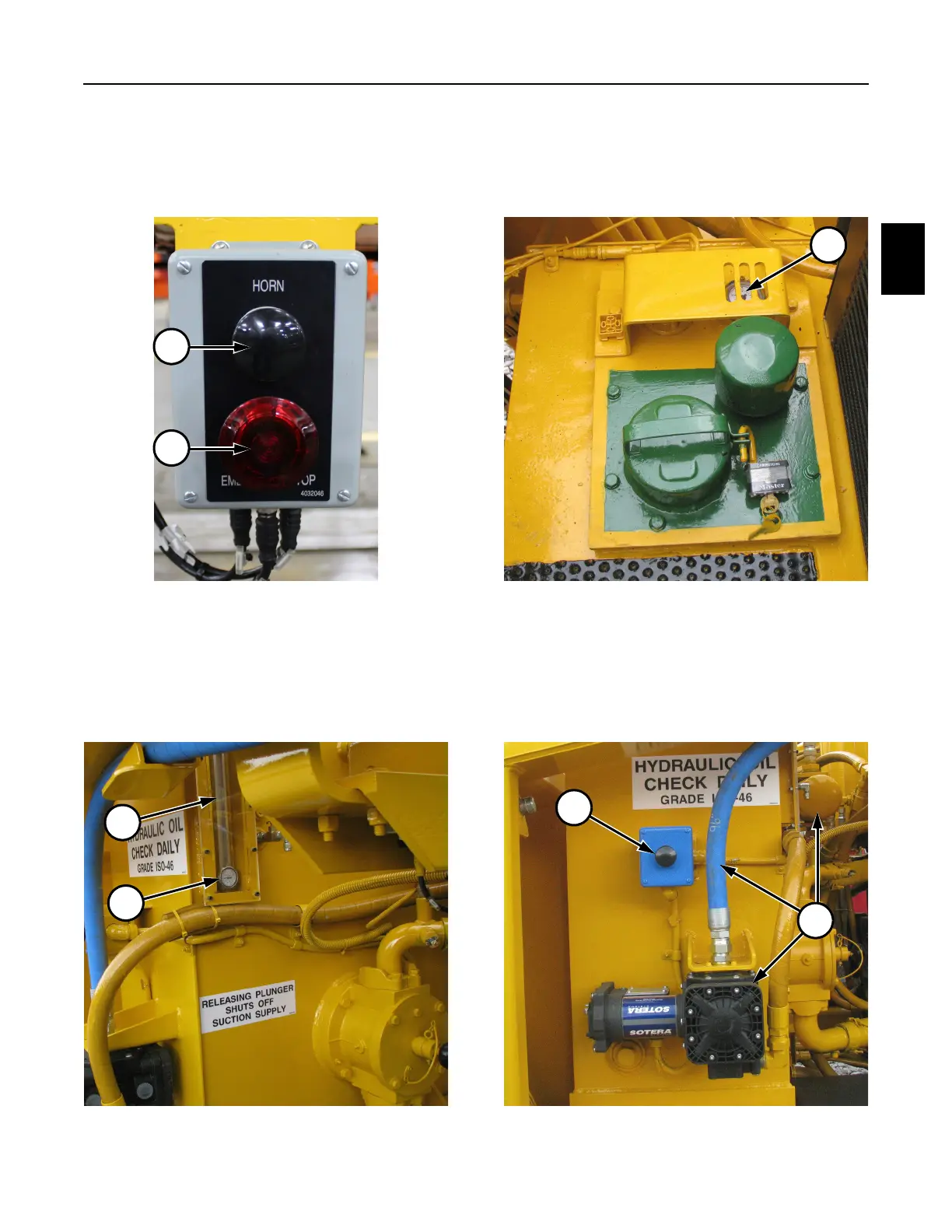

FIGURE 2.1-7 FIGURE 2.1-8
REMOTE EMERGENCY STOP SWITCH FUEL TANK GAUGE
/ AIR HORN SWITCH OPTION
FIGURE 2.1-9 FIGURE 2.1-10
HYDRAULIC RESERVOIR GAUGE HYDRAULIC RESERVOIR FILL PUMP
/ SWITCH OPTION
16
18
15
14
17
12
13
