HBM CANHEAD - Enhanced data rate (with MGCplus only)

CANHEAD enhancements
70 A01185_11_X00_00 HBM: public CANHEAD

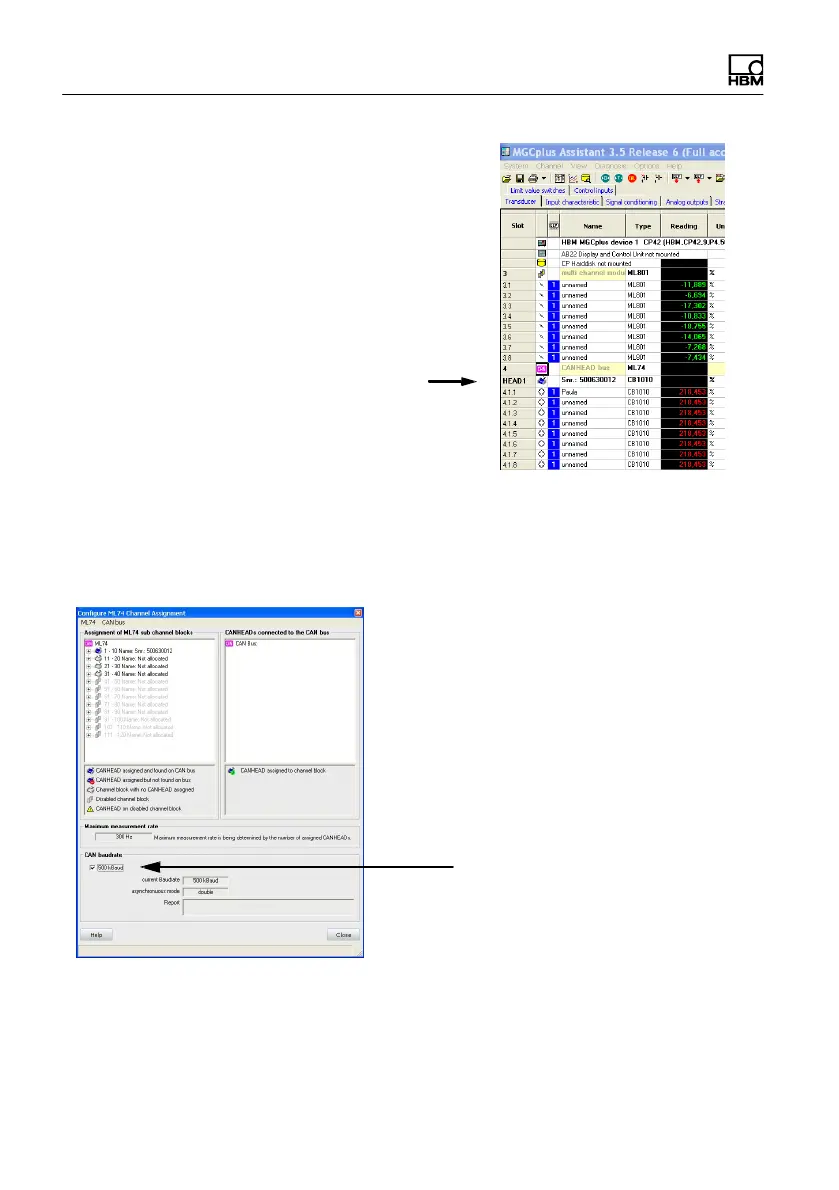

S Cursor on SLOT
S Right mouse button
S Enhanced settings - CAN baud rate
“500 kBaud" can be activated there; the status shows the current baud rate
and asynchronous mode. This must be “double", to activate
500 kBaud. If there are problems, a description under “Messages" will accur
ately indicate which component is preventing 500 kBaud activation.
Select baud rate
On start‐up, the CANHEADs begin at 250 kBaud; with a relevant system con
figuration, 500 kBaud can be selected in the menu. In the event of an error,
e.g. too long a cable, 250 kBaud must be manually selected again and a reset
triggered.
