Internal calculation channels

192 A4354-2.2 HBM: public PMX

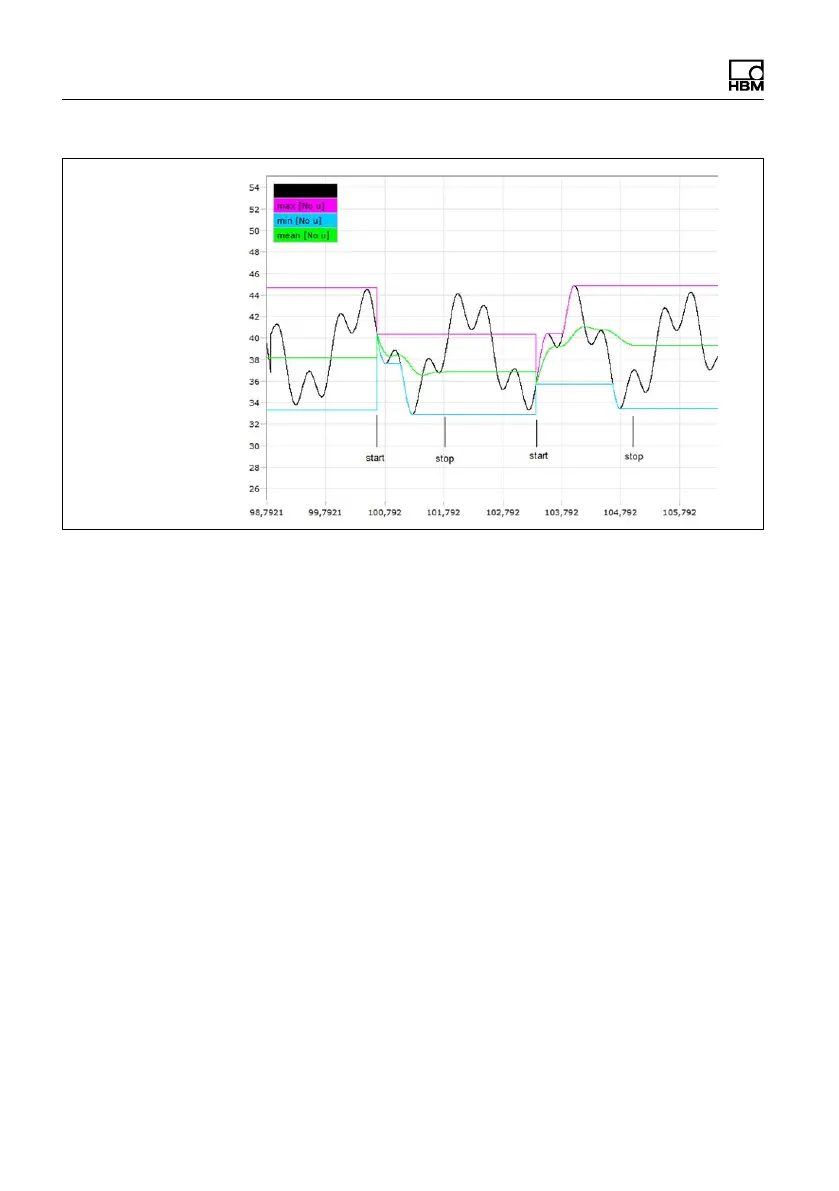

Example of max., min. and mean value. Reset when

starting Hold from stop to start.
