Internal calculation channels
262 A4354-2.2 HBM: public PMX

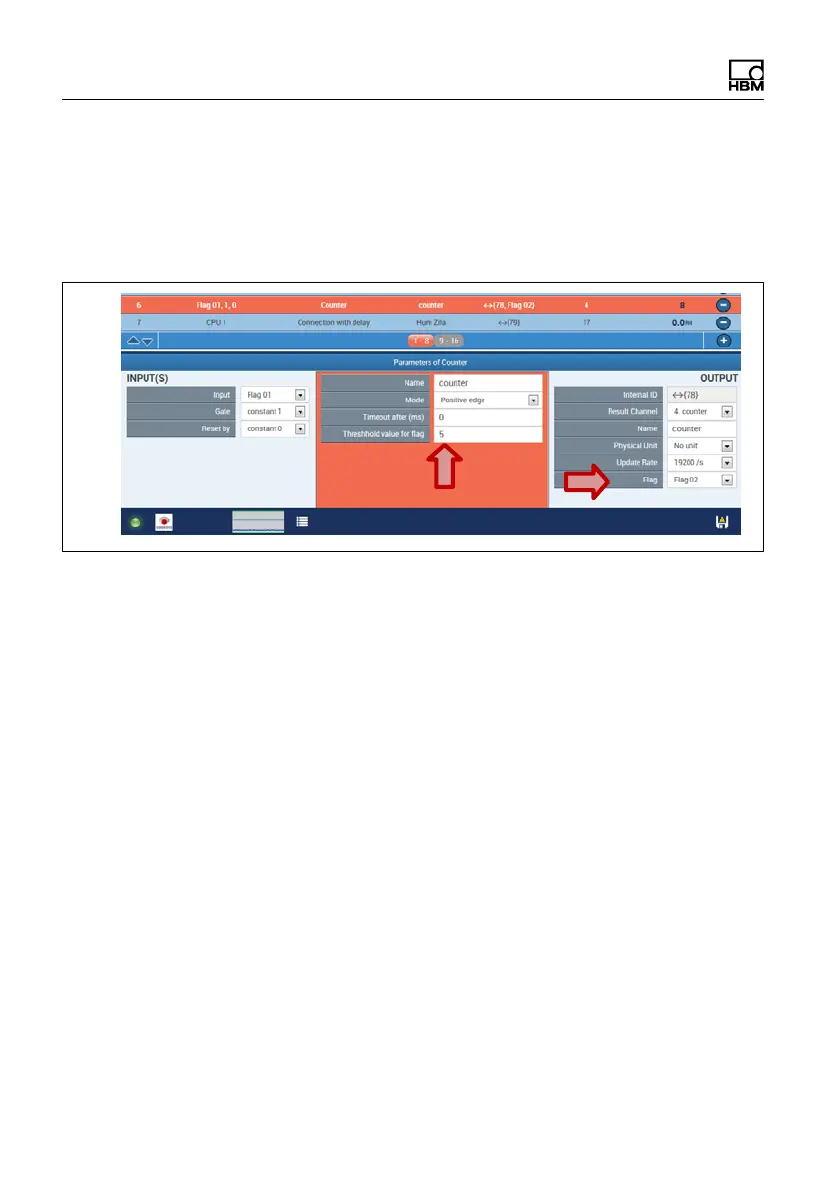

S This activates Flag02, as soon as the counter reaches
a value of 5 or higher.
S These Flags can be retrieved by the PLC via a field
bus
S If the result (i.e. achieving of the counter value at a
digital output[PX878]) shall be signalized, this flag is
set as input for a digital output. In this example digital
output 2 is activated by flag 2.
