HCFA Q Series User Manual

26
Table 0-11 Digital inut module indicators description
DI
0
10
DI
1
11
DI
2
12
DI
3
13
DI
4
14
DI
5
15
DI
6
16
DI
7
17
COM
SS
SS
Symbol
Color
Description
P
Green
The indicator show the current power supply status of the module.
RUN
Red
ID module running state. Lit means the module is in normal running
state
0
Red
Input signal is detected by input channel 0.
1
Red
Input signal is detected by input channel 1.
2
Red
Input signal is detected by input channel 2.
3
Red
Input signal is detected by input channel 3.
4
Red
Input signal is detected by input channel 4.
5
Red
Input signal is detected by input channel 5.
6
Red
Input signal is detected by input channel 6.
7
Red
Input signal is detected by input channel 7.
8
Red
Input signal is detected by input channel 10.
9
Red
Input signal is detected by input channel 11.
10
Red
Input signal is detected by input channel 12.
11
Red
Input signal is detected by input channel 13.
12
Red
Input signal is detected by input channel 14.
13
Red
Input signal is detected by input channel 15.
14
Red
Input signal is detected by input channel 16.
15
Red
Input signal is detected by input channel 17.

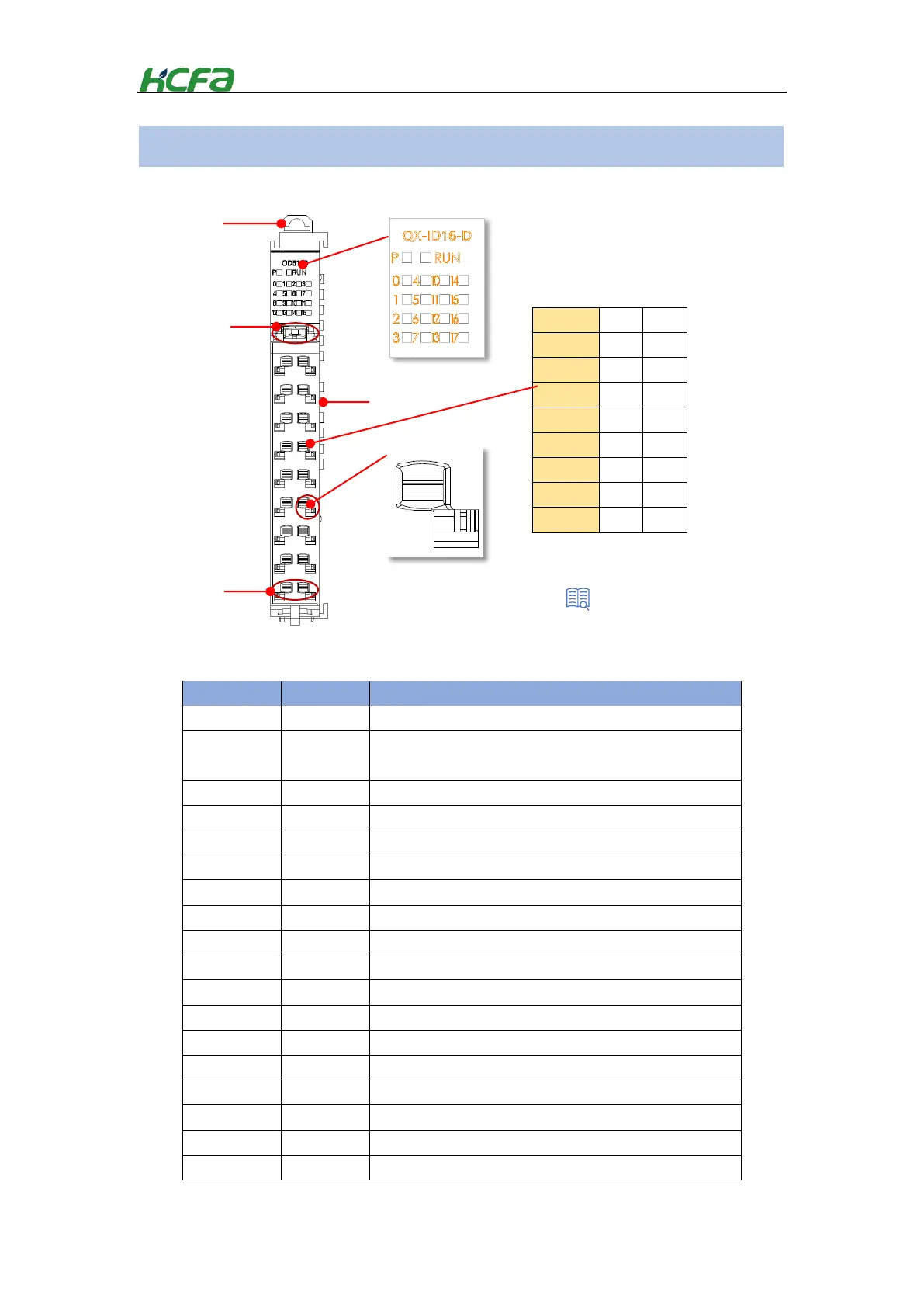

Part names for digital input module
HCQX-ID16-D module front view
Mounting
hook
Connector
mounting
hook
Sheetmetal
Terminal block
Indicators
Common
terminal
“Connector installation and wiring”
Input channel arrangements
