HCFA Q Series - Page 40

38

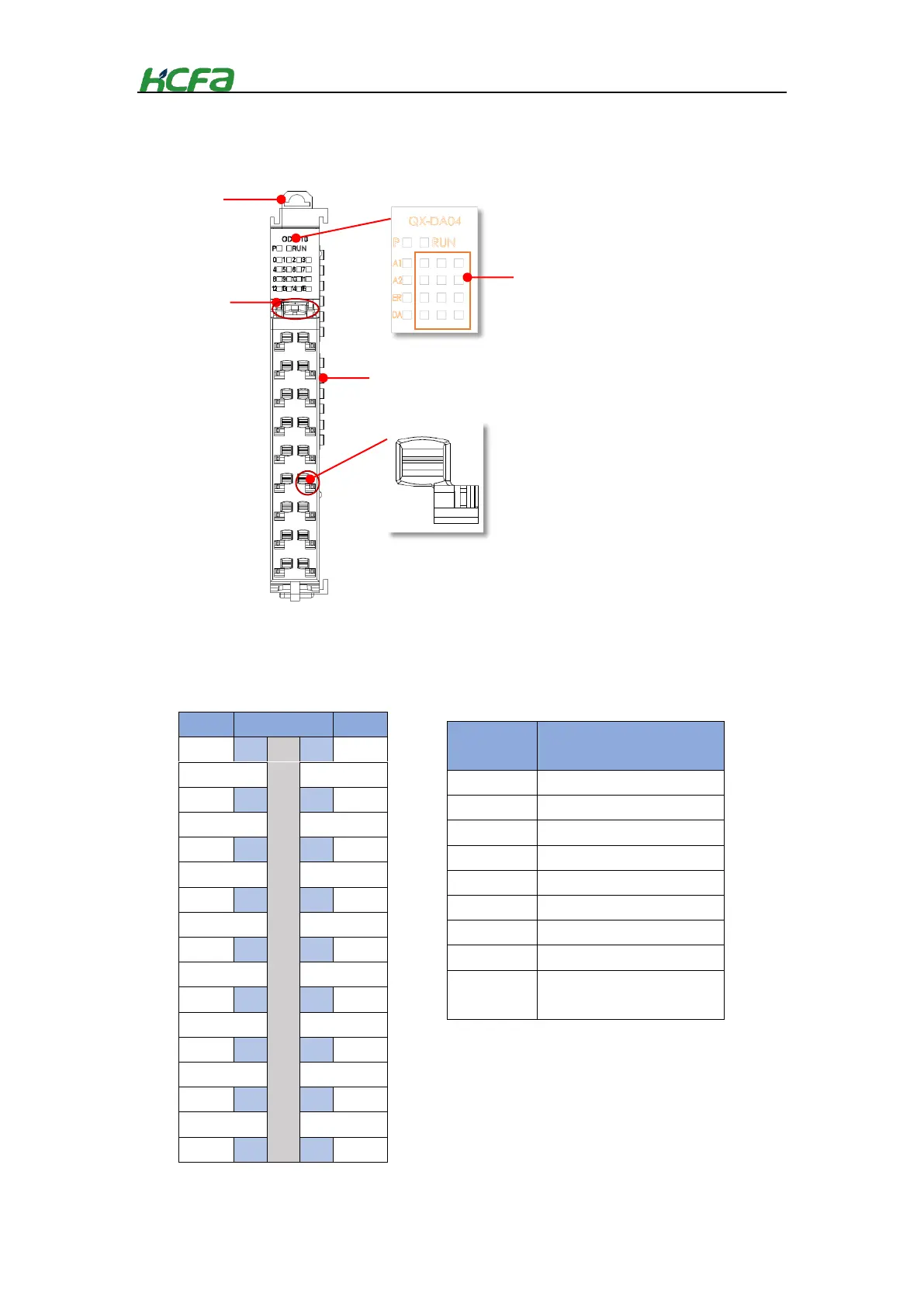

 Analog output module terminal arrangements
Table 0-17 Terminal arrangements
Terminal
name
Description
V1
Channel 1 voltage output
I1
Channel 1 current output
V2
Channel 2 voltage output
I2
Channel 2 current output
V3
Channel 3 voltage output
I3
Channel 3 current output
V4
Channel 4 voltage output
I4
Channel 4 current output
G
AGND（Internal short circuit at
analog grounding G port）
Name
Terminal
Name
V1
0
9
G
I1
1
10
G
V2
2
11
G
I2
3
12
G
V3
4
13
G
I3
5
14
G
V4
6
15
G
I4
7
16
G
G
8
17
G
HCQX-DA04-D Front view
Mounting
hook
Connector
mounting hook
Sheetmetal
Terminal block
Indicator
Note that the
indicators
here are not
defined.
