65
Make sure that the cutting part of cables have been properly handled.
The module is made of synthetic resin and may melt when contact with solvent such
as acetone, trichloroethylene and gasoline
About connectors
For HCFA Q-series PLC, you can add the connector to the modules /units, which is easy for customers to
make wiring and mainternance. In case of module damage, users only need to replace the module and
install the connector to the new module, and then it can operate normally. This section will mainly
describe the wiring, installation and removal of the connector.

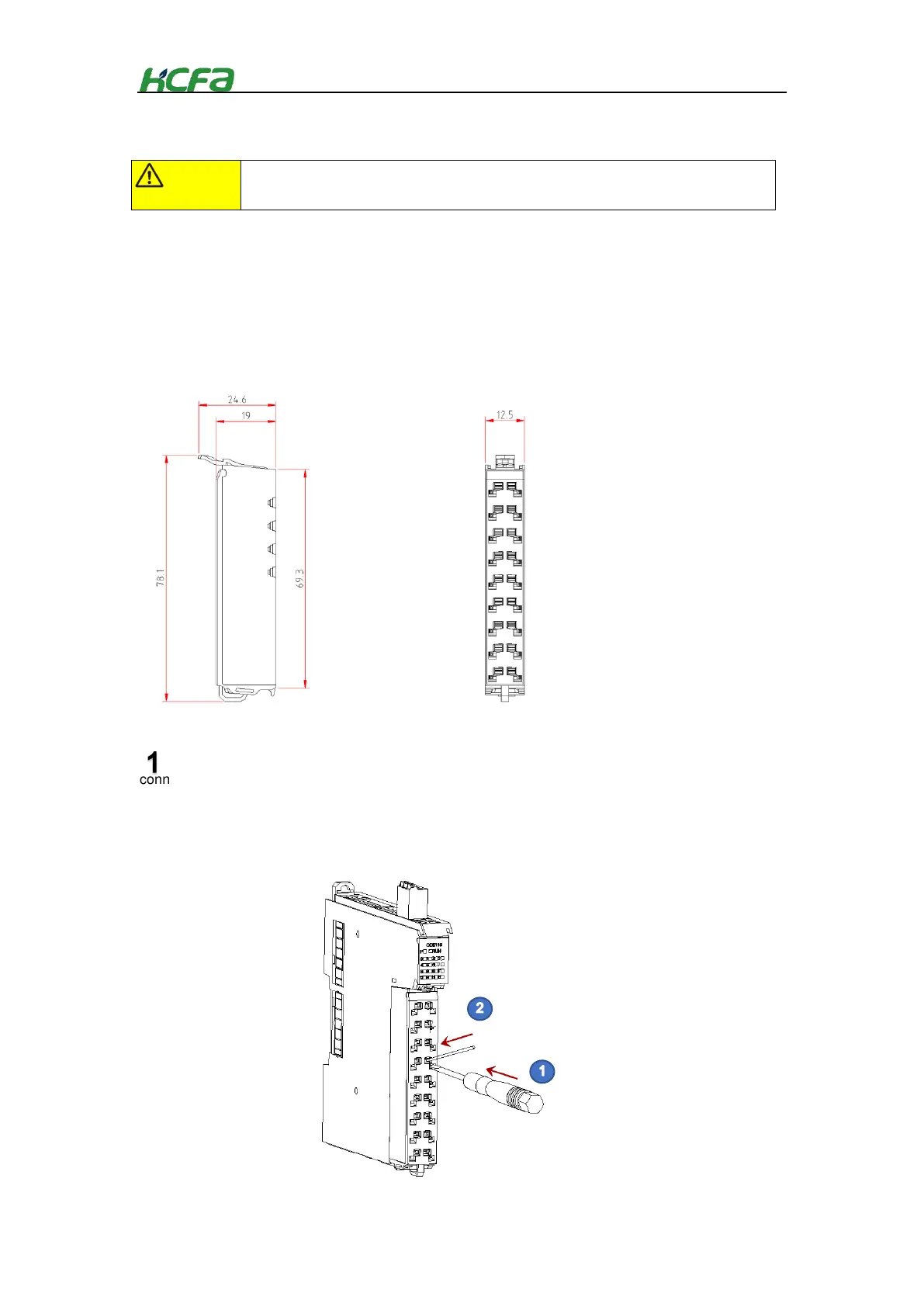

Connector module dimension：
Figure 0-1 Connector dimension
Connector wiring
Take out the small screwdriver in the package and insert it into the square socket of the
connector, applying a force of more than 10N . And then insert the qualified cable from another square
wiring socket (located inside the module) ) to the bottom, loosen the screwdriver, gently pull the cable up
and down until the cable is clamped
Apply a force of more than 10N
Insert the qualified cable to
another square wiring socket
