HEIDENHAIN iTNC 530 265
9.6 Checking and Changing Q Parameters
9.6 Checking and Changing
Q Parameters
Procedure
You can check and edit Q parameters when writing, testing and
running programs in the Programming and Editing, Test Run, Program
Run Full Sequence, and Program Run Single Block modes.
U If you are in a program run, interrupt it if required (for example, by
pressing the machine STOP button and the INTERNAL STOP soft
key). If you are in a test run, interrupt it
U To call Q parameter functions: Press the Q key or the
Q INFO soft key in the Programming and Editing
mode of operation.

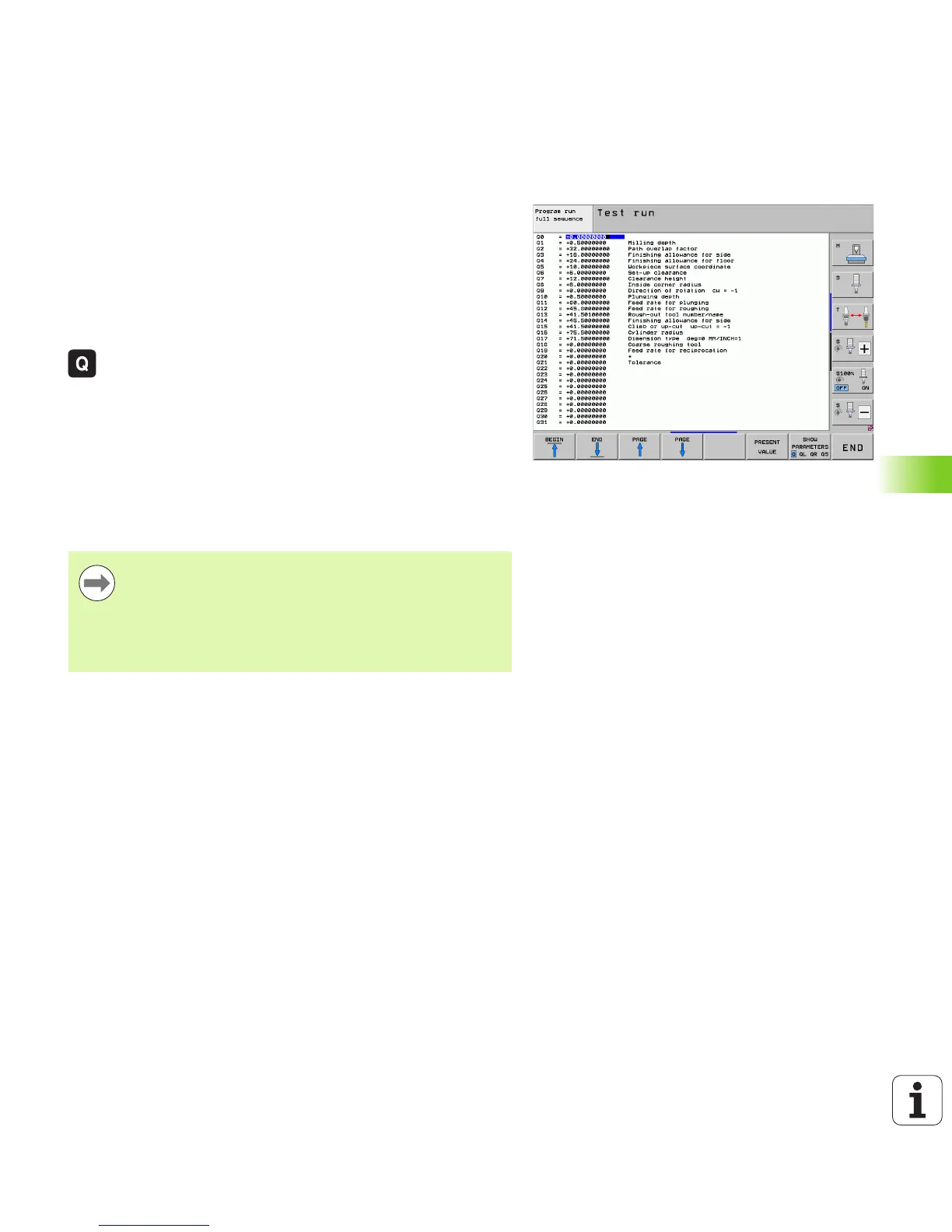

U The TNC lists all parameters and their current values.
With the arrow keys or the soft keys, go pagewise to
the desired parameters.
U If you would like to change the value, enter a new
value and confirm with the ENT key.
U To leave the value unchanged, press the PRESENT
VALUE soft key or end the dialog with the END key.
The parameters used internally or by the TNC in cycles are
provided with comments.
If you want to check or edit local, global or string
parameters, press the SHOW PARAMETERS Q QL QR QS
soft key. The TNC then displays all respective parameters
and the above described also apply.
