HEIDENHAIN iTNC 530 347

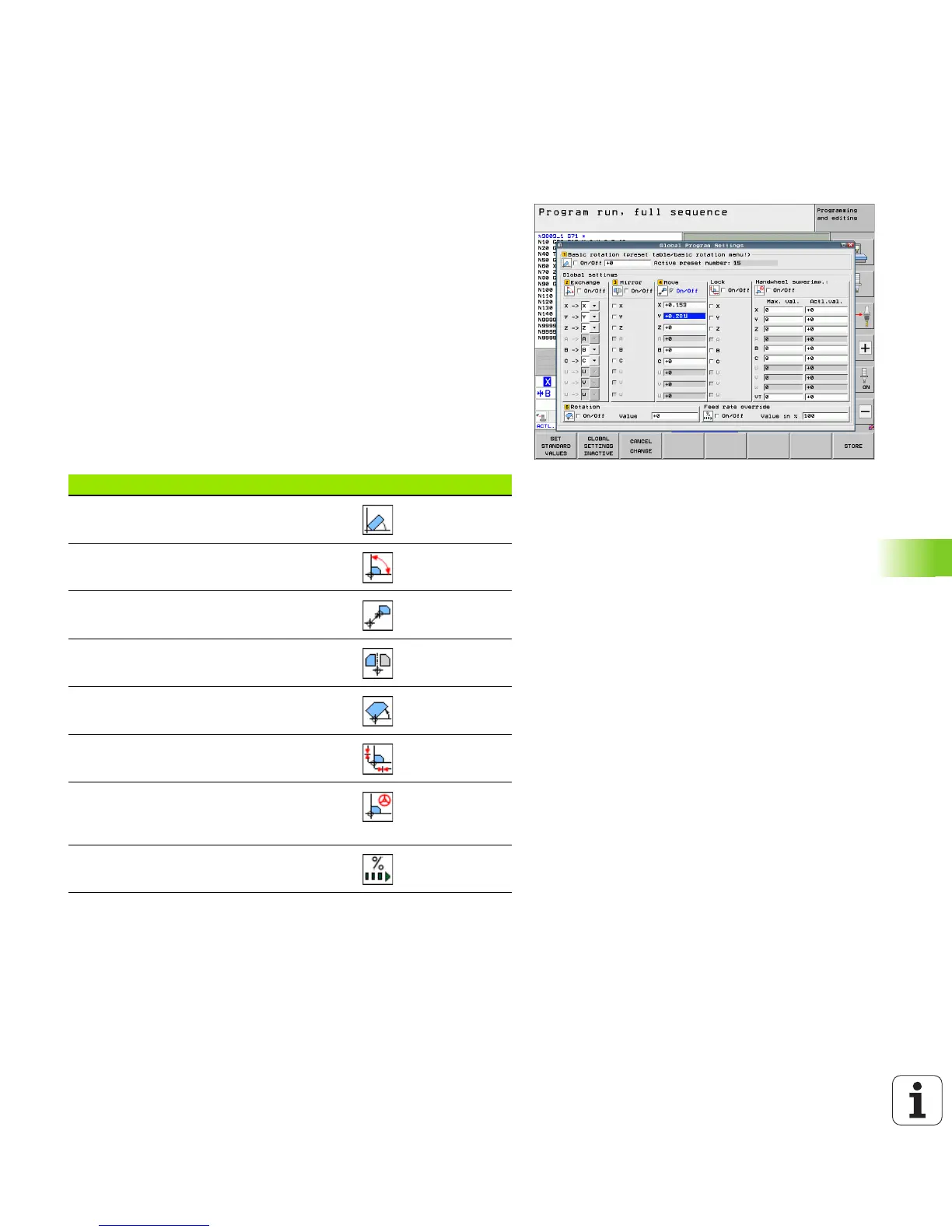

11.5 Global Program Settings (Software Option)
11.5 Global Program Settings
(Software Option)
Function
The global program settings, which are used in particular for large
molds and dies, are available in the Program Run mode and MDI
mode. You can use them to define various coordinate transformations
and settings that are globally effective and are superimposed on the
respectively selected NC program so that you do not need to edit the
NC program.
You can activate and deactivate global program settings, even in mid-
program if you have interrupted the program run (see “Interrupting
machining” on page 525). The TNC immediately accounts for the
values you have defined after you have restarted the NC program. The
control might move to the new position over the reapproach menu
(see “Returning to the contour” on page 532).
The following global program settings are available:
Functions Icon Page
Basic rotation Page 352
Swapping axes Page 353
Additional, additive datum shift Page 354
Superimposed mirroring Page 354
Superimposed rotation Page 355
Axis locking Page 355
Definition of a handwheel
superimposition, even in the virtual axis
direction VT
Page 356
Definition of a globally effective feed rate
factor
Page 355
