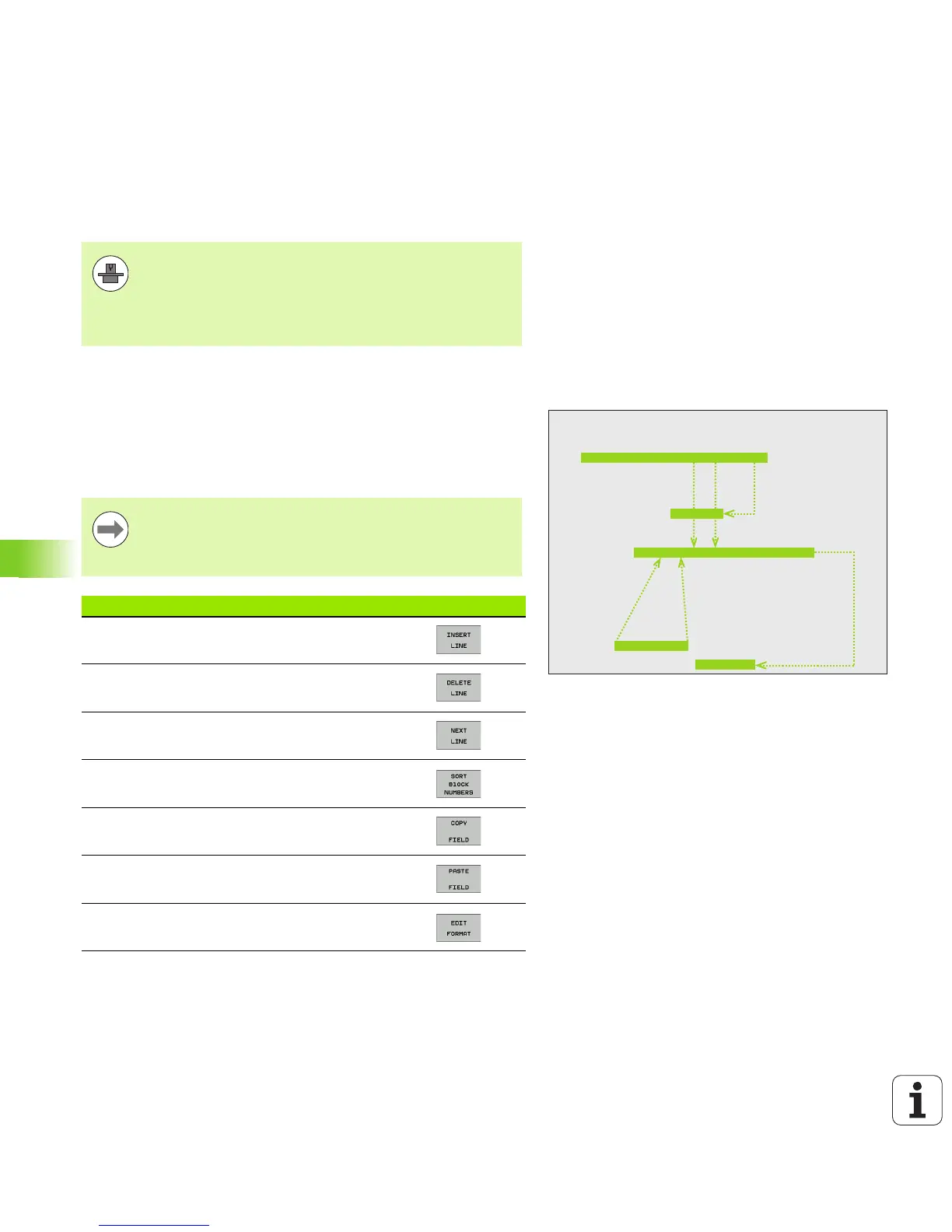

374 Programming: Special Functions
11.8 Working with Cutting Data Tables
11.8 Working with Cutting Data
Ta b l e s
Note
Applications
In cutting data tables containing various workpiece and cutting
material combinations, the TNC can use the cutting speed V
C
and the
tooth feed
Z
to calculate the spindle speed S and the feed rate F. This
calculation is only possible if you defined the workpiece material in the
program and various tool-specific features in the tool table.
The TNC must be specially prepared by the machine tool
builder for the use of cutting data tables.
Some functions or additional functions described here
may not be provided on your machine tool. Refer to your
machine tool manual.
DATEI: TOOL.T MM
T R CUT. TYP TMAT CDT
0 ... ... ... ... ...
1 ... ... ... ... ...
2 +5 4 MILL HSS PRO1
3 ... ... ... ... ...
4 ... ... ... ... ...
0 BEGIN PGM xxx.H MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 Z X+100 Y+100 Z+0
3 WMAT "ST65"
4 ...
5 TOOL CALL 2 Z S1273 F305
DATEI: PRO1.CDT
NR WMAT TMAT Vc1 F1
0 ... ... ... ...
1 ... ... ... ...
2 ST65 HSS 40 0.06
3 ... ... ... ...
4 ... ... ... ...
Before you let the TNC automatically calculate the cutting
data, the tool table from which the TNC is to take the tool-
specific data must be first be activated in the Test Run
mode (status S).
Editing function for cutting data tables Soft key
Insert line
Delete line
Go to beginning of next line
Sort the table
Copy the highlighted field (2nd soft-key row)
Insert the copied field (2nd soft-key row)
Edit the table format (2nd soft-key row)
