HEIDENHAIN iTNC 530 399

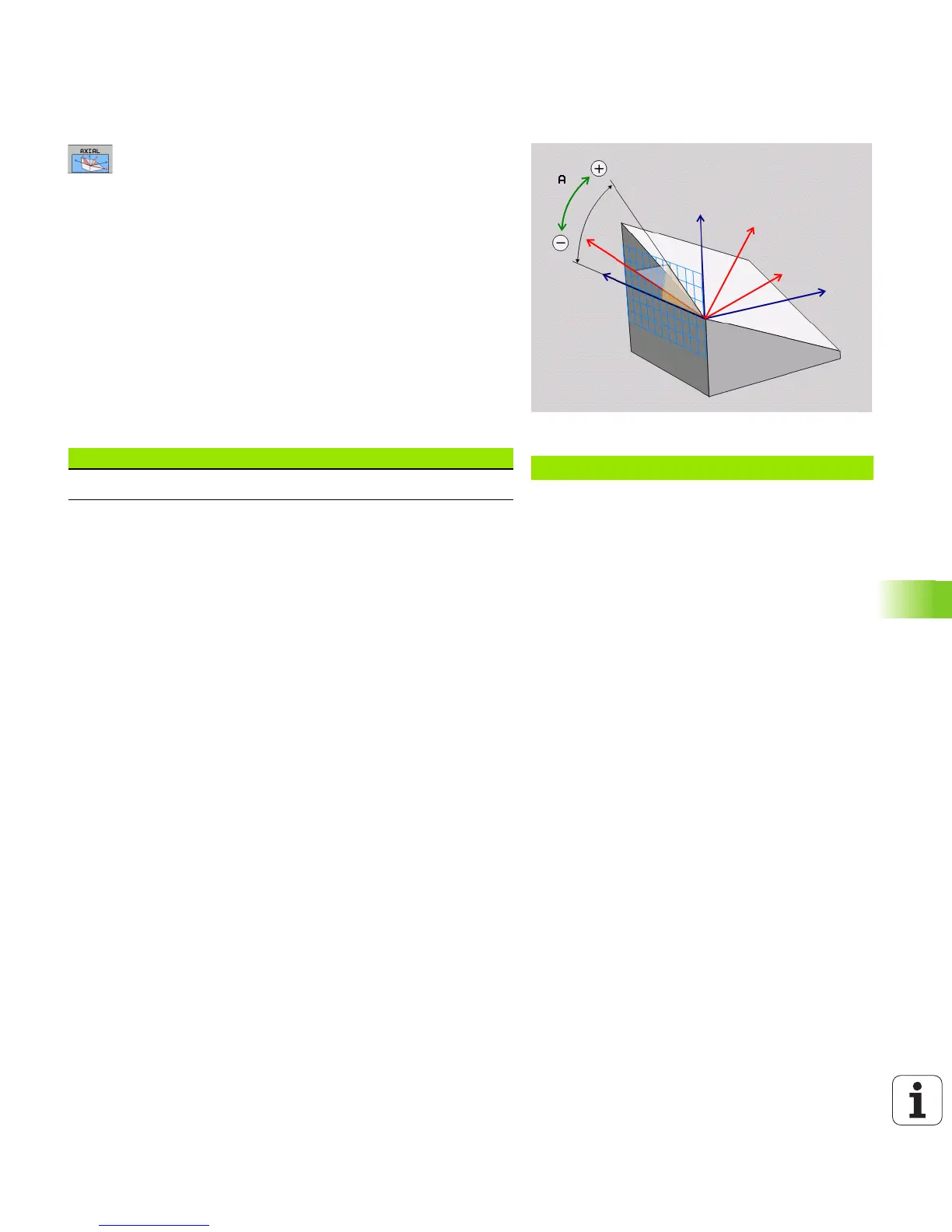

12.2 The PLANE Function: Tilting the Working Plane (Software Option 1)
Input parameters
U Axis angle A?: Axis angle to which the A axis is to
be tilted. If entered incrementally, it is the angle by
which the A axis is to be tilted from its current
position. Input range: –99999.9999° to +99999.9999°
U Axis angle B?: Axis angle to which the B axis is to be
tilted. If entered incrementally, it is the angle by
which the B axis is to be tilted from its current
position. Input range: –99999.9999° to +99999.9999°
U Axis angle C?: Axis angle to which the C axis is to be
tilted. If entered incrementally, it is the angle by
which the C axis is to be tilted from its current
position. Input range: –99999.9999° to +99999.9999°
U Continue with the positioning properties (see
“Specifying the positioning behavior of the PLANE
function” on page 400)
Abbreviations used
Example: NC block
5 PLANE AXIAL B-45 .....
Abbreviation Meaning
AXIAL
