HEIDENHAIN iTNC 530 405
12.3 Inclined-Tool Machining in the Tilted Plane
12.3 Inclined-Tool Machining in the
Tilted Plane
Function
In combination with M128 and the new PLANE functions, inclined-tool
machining in a tilted machining plane is now possible. Two
possibilities are available for definition:
îš„ Inclined-tool machining via incremental traverse of a rotary axis
îš„ Inclined-tool machining via normal vectors

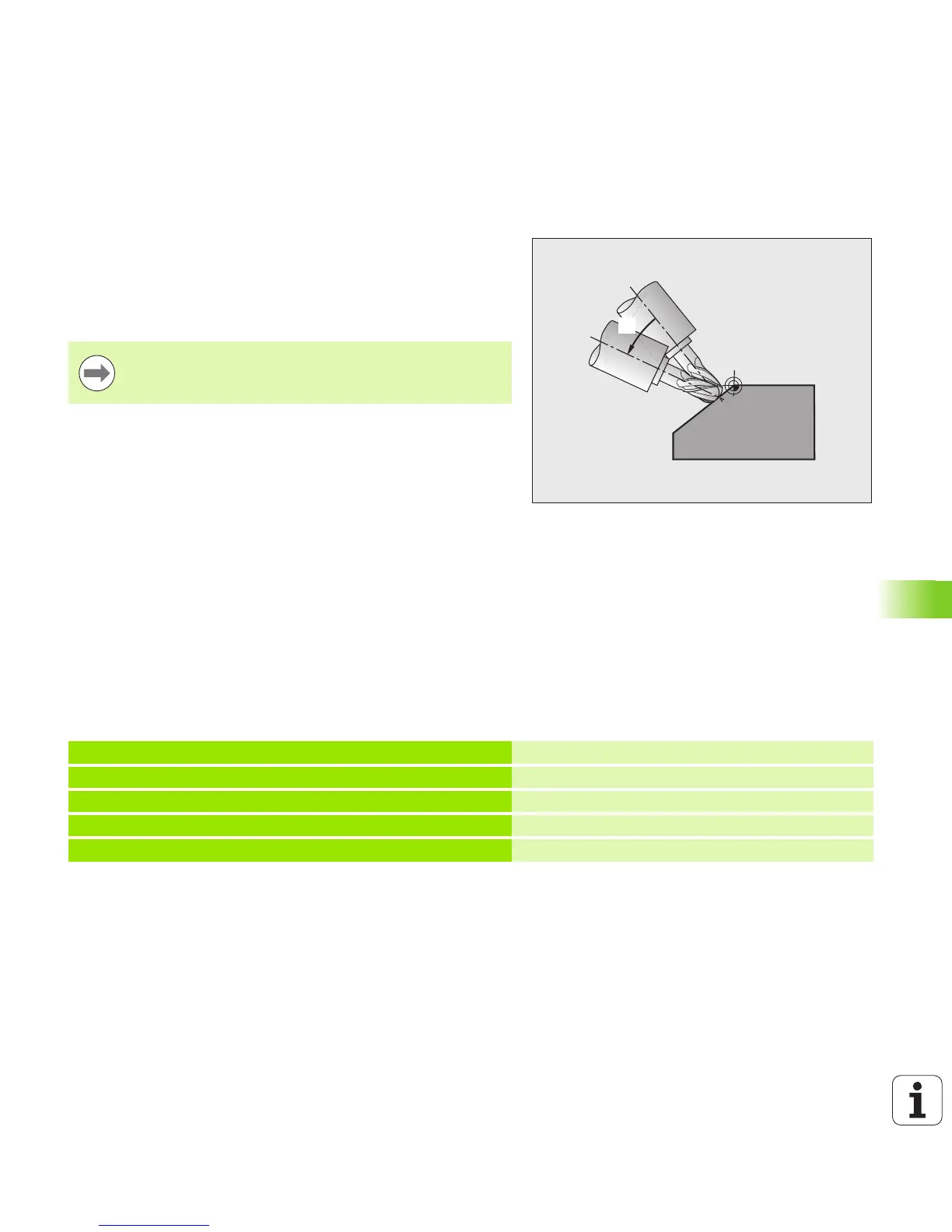

Inclined-tool machining via incremental traverse
of a rotary axis
U Retract the tool
U Activate M128
U Define any PLANE function; consider the positioning behavior
U Via a straight-line block, traverse to the desired incline angle in the
appropriate axis incrementally
Example NC blocks:
Inclined-tool machining in a tilted machining plane only
functions with spherical cutters.
...
N12 G00 G40 Z+50 M128 *
Position at clearance height, activate M128
N13 PLANE SPATIAL SPA+0 SPB-45 SPC+0 MOVE ABST50 F900 *
Define and activate the PLANE function
N14 G01 G91 F1000 B-17 *
Set the incline angle
...
Define machining in the tilted working plane
