HEIDENHAIN iTNC 530 73
2.4 Status Displays

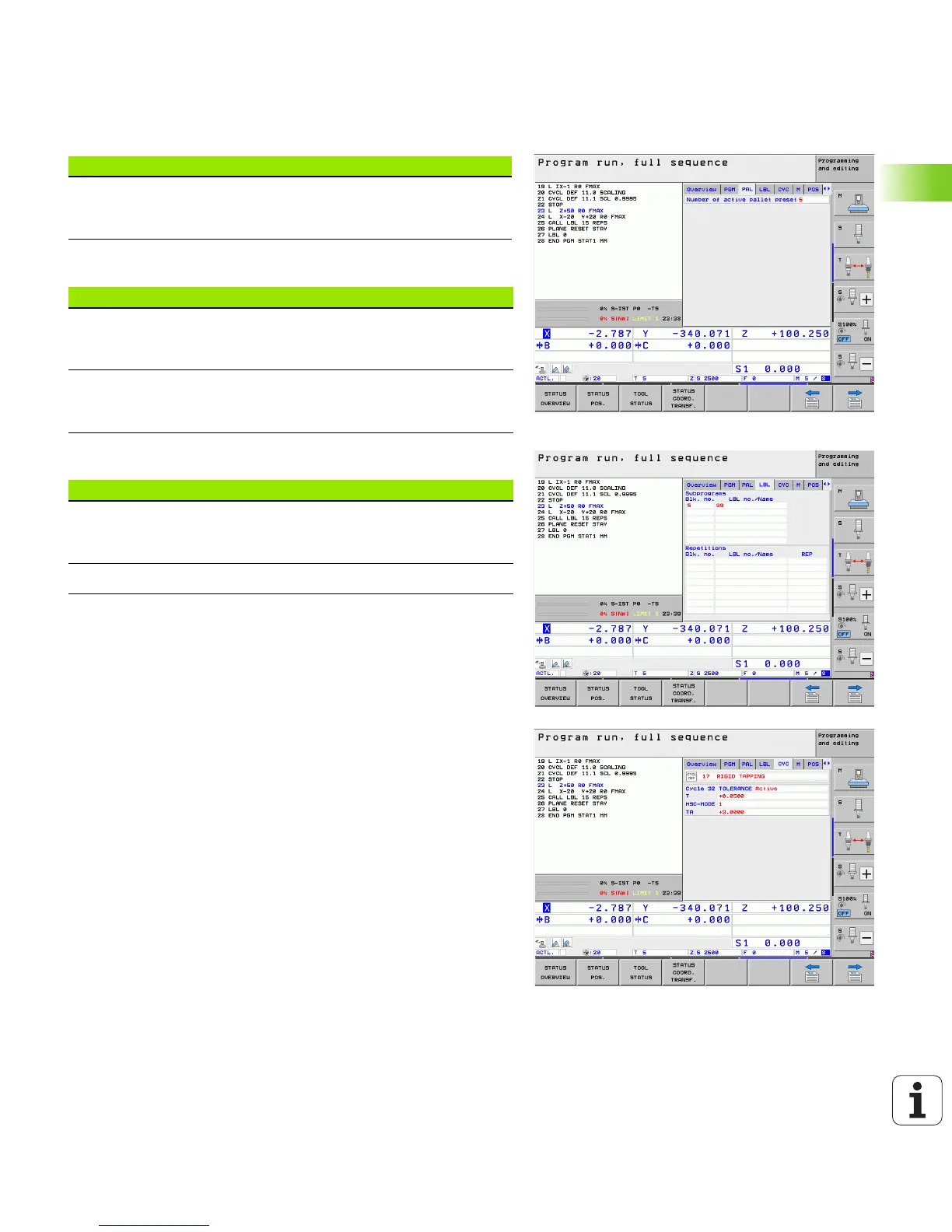

General pallet information (PAL tab)
Program section repeat/Subprograms (LBL tab)
Information on standard cycles (CYC tab)
Soft key Meaning
No direct
selection
possible
Number of the active pallet preset
Soft key Meaning
No direct
selection
possible
Active program section repeats with block
number, label number, and number of
programmed repeats/repeats yet to be run
Active subprogram numbers with block number in
which the subprogram was called and the label
number that was called
Soft key Meaning
No direct
selection
possible
Active machining cycle
Active values of Cycle G62 Tolerance
