d) Further secure the enclosure by installing the provided shipping screws into the bottom holes as seen
in the following image.

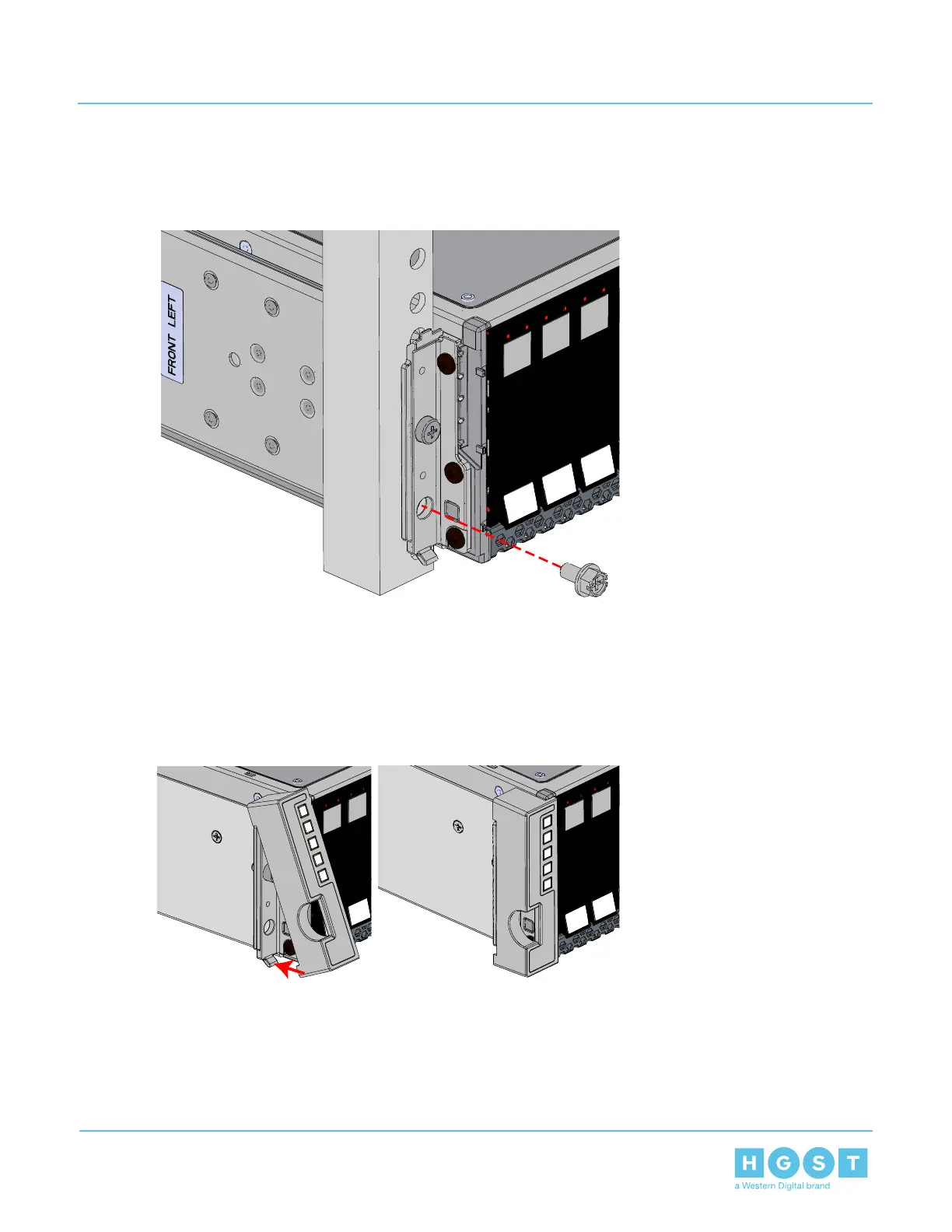

Figure 156: Installing the Shipping Screws
22. Install the Rack Ears onto the enclosure.
a) Locate the rack ear intended to be installed over the LEDs. This rack ear will contain five LEDs and
will be installed onto the right side of the enclosure.
b) Place the top of the rack ear on the tab of the sheet metal bracket and rotate toward the bottom tab.
Figure 157: Rack Ear Install
c) Lightly pull on the rack ear to ensure that it fully latched on the bottom tab.
d) Repeat the previous procedure to install the remaining rack ear.
23. From the rear of the enclosure, connect the cables to the enclosure.
a) Connect the Ethernet cables into the 1GbE BMC Ethernet ports on the Compute Canisters.
b) Connect the 10 GbE cables into the RJ45 ports.
104
3 Part Replacement
User Guide 3.11 Chassis Replacement
