HGST Ultrastar Serv24-HA User Manual

1
2
3
4
Pin
Pin

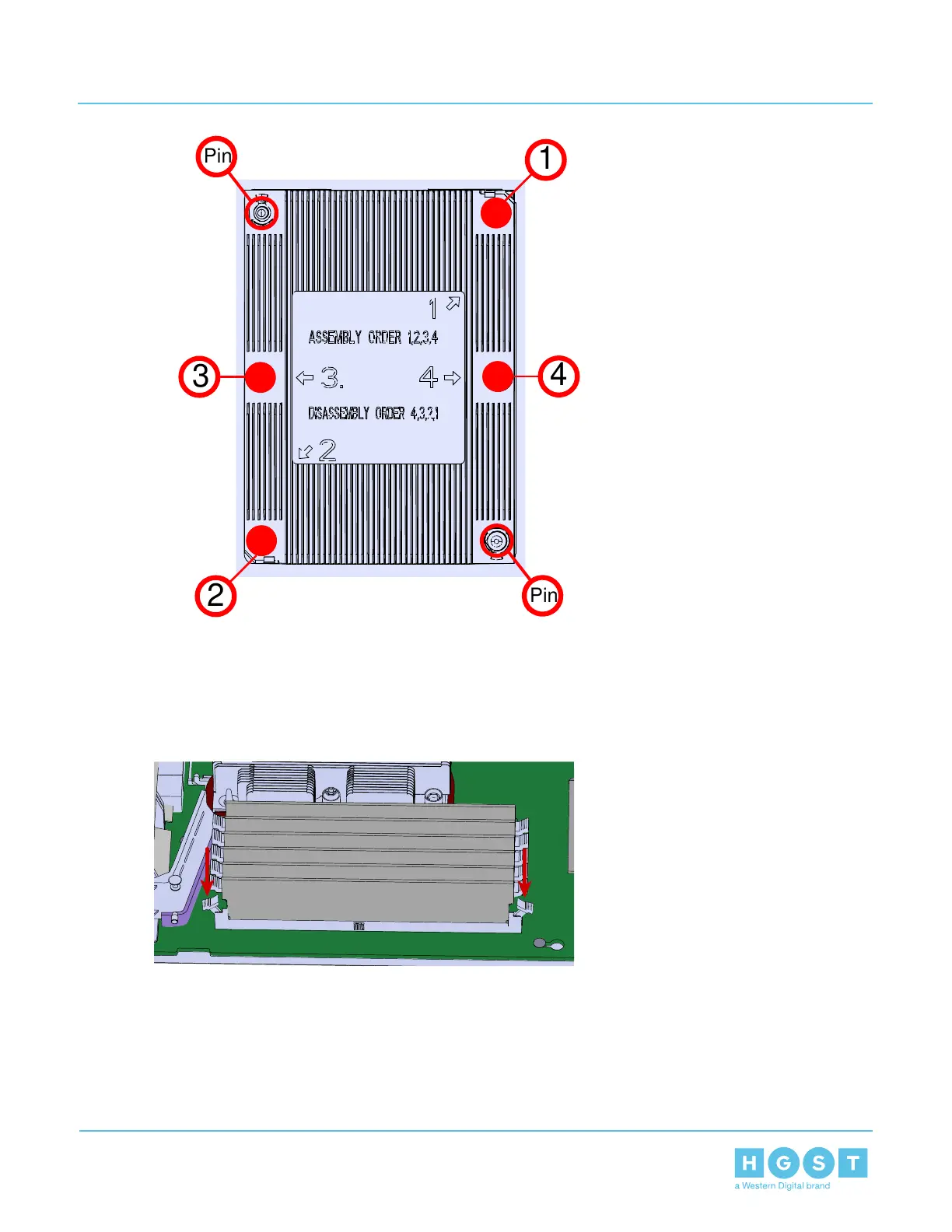

7. Repeat the previous step to install the remaining heat sink containing the CPU.
8. Uninstall the DIMM from the Compute Canister.
a) Pull connector tabs outward with even pressure until the DIMM pops out of the connector.
Figure 167: Unlocking the DIMM
111
3 Part Replacement
User Guide 3.12 Compute Canister Replacement
