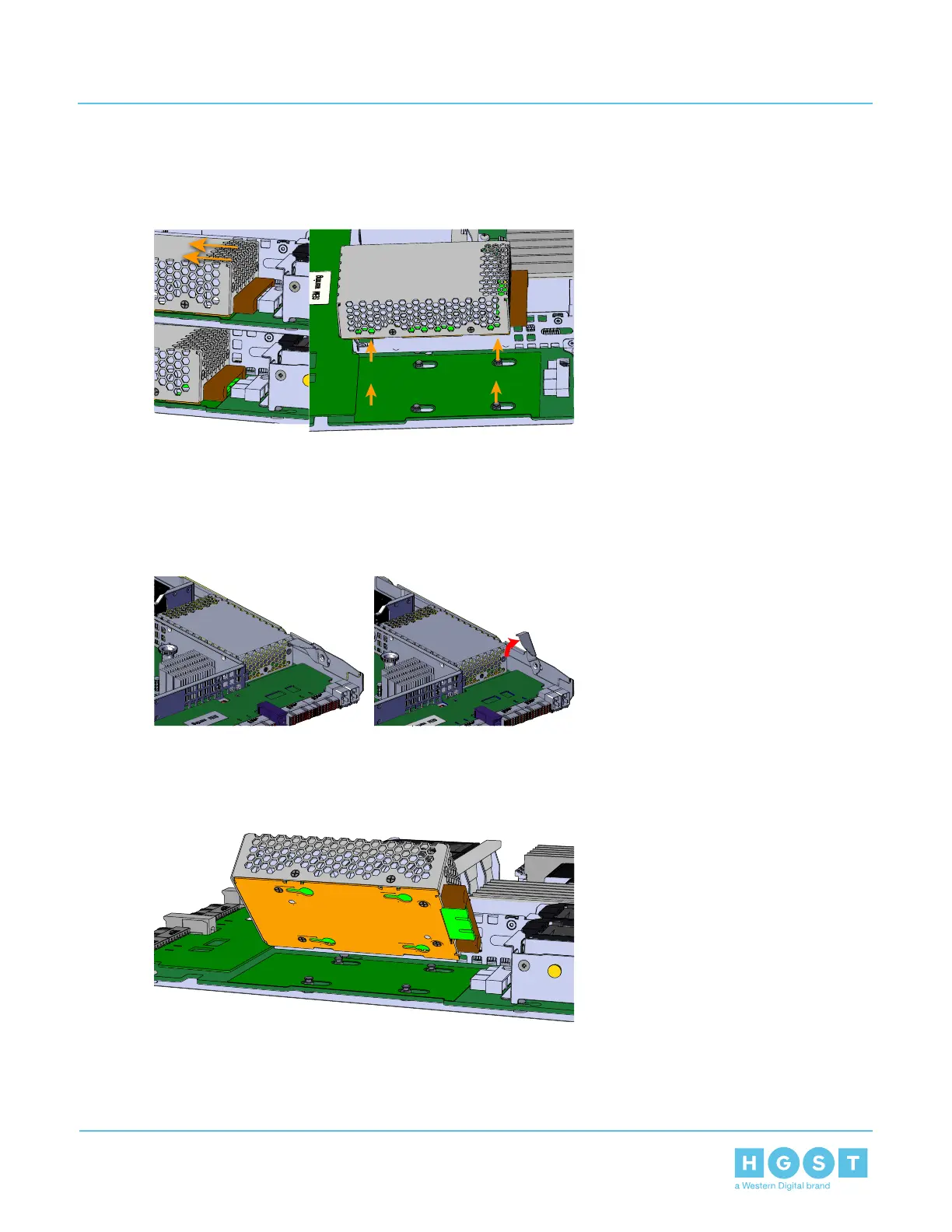

16. Unlatch the Battery Backup from the canister by sliding it backwards and lifting it out of the Compute
Canister.
Figure 172: Removing the Battery Backup
17. Identify the location of the Battery Backup on the replacement Compute Canister.
18. Install the Battery Backup into the Compute Canister.
a) Rotate the Battery Backup latch up and out until fully open.
Figure 173: Open the Battery Backup Latch
b) Line up the keyholes on the bottom of the Battery Backup with the keys on the Compute Canister.
Figure 174: Battery Backup Keyholes
114
3 Part Replacement
User Guide 3.12 Compute Canister Replacement
