b) Remove the drive from the drive slot by pulling it out of the connector.

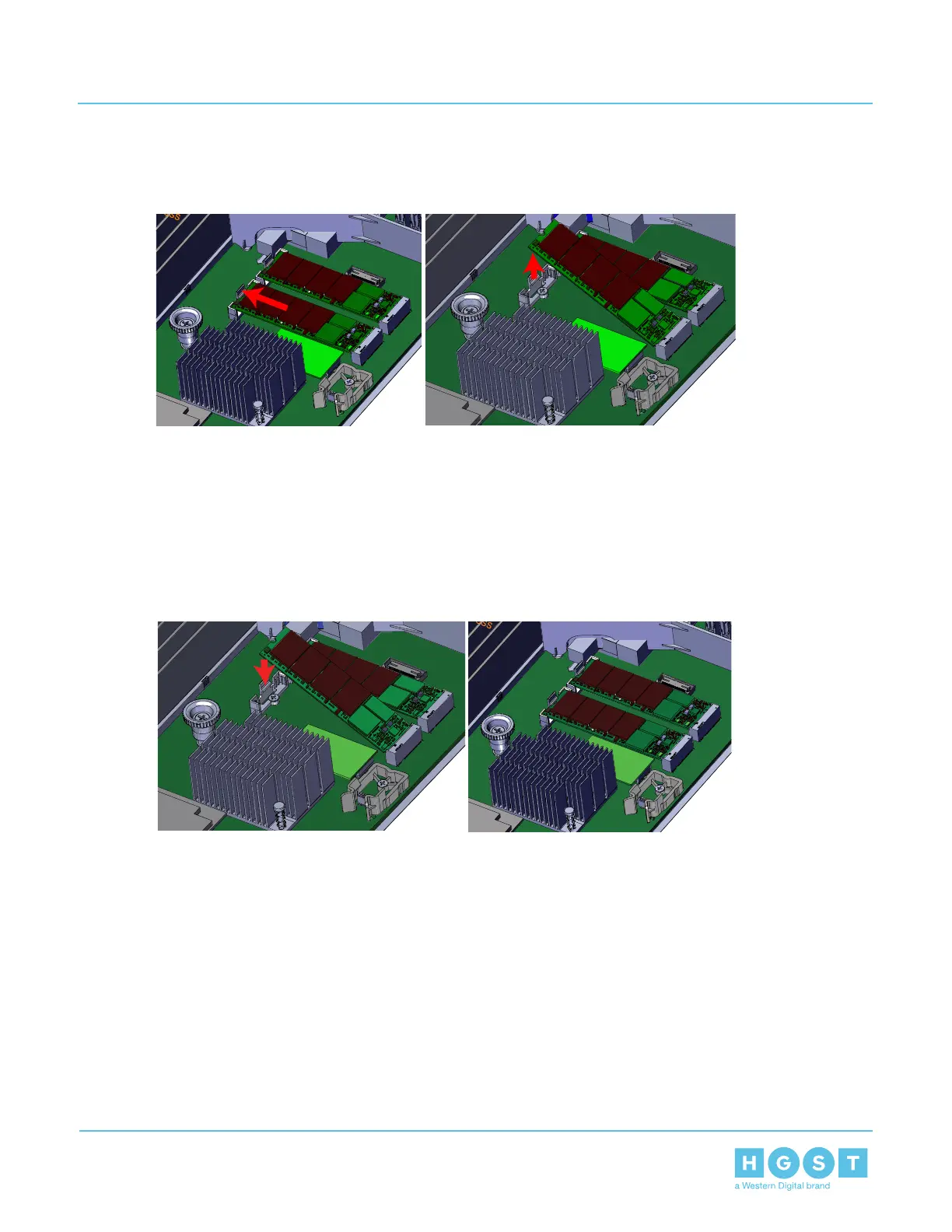

Figure 170: M.2 Boot Drive Removal
13. Repeat the previous step to uninstall the remaining M.2 boot drive.
14. Identify the location of the first M.2 boot drive on the replacement Compute Canister.
15. Install the M.2 boot drive.
a) Slide the card edge of the drive into the connector with even pressure.
b) Slide the opposite end of the card edge into the release latch.
Figure 171: M.2 Boot Drive Installation
113
3 Part Replacement
User Guide 3.12 Compute Canister Replacement
