b) Carefully slide the Compute Canister into the slot with both latch handles in the open position until the
latch handles begin to engage.

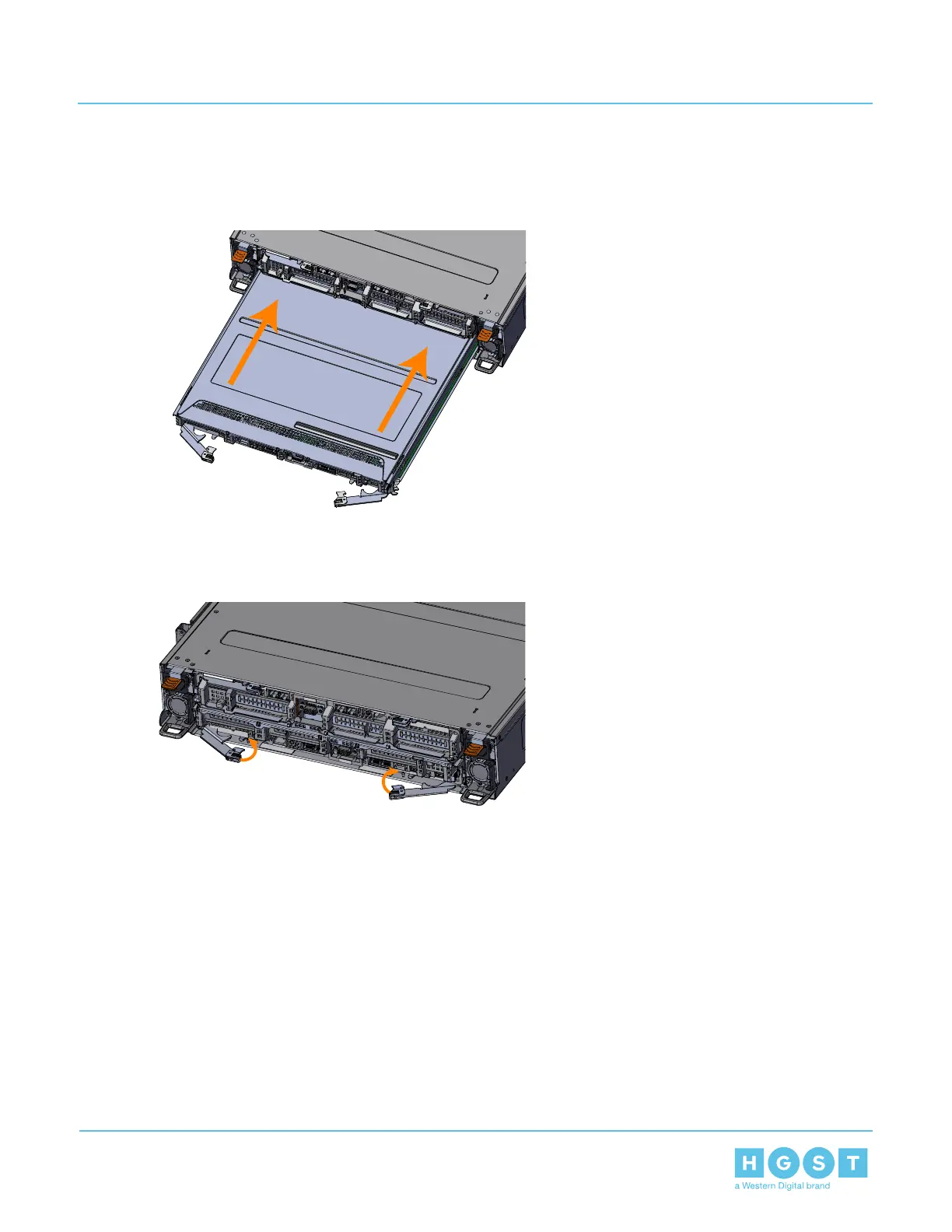

Figure 190: Installing the Compute Canister
c) Rotate the latch handles into the enclosure until the are fully engaged.
Figure 191: Latching the Compute Canister
9. Verify that the Battery Backup appears with no issues.
a) Open a browser and browse to the BMC IP Address of the Compute Canister.
122
3 Part Replacement
User Guide 3.13 (Optional) Battery Backup Replacement
