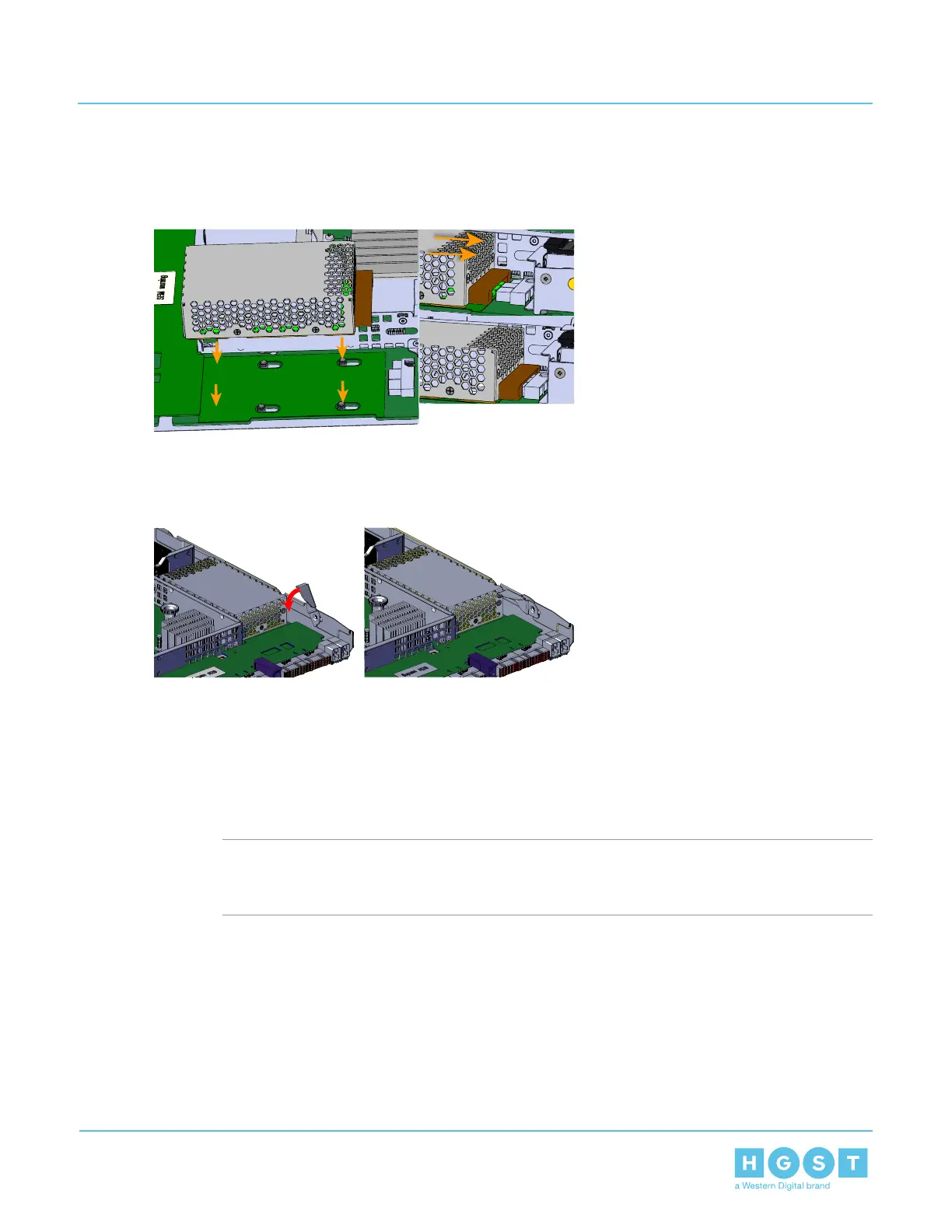

c) Seat the Battery Backup into the Compute Canister and slide the connector on the Battery Backup into
the connector on the Compute Canister.
Figure 188: Installing the Battery Backup
d) Rotate the Battery Backup latch until fully closed.
Figure 189: Close the Battery Backup Latch
7. Install the Compute Canister cover.
a) Align the cover over the Compute Canister and slide towards the front of the Compute Canister.
b) Verify the locks on the cover have engaged and the cover is secure.
8. Install the Compute Canister into the enclosure.
a) From the rear of the enclosure, line up the Compute canister with the empty canister slot. Ensure that
the Compute Canister is oriented correctly.
Note: The top Compute Canister is installed with the top cover facing toward the bottom of the
enclosure. The bottom Compute Canister is installed with the top cover facing the top of the
enclosure.
121
3 Part Replacement
User Guide 3.13 (Optional) Battery Backup Replacement
