a) Open a browser window and navigate to the Compute Canister BMC IP address.
b) Login to Web UI using the username and password.

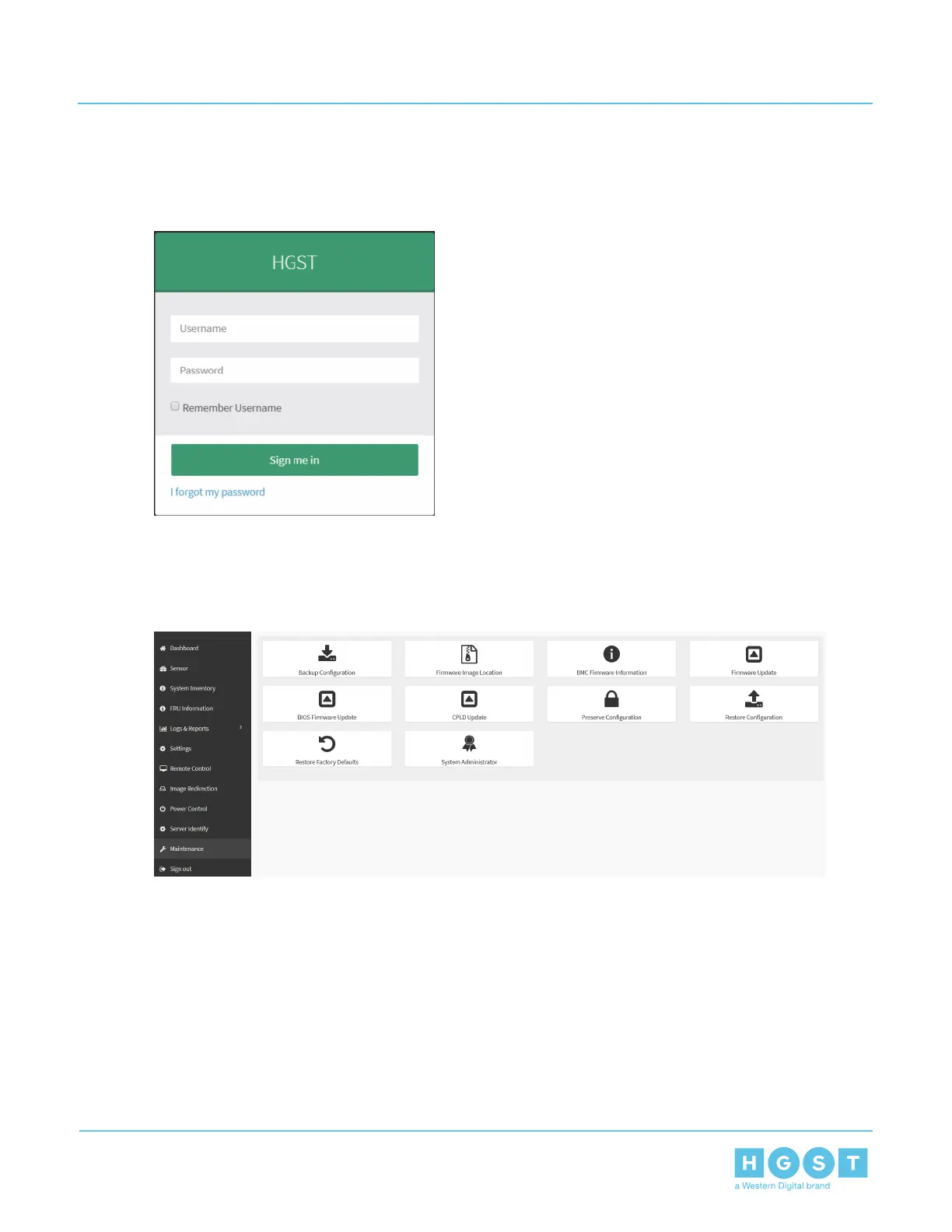

Figure 215: Log-in
Web UI will appear displaying the Dashboard Control Panel.
3. Navigate to Maintenance > Firmware Update using the Navigation menu.
Figure 216: Firmware Update
4. Select the checkbox next to Preserve all Configuration.
The Preserve Configuration table will turn gray to display that the configuration will be preserved.
138
4 System Management
User Guide 4.3 Web UI Overview
