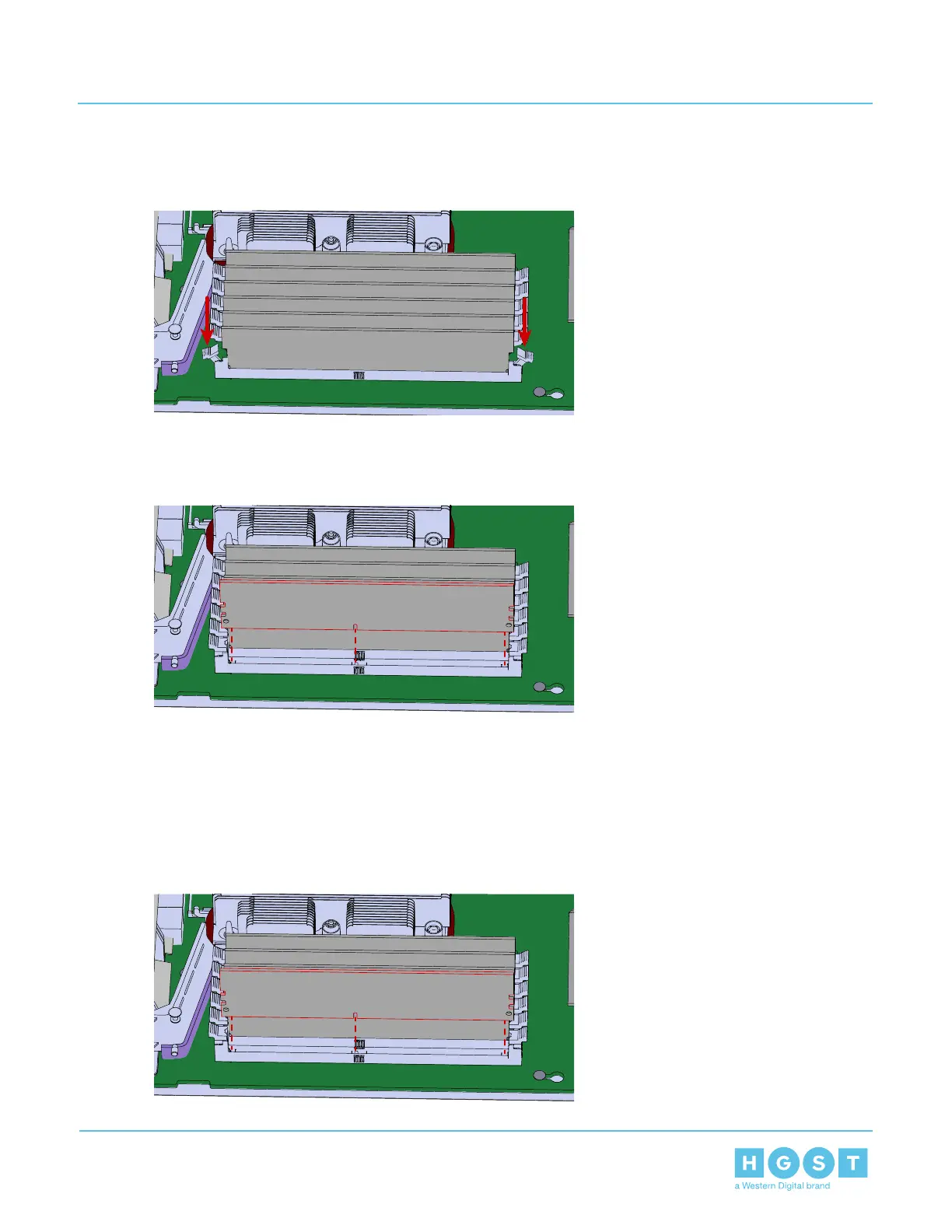

a) Pull connector tabs outward with even pressure until the DIMM pops out of the connector.
Figure 39: Unlocking the DIMM
b) Carefully remove the DIMM from the slot.
Figure 40: Uninstalling the DIMM
c) Take note of the location of each DIMM as it is removed to ensure that it is installed into the correct
location of the replacement Compute Canister.
5. Install the DIMM into the Compute Canister.
a) Slide the DIMM into the correct DIMM slot and carefully press down until seated.
b) Secure the DIMM by pressing the tabs inward on either side of the connector.
Figure 41: Installing the DIMM
41
3 Part Replacement
User Guide 3.3 DIMM Replacement
