6. Install the Compute Canister cover.
a) Align the cover over the Compute Canister and slide towards the front of the Compute Canister.
b) Verify the locks on the cover have engaged and the cover is secure.
7. Install the Compute Canister into the enclosure.
a) From the rear of the enclosure, line up the Compute canister with the empty canister slot. Ensure that
the Compute Canister is oriented correctly.
Note: The top Compute Canister is installed with the top cover facing toward the bottom of the
enclosure. The bottom Compute Canister is installed with the top cover facing the top of the
enclosure.
b) Carefully slide the Compute Canister into the slot with both latch handles in the open position until the
latch handles begin to engage.

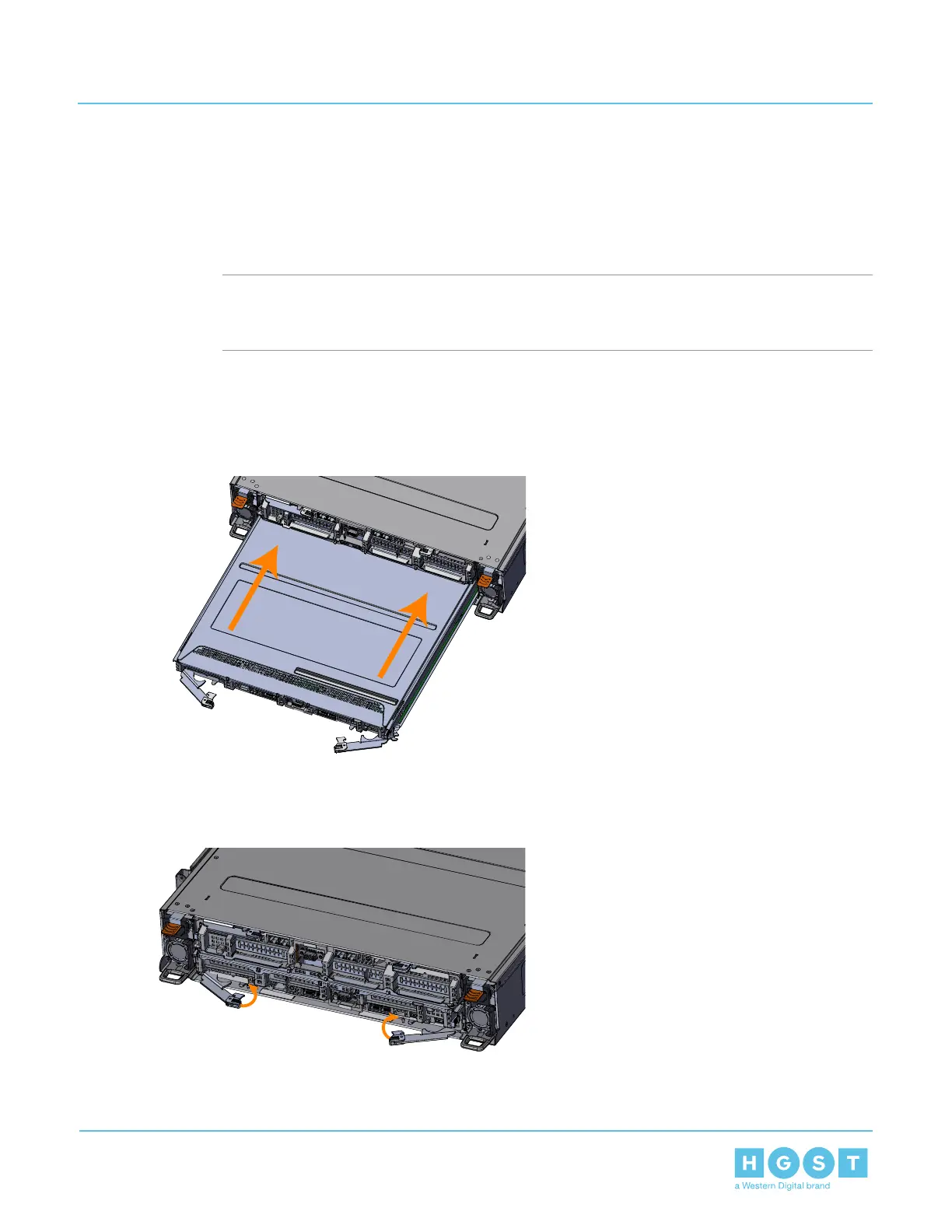

Figure 42: Installing the Compute Canister
c) Rotate the latch handles into the enclosure until the are fully engaged.
Figure 43: Latching the Compute Canister
8. Verify that the DIMM appears with no issues.
a) Open a browser and browse to the BMC IP Address of the Compute Canister.
42
3 Part Replacement
User Guide 3.3 DIMM Replacement
