HGST Ultrastar Serv24-HA User Manual

b) The Heat Sink must be removed by loosening the Torx T30 screws in a specific order. Use the following
diagram to determine the specific order.

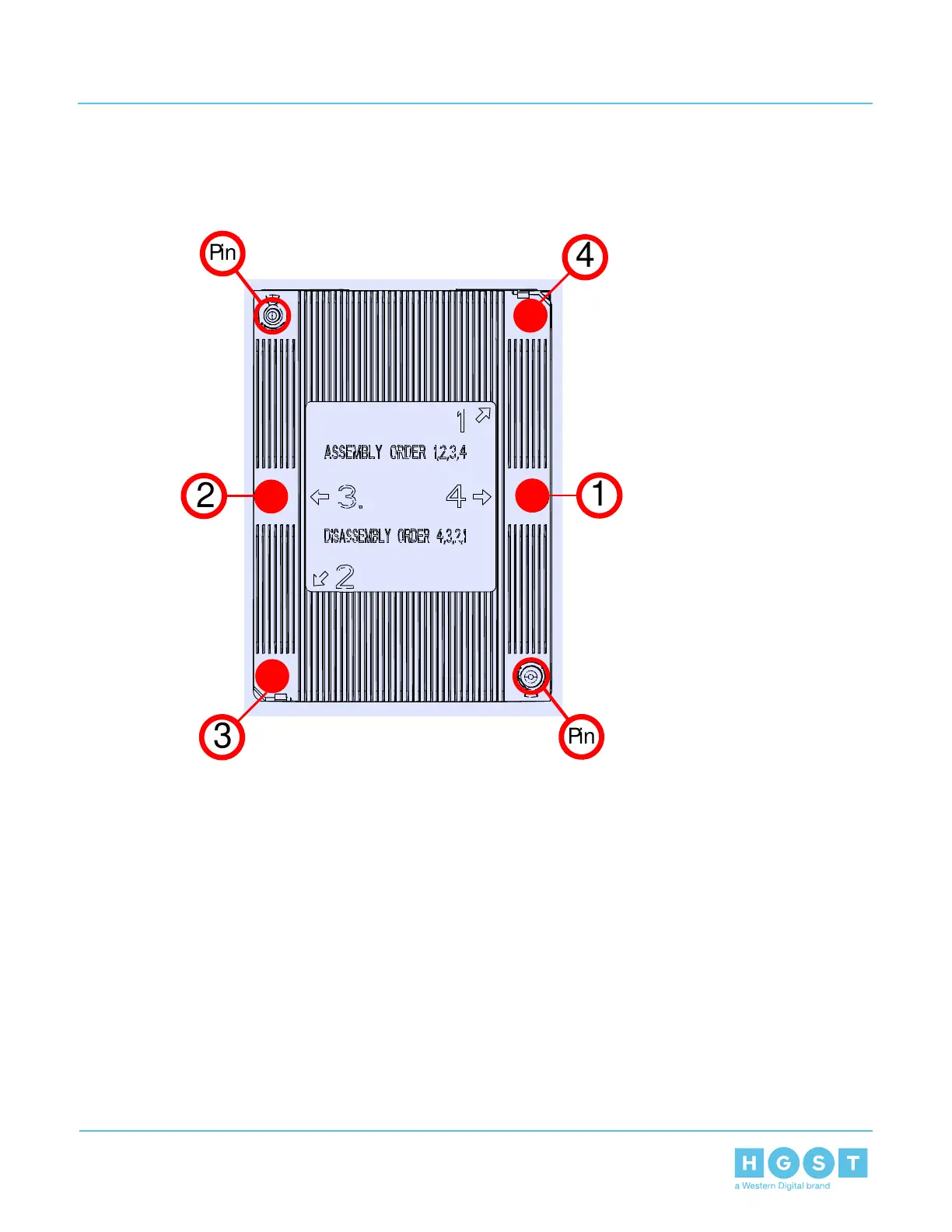

Figure 50: Heat Sink Removal Order
4
3
2
1
Pin
Pin
46
3 Part Replacement
User Guide 3.4 CPU and Heat Sink Module Replacement
