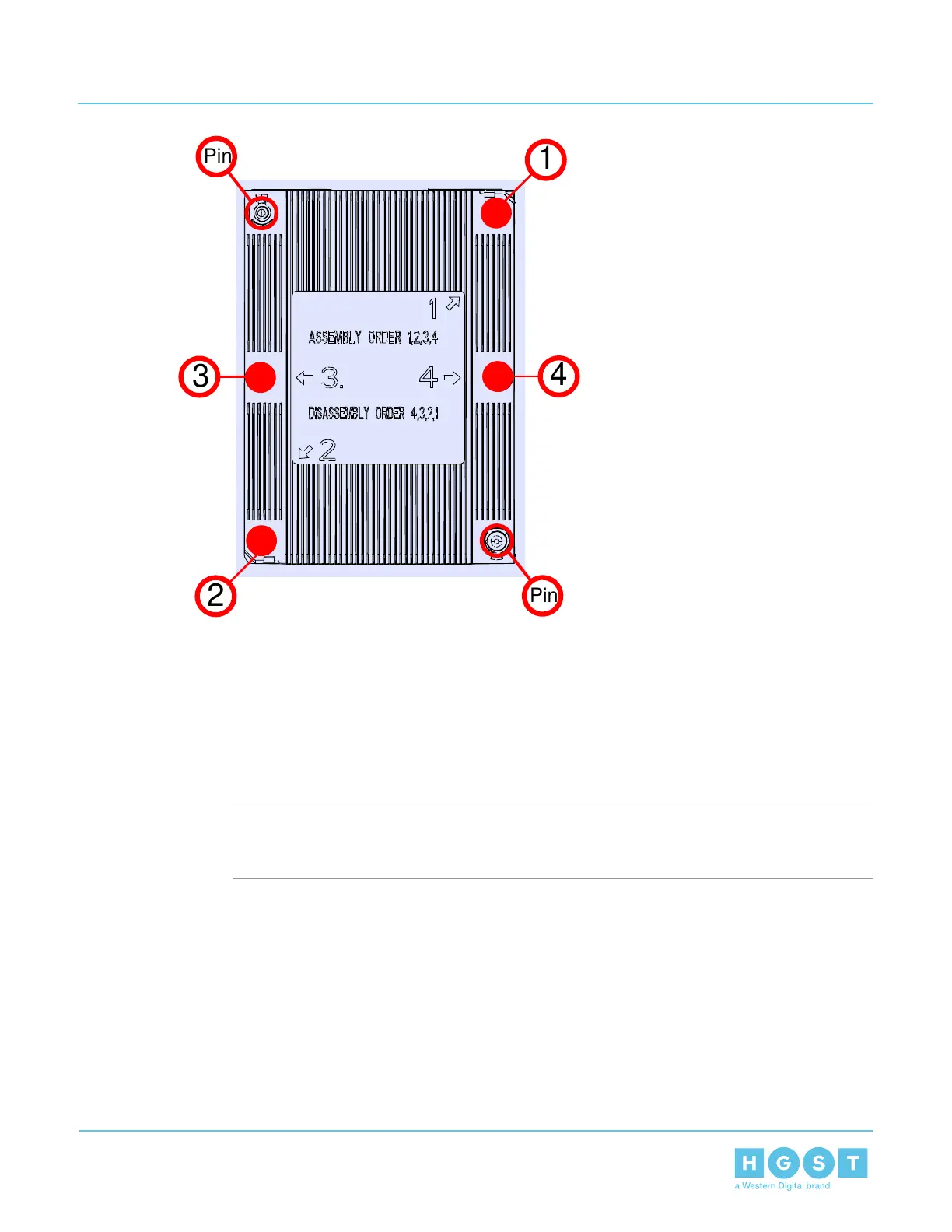

9. Repeat the previous step to install the remaining heat sink containing the CPU.
10. Install the Compute Canister cover.
a) Align the cover over the Compute Canister and slide towards the front of the Compute Canister.
b) Verify the locks on the cover have engaged and the cover is secure.
11. Install the Compute Canister into the enclosure.
a) From the rear of the enclosure, line up the Compute canister with the empty canister slot. Ensure that
the Compute Canister is oriented correctly.
Note: The top Compute Canister is installed with the top cover facing toward the bottom of the
enclosure. The bottom Compute Canister is installed with the top cover facing the top of the
enclosure.
59
3 Part Replacement
User Guide 3.5 Heat Sink Replacement
