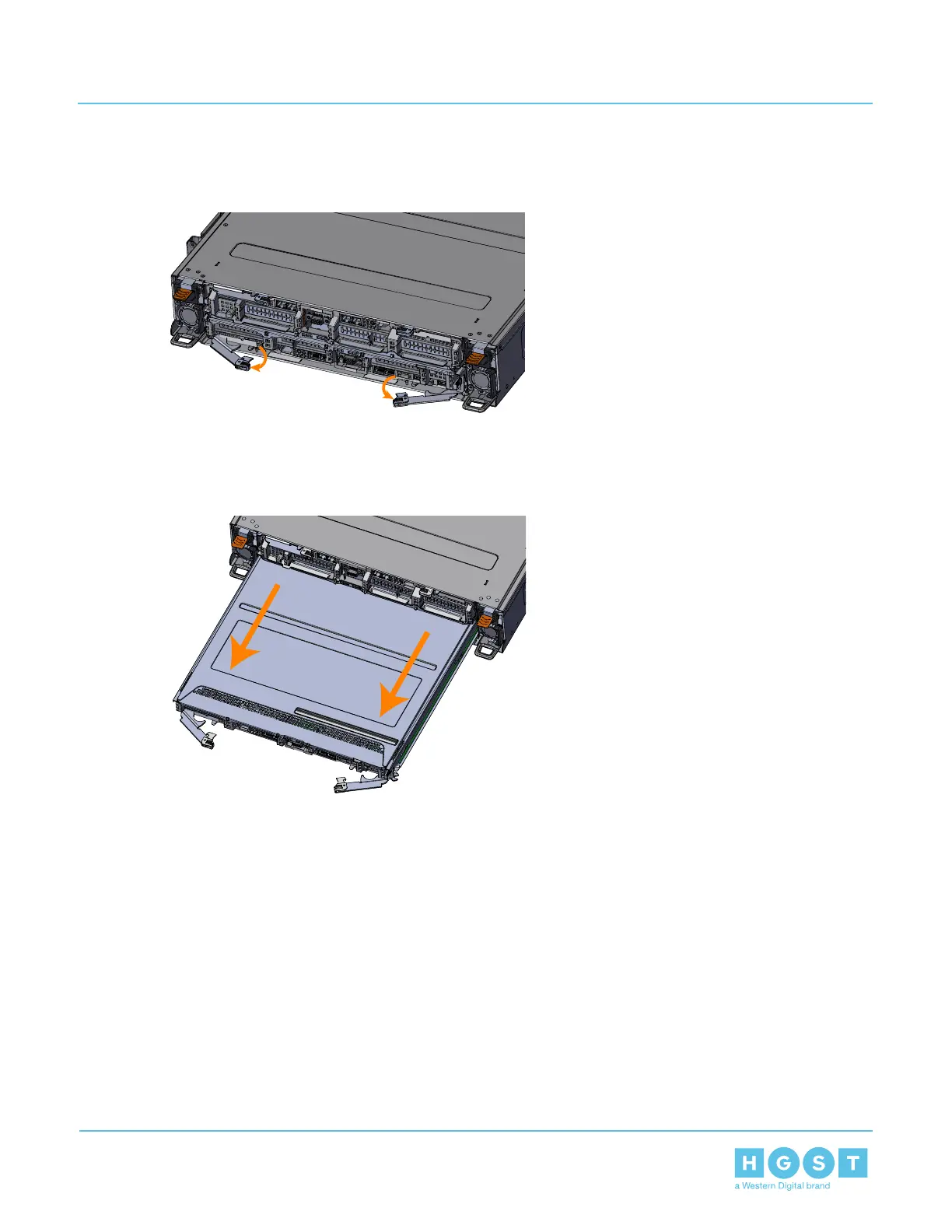

b) Unlatch the Compute Canister by pulling both of the handles out of the chassis.
Figure 75: Unlatching the Compute Canister
c) Remove the Compute Canister by grasping the edges of the canister and pulling it clear of the enclosure.
Figure 76: Uninstalling the Compute Canister
3. Uninstall the Compute Canister cover.
a) Unlock the Compute Canister cover by pressing the two lock buttons and slide the cover towards the
rear of the Compute Canister.
b) Remove the cover by lifting the cover off of the Compute Canister.
4. Uninstall the M.2 boot drive from the Compute Canister.
a) Press the M.2 boot drive release latch to unseat the drive.
63
3 Part Replacement
User Guide 3.6 M.2 Boot Drive Replacement
